Ductwork Installation
Note: Skip this step if installing recirculating kit.
14. Use 6” round pipe to connect the plastic exhaust on the hood to the ductwork above.
15. Use duct tape to make all joints secure and air tight.
Final Assembly
16. Remove the temporary screws and slide the outer duct cover downward so that it sits
properly on the hood.
17. NOTE: Be careful when using electrical screwdriver, damage to the hood may occur.
Secure the duct cover to hood with four (4x8 mm) screws (provided) as shown in Figure 8.
18. Turn power ON in control panel. Check all lights and fan operation.
19. Make sure to leave this manual for the homeowner.

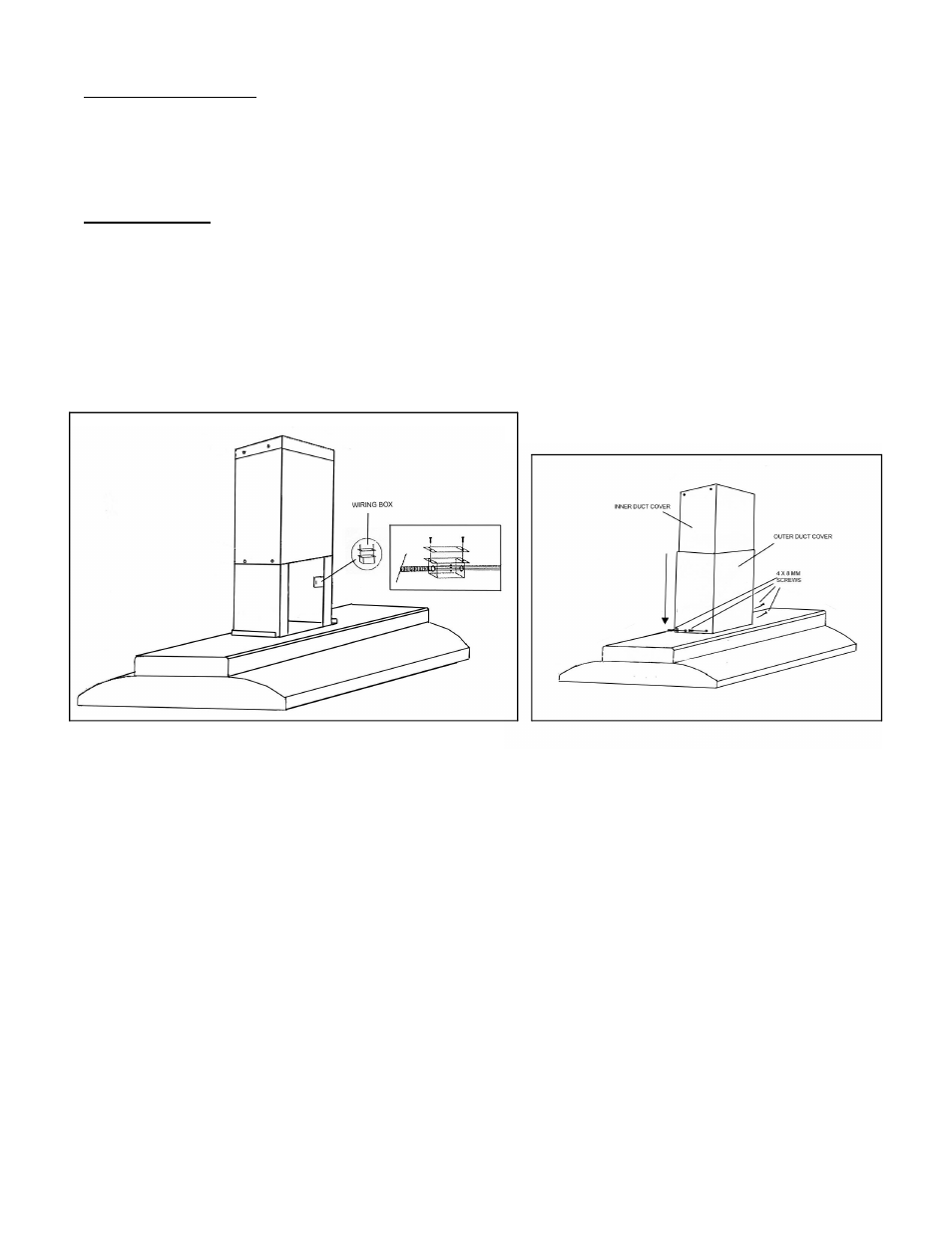

Figure 7 Figure 8
