Page 8
6. Components, Operating Elements, Connections and
Displays
Front of the Device
q
Power button (On/ Off)
w
Memory card slot flap
e
Disc tray
r
Display
t
button (Open/Close)
y
/ button (Play/Pause)
u
button (Stop)
i
button (Skip Forward)
o
button (Skip Backward)
a
button (Search Forward)
s
button (Search Backward)
Information on the Display
q
Display "DVD"
w
Display "DTS"
e
Display "VCD"/"SVCD"
r
Display "Dolby Digital"
t
Display Angel Camera Symbol
y
Display "MP3"
u
Display title/chapter/file
i
Display "Pause"
o
Display "Repeat"
a
Display "Repeat All"
s
Display "Play"
d
Playback symbol
Rear of the Device
d
RCA socket "Center“
f
RCA socket "SL"
g
RCA socket "FL"
h
Socket "Optical"
j
Socket "Euro Scart"
k
Power cord with plug
l
Socket "Pr/Cr"
;
Socket "Pb/Cb"
2)
Socket "Y"
2!
Socket "Coaxial"
2@
RCA socket "FR"
2#
RCA socket "SR"
2$
RCA socket "Subwoofer"
2%
RCA socket "Video"
2^
Socket "S-Video"
8
q
i
w
e
t
r
yu
o
a
s
q
e
w
r
t
y
s a oi
u
d
d f g
h
j
k
l
1(
2)
2!
2@
2#
2$
2%
2^

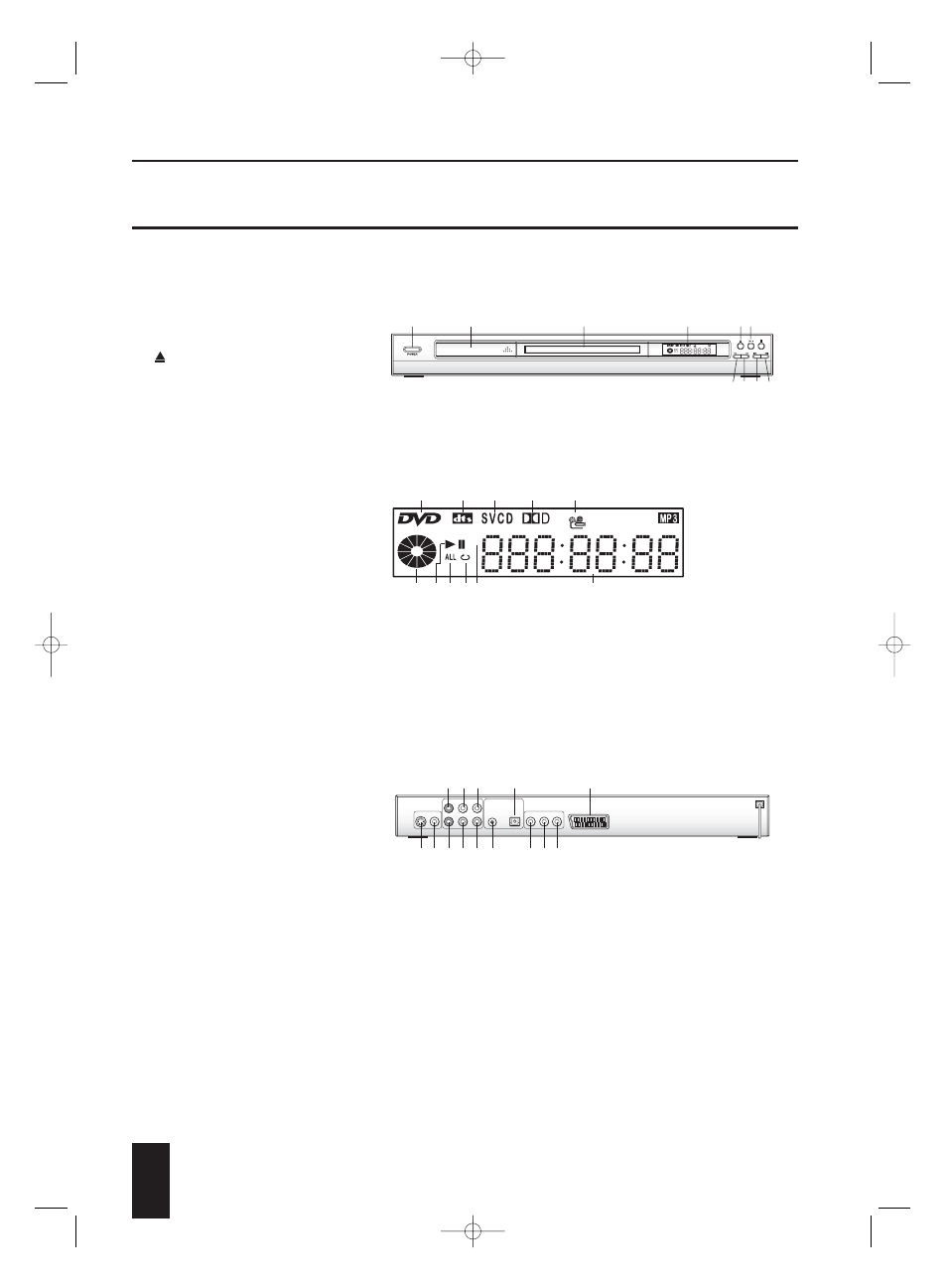

Fig. 1 Front of device
Fig. 1.1 Information on the display
Fig. 1.2 Rear of the device
