OPERATION INSTRUMENTS
»
ENGLISH
14
6

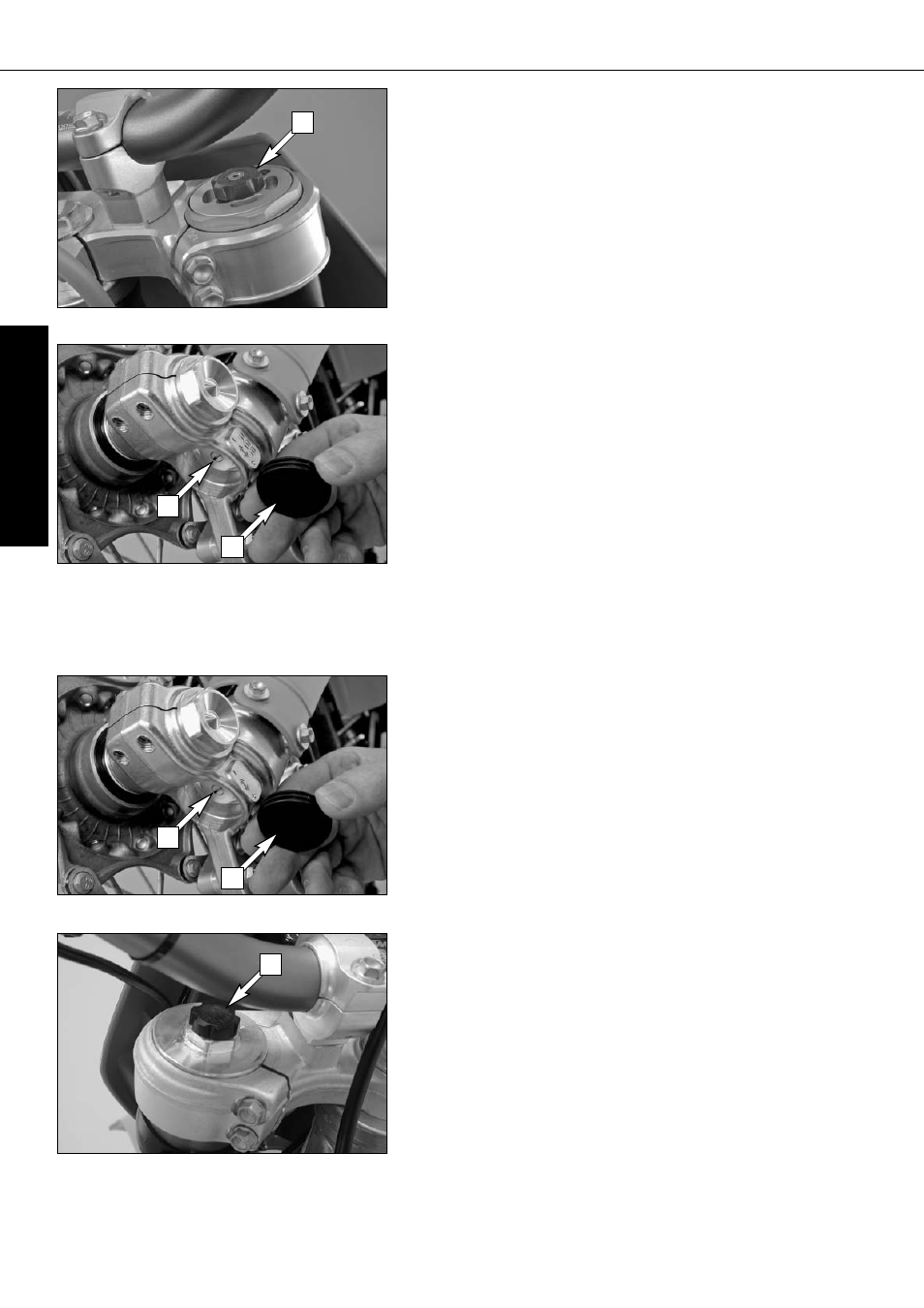

Compression damping of fork (XCF-W, EXC-F, EXC-F Six Days)
Hydraulic compression damping determines the reaction when the fork is com-
pressed. The degree of compression can be adjusted with adjusting
screws at the bottom of the fork legs.Remove the protecting cap [4].
Turn the adjusting screws [5] clockwise to increase damping, turn it counter-
clockwise to reduce damping during compression.
STANDARD ADJUSTMENT
– turn adjusting screw clockwise as far as it will go
– turn it back by as many clicks as are specified for the relevant type of fork
WP 14.18.7D.04 . . . . . . 22 clicks WP 14.18.7D.34 . . . . . .24 clicks
Rebound damping of fork (XCF-W, EXC-F, EXC-F Six Days)
Hydraulic rebound damping determines the reaction when the fork is
rebound. By turning the adjusting screw [6], the degree of damping of the
rebound can be adjusted. Turn the knob clockwise to increase damping, turn
it counterclockwise to reduce damping during rebounding.
STANDARD ADJUSTMENT
– turn adjusting screw clockwise as far as it will go
– turn it back by as many clicks as are specified for the relevant type of fork
WP 14.18.7D.04 . . . . . . 20 clicks WP 14.18.7D.34 . . . . . .22 clicks
Compression damping of fork (SX-F, XC-F)
Hydraulic compression damping determines the reaction when the fork is com-
pressed. The degree of compression can be adjusted with adjusting
screws at the top of the fork legs.
Turn the adjusting screws [1] clockwise to increase damping, turn it counter-
clockwise to reduce damping during compression.
STANDARD ADJUSTMENT
– turn adjusting screw clockwise as far as it will go
– turn it back by as many clicks as are specified for the relevant type of fork
WP 14.18.7D.03 . . . . . . 14 clicks WP 14.18.7D.28 . . . . . . 20 clicks
Rebound damping of fork (SX-F, XC-F)
Hydraulic rebound damping determines the reaction when the fork is
rebound. Remove the protecting cap [2].
By turning the adjusting screw [3], the degree of damping of the rebound can
be adjusted. Turn the knob clockwise to increase damping, turn it counter-
clockwise to reduce damping during rebounding.
STANDARD ADJUSTMENT
– turn adjusting screw clockwise as far as it will go
– turn it back by as many clicks as are specified for the relevant type of fork
WP 14.18.7D.03 . . . . . . 21 clicks WP 14.18.7D.28 . . . . . . 21 clicks
