Kenwood KDC-3025 - Manual (Page 23)

ANT.
CONT
TEL MUTE
P.CONT
FRONT • L
FRONT • R
REAR • L
REAR • R
– +
FRONT
English | 23

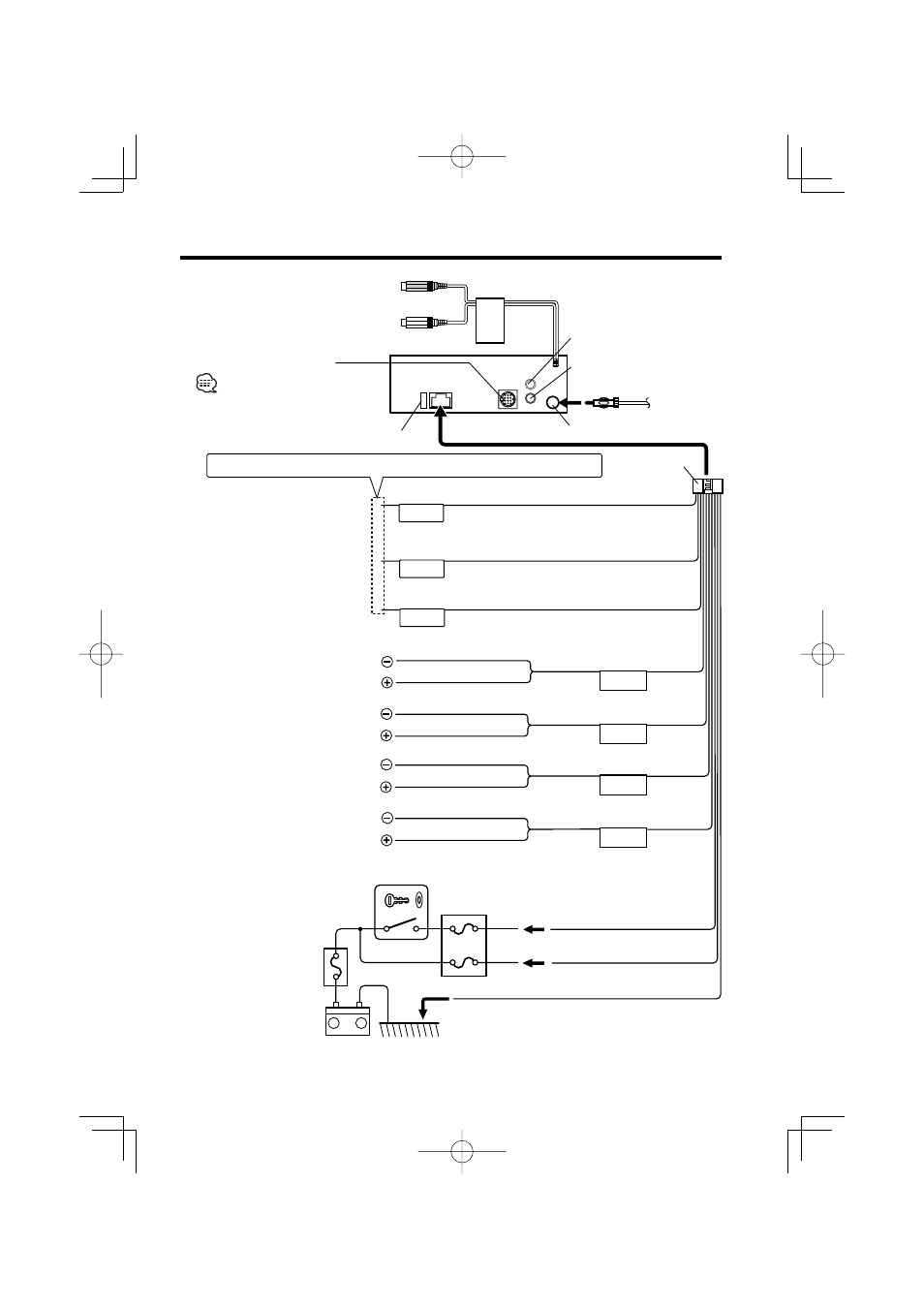

Connecting Wires to Terminals
FM/AM antenna input
Rear left output (White)
Rear right output (Red)
Fuse (10A)
Wiring harness
(Accessory
1)
Ignition wire (Red)
Battery wire (Yellow)
Ground wire (Black) - (To car chassis)
ACC
Car fuse box
If no connections are made, do not let the wire come out from the tab.
Front left output (White)
(KDC-3025 only)
Front right output (Red)
(KDC-3025 only)
To connect the Disc changer,
consult your Disc changer manual.
KENWOOD disc changer input
When using the optional power amplifier,
connect to its power control terminal.
Power control wire (Blue/White)
Motor antenna control wire (Blue)
Depending on what antenna you are using,
connect either to the control terminal
of the motor antenna, or to the power
terminal for the booster amplifier of the
film-type antenna.
To front left speaker
To front right speaker
To rear left speaker
To rear right speaker
White/Black
White
Gray/Black
Gray
Green/Black
Green
Purple/Black
Purple
Ignition key switch
Car fuse box
(Main fuse)
Battery
(Brown)
Not Used
