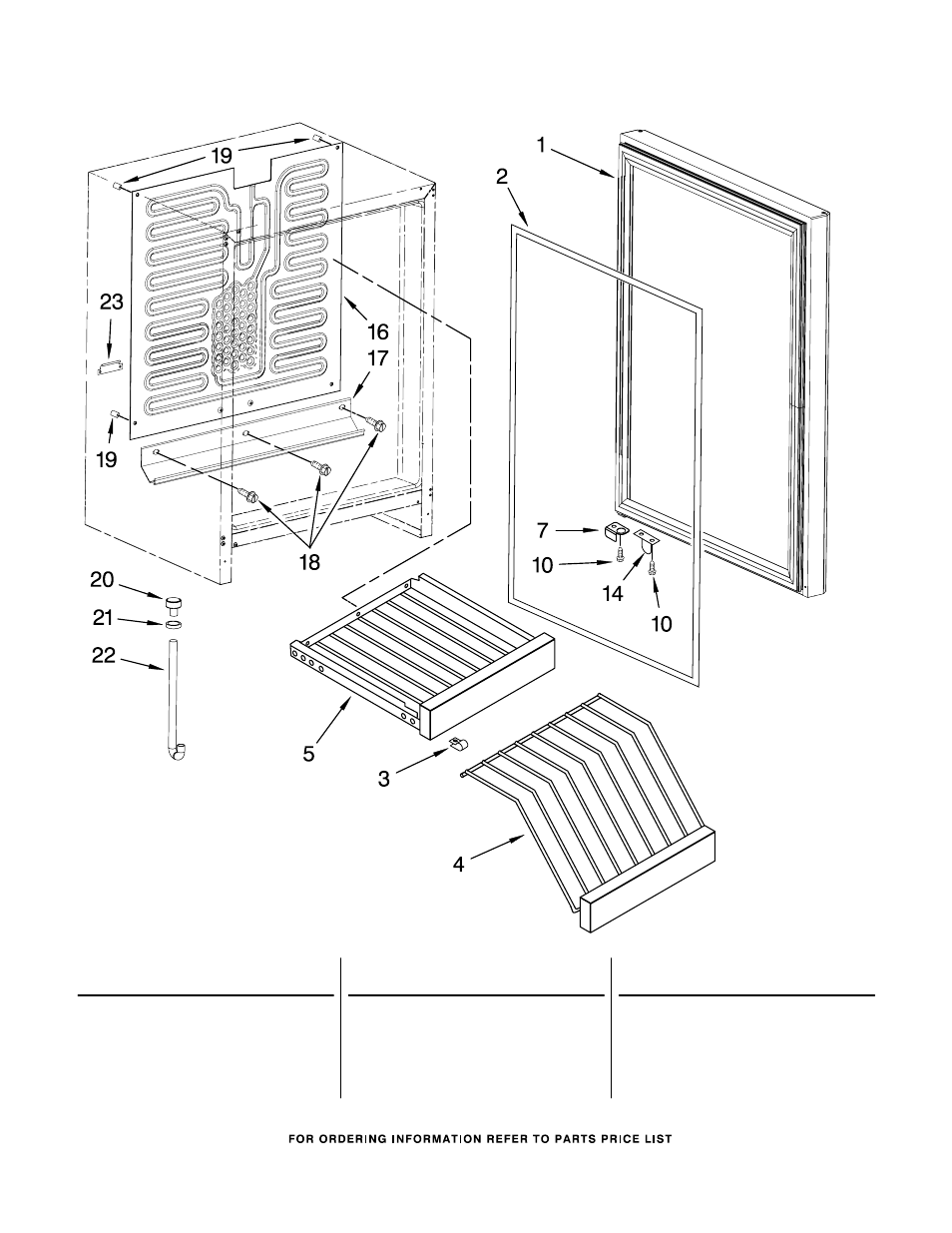

DOOR AND SHELF PARTS
2
For Model: KUWO244PBL00
(Black)
8199329
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
4344732 Door Assembly
(Includes Gasket)
2
4344696 Gasket, Door
3
4344660 Clip
4
4344692 Wine Display Rack
5
4344686 Shelf, Wine (5)
7
4344733 Plate, Pivot
10
4344710 Screw
14
4344709 Bracket, Door
Switch
16
4344679 Evaporator
17
4344718 Channel, Drain
18
4344719 Rivet, Push−In
19
4344720 Spacer
20
4344611 Funnel, Drain
21
4344722 Washer, Foam
22
4344723 Tube, Drain
23
4344724 Clamp
