29
TECHNICAL DATA
230 V AC - 50 Hz
Top conventional oven
– Top element
0.70 kW
– Bottom element 1.10 kW
– Grill element 2.10 kW
Bottom fan oven
– Fan element
2.50 kW
Vitroceramic hob
– Front left
1.70 kW
– Back left 1.20 kW
– Back right 2.10 kW
– Front right 1.20 kW
Maximum power rating
– Top oven
2.10 kW
– Bottom oven 2.50 kW
Oven lamp 0.015 kW
300 °C, miniature edison screw
Fan motor 0.025 kW
Maximum usable power
(diversity not applied)
10.86 kW

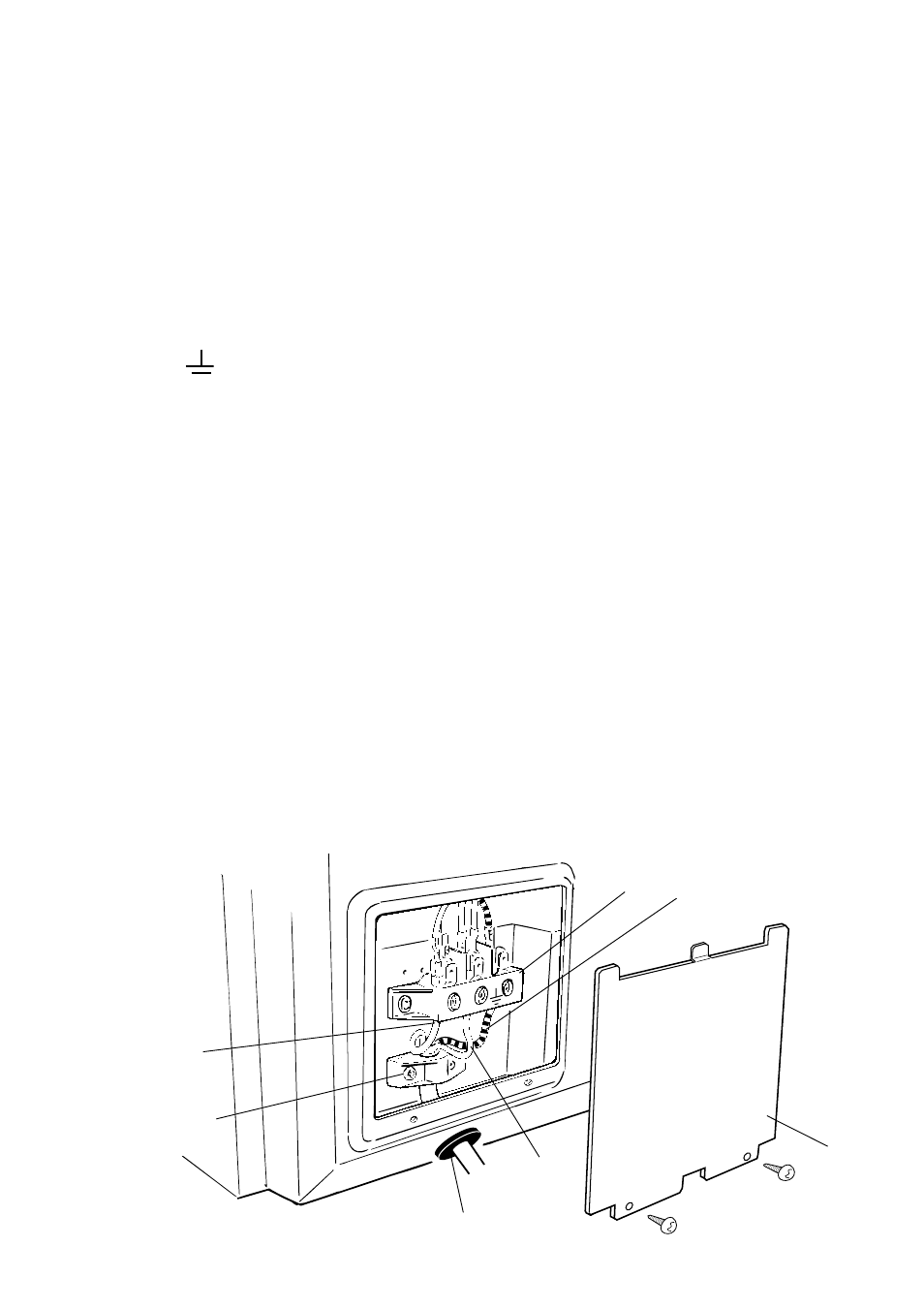

CONNECTING THE MAINS CABLE
– Remove the two screws securing the
cover plate A behind the cooker.
– Remove the screw C from the cable
clamp.
– Insert the mains cable (type H05RR-F)
of minimum 6 mm 2 section into the
cable protector P.
– Connect the phase and earth cables to
the mains terminal connection block
B.
EARTH
N NEUTRAL
L LIVE
– Refit the cable clamp so that it clamps
the outer sleeving of the cable.
– Refit the cover plate A.
L
N
Green &Yellow
(Earth)
Brown
(Live)
Blue
(Neutral)
P
C
B
Fig. 10.1
A
