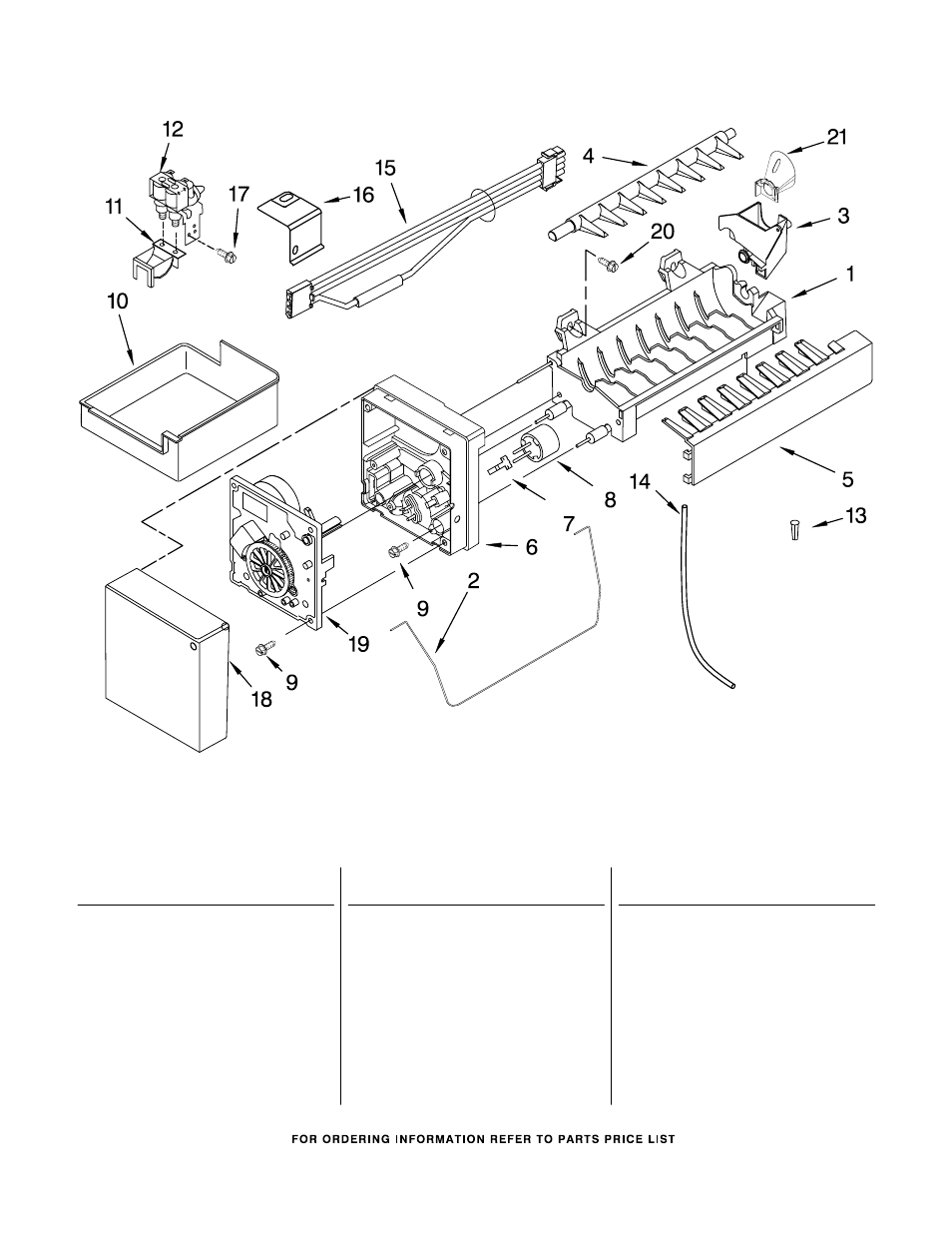

ICEMAKER PARTS
14
W10185725
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
Mold & Heater
Assembly
(Not Available −−
Order D7824706Q)
2
67004028 Arm, Shutoff
3
628356 Cup, Fill
4
627843 Ejector
5
2182124 Ice Stripper
6
2195914 Support & Motor
Assembly
7
2315522 Retainer,
Thermostat
8
Thermostat
(Not Available −−
D7824706Q)
9
681249 Screw
10
67001255 Pan, Ice
11
67004101 Bracket,
Tube Support
12
67006531 Valve, Dual
Water Inlet
13
A3223101 Insert, Tube
14
67003729 Tubing, Plastic
15 W10146389 Harness, Ice Maker
16
625910 Bracket
17
681390 Screw
18
67004710 Cover
19
Module Assembly
(Not Available −−
Order D7824706Q)
20
67006287 Screw
21
67005603 Funnel, Fill Tube
100 W10122519 Complete Icemaker
For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01
(White) (Black) (Stainless Steel)
