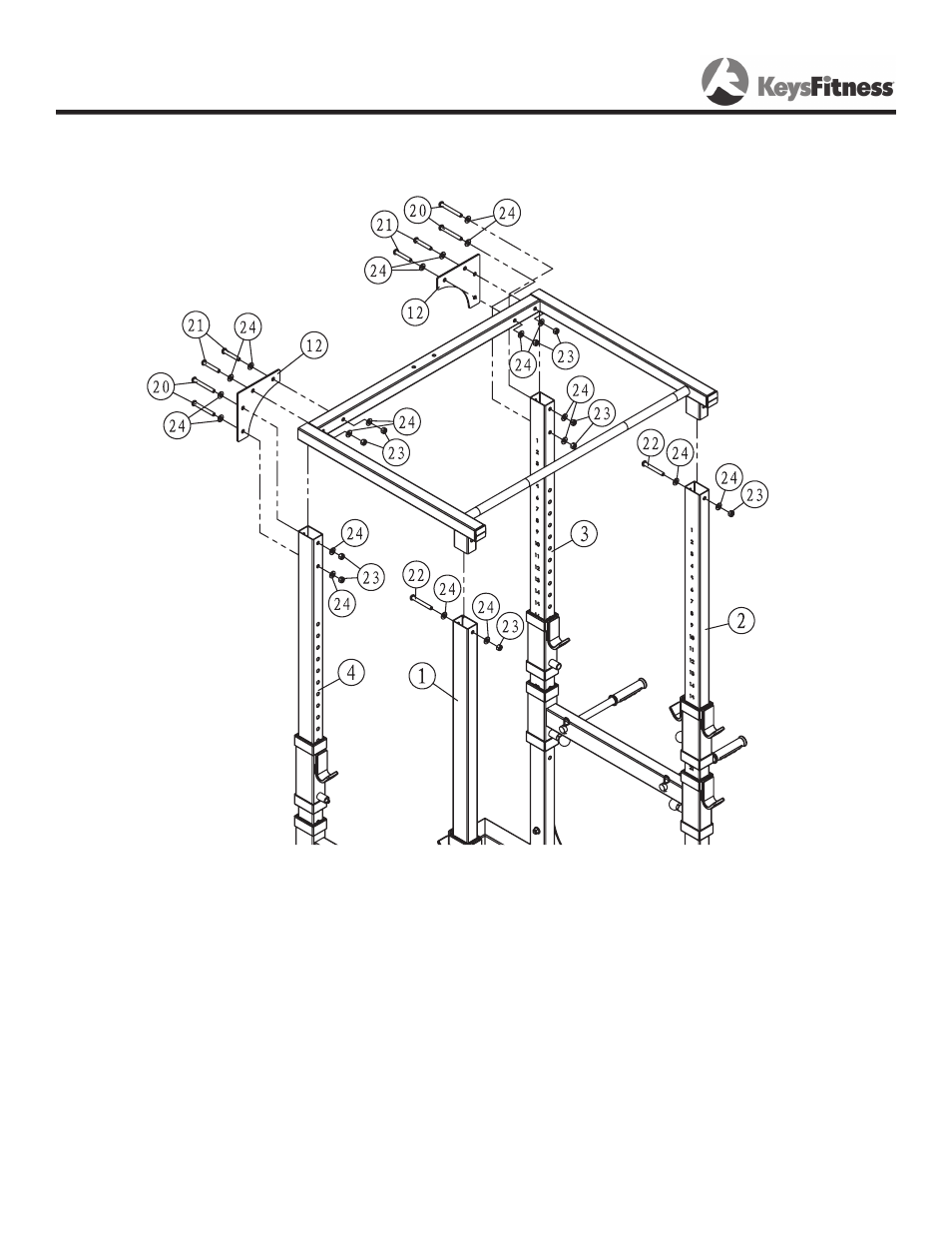

Connect Top Frame to Uprights using:

2 x (12) Steel Plate

4 x (20) Bolt M12x100

4 x (21) Bolt M12x75

2 x (22) Bolt M12x95

20 x (24) Washer M12

10 x (23) Nylon Lock Nut M12

STEP 3

8

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

Assembly
