Assembly
8

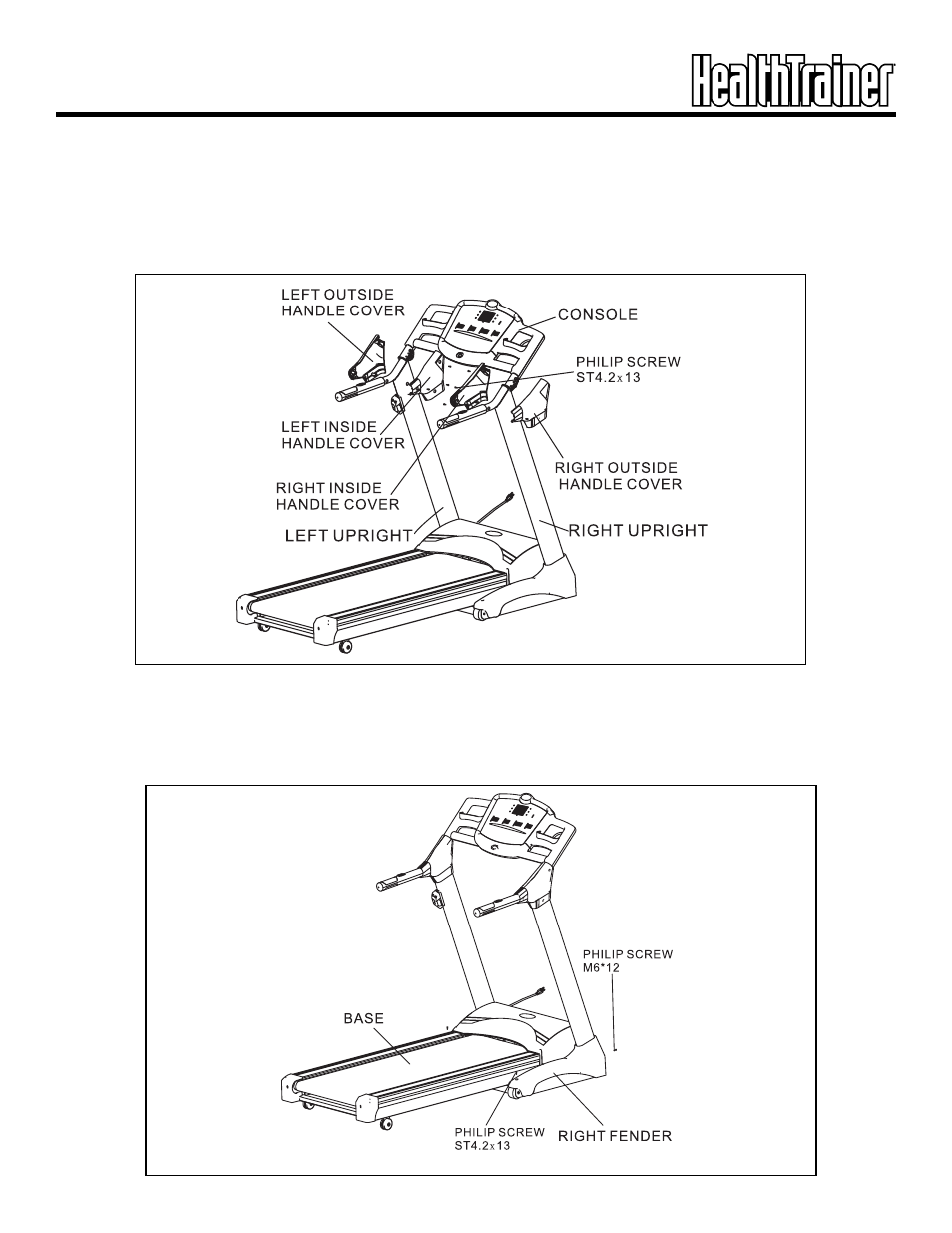

5. Attach left inside handle cover and left outside handle cover to left upright using philip screw ST4.2x13
(Qty. 3) as shown in Figure 5.
Repeat assembly step for right side handle covers.
Figure 5
Figure 6
6. Tighten all allen bolts (Qty. 8) installed in Step 3. Note: Move the fenders up to access the allen bolts.
Next, attach both left and right fenders to base using philip screw ST4.2x13 (Qty. 2) and philip screw M6x12
(Qty. 2).
