660 RALLYE FAC.REP. 2007

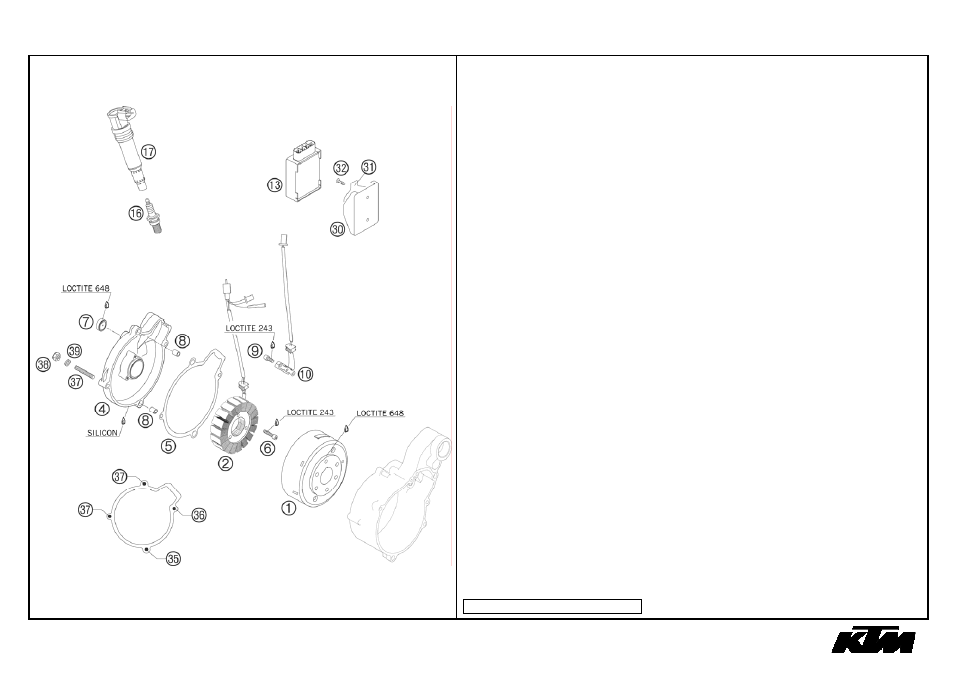

FIG PART
NUMBER
DESCRIPTION
QTY
1 58439005100
FLYWHEEL KOKUSAN GP9128 '97
1
2 58439004000
STATOR KOKUSAN LOOSE '96
1
4 5843000214430
IGNITION COVER CPL. BLACK 04
1
5 58530040000
IGNITION COVER GASKET 2001
1
6 0912050253
AH SCREW DIN0912-M 5X25
3
7 58430095100
INSPECT.GLASS GW 20-7 MINERAL
1
8 49030090000
DOWEL 9,8 X 7 X 10
2
9 0912050083
AH SCREW DIN 912 M 5X8
2
10 58439034000
PULSER COIL
1
13 58539031100
CDI-BOX RALLYE 03
1
16 58539093000
SPARK PLUG NGK DR9EA
1
17 58539006000
STICK
COIL
(IGN.C./SPA.P.C.)01
1
30 58439030200
RUBBER BRACKET FOR DIGI-BOX 03
1
31 58439030250
SUPPORT FOR RUBBER BRACKET 03
1
32 0991060103
FLAT HEAD SCREW DIN7991 M6X10
2
35 0015060303
HH COLLAR SCREW M 6X30 WS=8
1
36 0015060803
HH COLLAR SCREW M 6X80 WS=8
1
37 0766060400
THREAD PIN WITH SLOT M6x40
2
38 0934060003
HEXAGON NUT DIN0934-M 6
2
39 58036065100
CU-SEAL RING 6 X 10 X 2
2
05585390 / C075853900
* NEW PART
X AS REQUIRED
25
IGNITION SYSTEM
