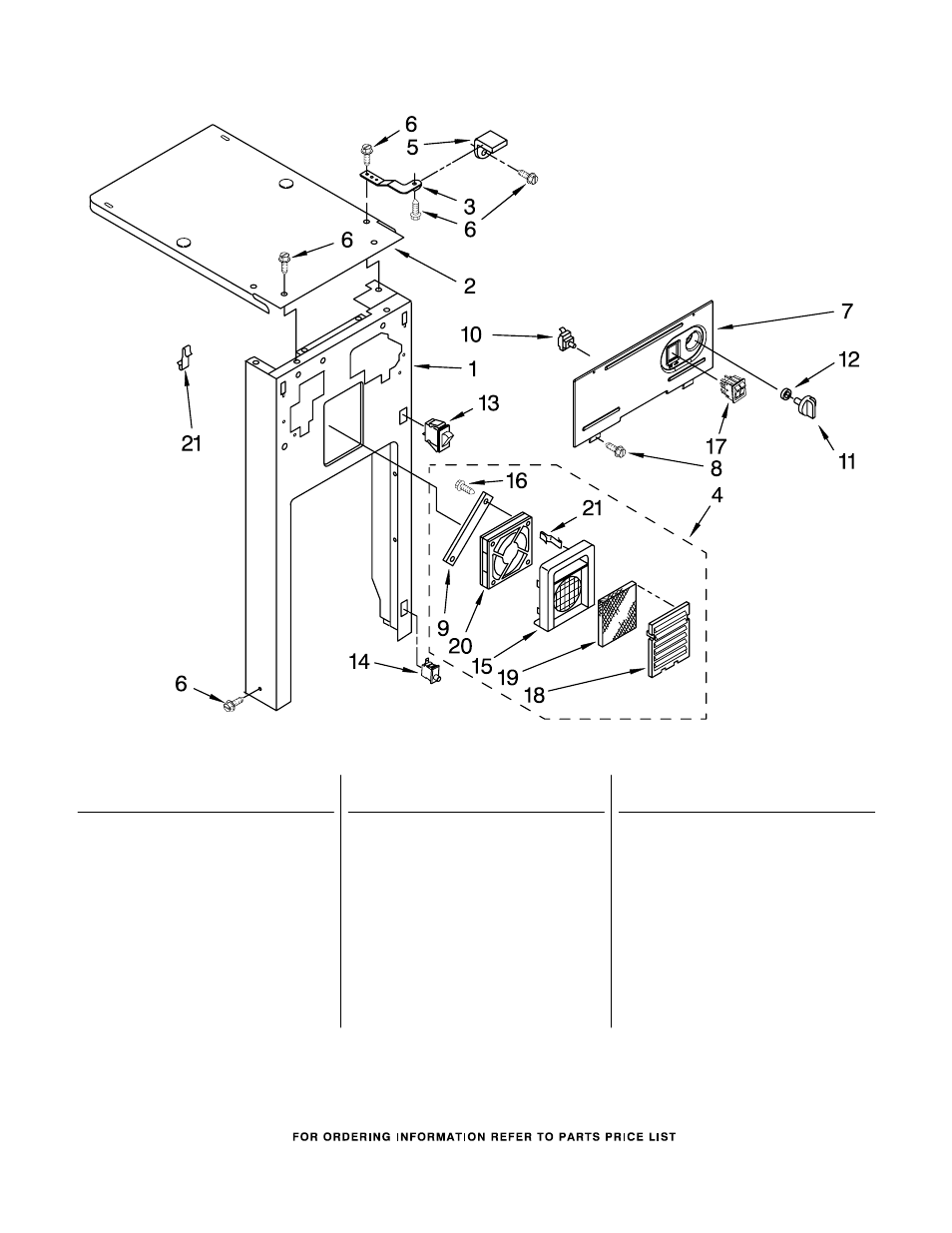

PANEL AND CONTROL PARTS
5
For Models: KUCS03FTPA0, KUCS03FTSS0
(No−Panel) (Stainless)
W10118275
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
Panel, Front
Frame
9871977 Black
2
608572 Cover, Top
3
9871993 Bracket, Retainer
4
9871893 Fan Mount Assembly
5
780239 Bracket, Retainer
(Alternate)
6
489478 Screw
7
Escutcheon,
Control
9871906B Black
8
246131 Screw
9
4152703 Strap, Fan
10
9871971 Switch, Rotary
Start−Run
11
9871920 Knob, Rotary
Switch
12
777383 Nut, Rotary
Switch
13
9871829 Switch,
Drawer
14
9871984 Switch, Pushbutton
15
4151442 Compartment,
Air Freshener
16
780034 Screw
17
Switch Assembly
9871973 Black
18
Cover,
Air Freshener
9871099 Black
19
4151750 Filter,
Charcoal
20
9871051 Fan,
Filter
21
4151897 Clip,
Wire
