KITCHENAID KBAU482TSS00 User Manual

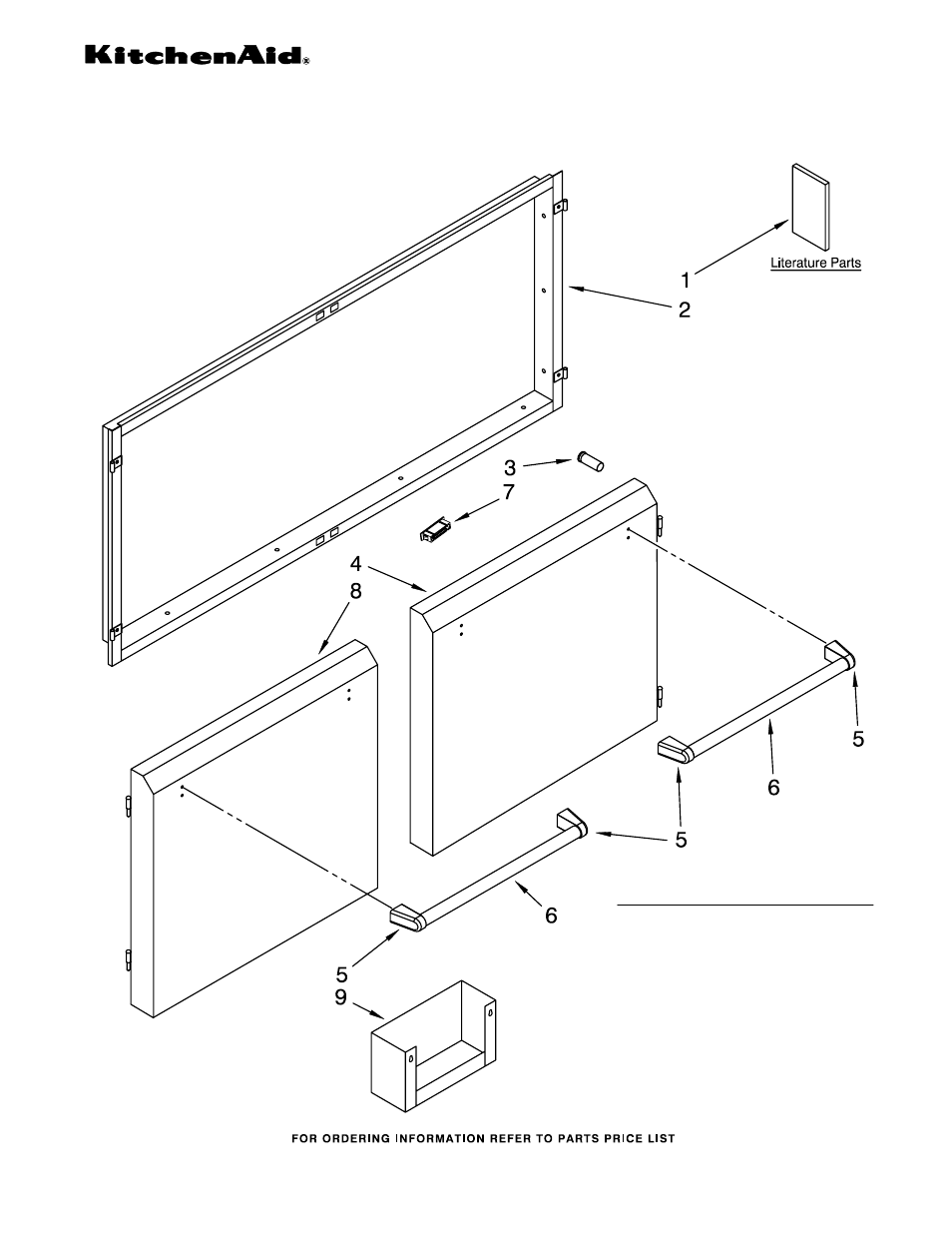

Door parts

background image

Illus. Part

No. No. DESCRIPTION

1

Literature

W101180968 U & C Guide /

Instructions,
Installation

2 W10141431 Frame, Door
3 W10128696 Hole, PLug
4 W10141432 Door, Right
5 W10137052 Bracket, Handle
6 W10131726 Handle, Door
7 W10128697 Magnet, Door
8 W10141434 Door, Left
9 W10141427 Tray, Condiment

For Model: KBAU482TSS00

(STAINLESS)

1

6−07 Litho In U.S.A. (cre)

Part No. W10153918 Rev.A

ACCESS DOORS, 48"

DOOR PARTS
