Defining the VS-30FW FireWire 800/1394b Repeater / HUB
5
4 Defining the VS-30FW FireWire 800/1394b Repeater / HUB
Figure 1 and Table 1 define the
VS-30FW FireWire 800/1394b Repeater / HUB:

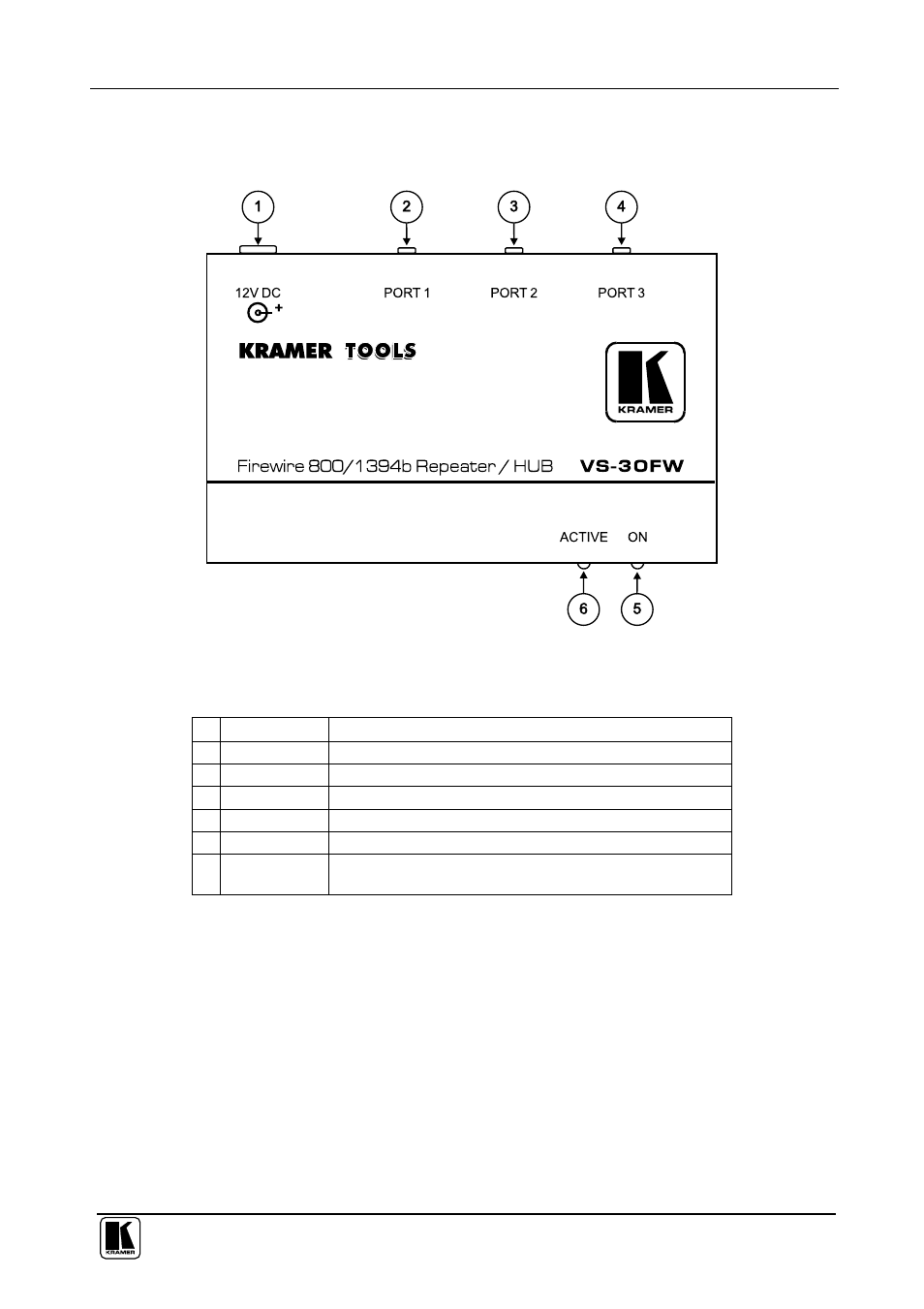

Figure 1: VS-30FW FireWire 800/1394b Repeater / HUB
Table 1: VS-30FW FireWire 800/1394b Repeater / HUB Features
# Feature
Function
1
12V DC
+12V DC connector for powering the unit
2 PORT 1
Connects to the FireWire device 1
3 PORT 2
Connects to the FireWire device 2
4 PORT 3
Connects to the FireWire device 3
5
ON
LED
Illuminates when receiving power
6
ACTIVE
LED
Lights when a connection between 2 FireWire devices is
established
