- 4 -
Operating Elements
1 Housing
2 Catchment bowl
3 Burner head
4 Canister shaft
5 Shaft cover
6 Finger hole
7 Valve with gasket seal
8 Regulator valve
9 Clamping lever
0 Blocking lever
q Notch
w Burner head screw
Technical data
Dimensions: 34 x 28 x 11 cm
Weight : appox. 1.4 kg
Consumption: 160 g/h
Nominal heat loading: 2.2 kW
Type of gas: Butane
Canister type: Butane-Canister
MSF-1a
Appliance category: Butane-Vapour pressure
operated appliance
Commissioning
Check the items supplied
After unpacking, check to ensure that all of the following
items have been supplied:
-
Transport case
- Butane-Canister Type MSF-1a
(In the canister shaft)
- Gas cooker with catchment bowl
- Operating instructions

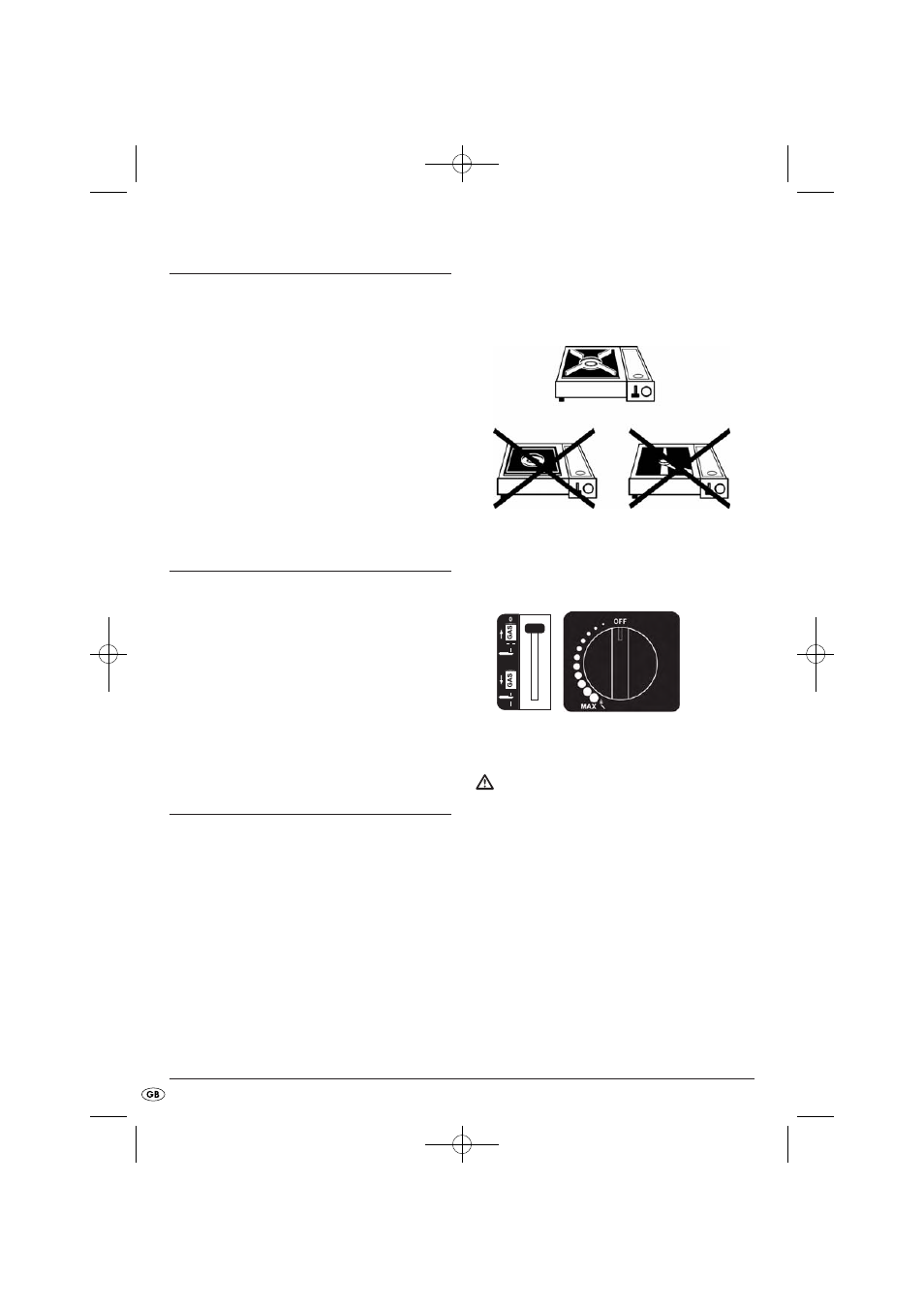

Notice
For safety reasons, the catchment bowl is inserted
into the housing laterally. In this position, a canister
cannot be connected with the clamping lever.
• Hence, first turn the catchment bowl over and insert
it into the housing with the mountings pointing
upwards.
• Check to ensure that the regulator valve is positioned
at OFF and the clamping lever at the position 0.
• Now open the canister shaft in that you lift the cover
upwards by placing your finger in the finger hole.
Important !
Use only the butane canisters designated for this
appliance and take note of the instructions given on
them.
Before installing a new gas container, check the sealing
washer on the valve for any signs of damage.
Exchange gas canister in a well ventilated location,
preferably outside, away from any sources of igni-
tion, such as naked flames, pilots, electric fires and
away from other people.
