Assembling – Karcher G 2600 VC PLUS User Manual
Page 7
7
English

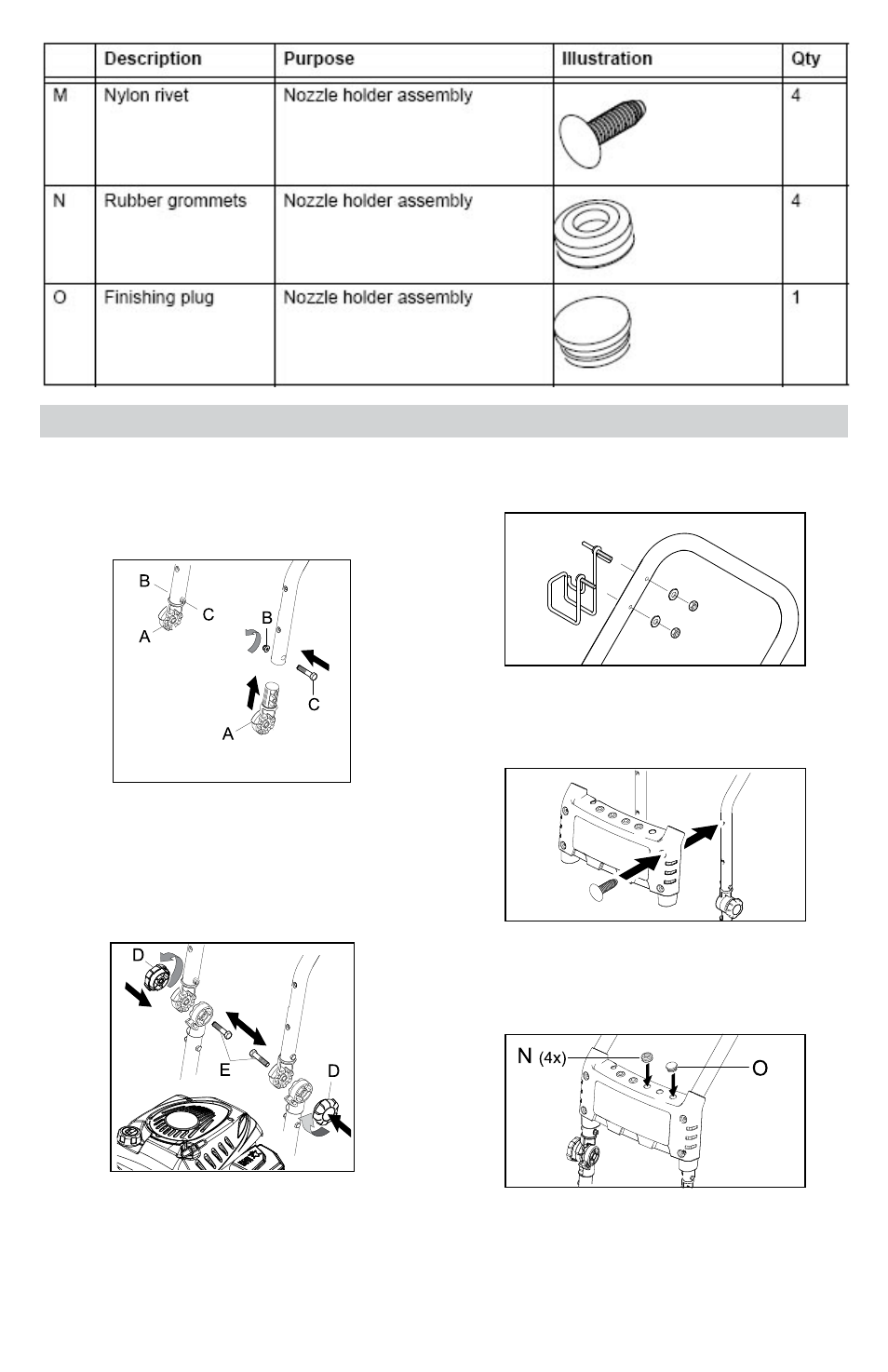

Assembling
STEP 1:
Insert joints (A) into handle. Use one 1/4” bolt
(C) and tighten with one 1/4” nut (B) on each
side. Hand tighten.
STEP 2:
Attach the handle to the frame of the pressure
washer.
Align holes, insert one 5/16” bolt (E), and
tighten the knob (D) on each side.
STEP 3:
Mount the gun/hose storage handle.
STEP 4:
Mount the nozzle holder with enclosed nylon
rivets to the handle.
STEP 5:
Fasten the rubber grommets and the finishing
plug in the nozzle holder.
