6. Remove the protective skin from the screw covers. Snap the
screw covers into the handle trim section.
7. If the door gap is uneven, see “Adjust and Remove Door.”
Top Grille Panel

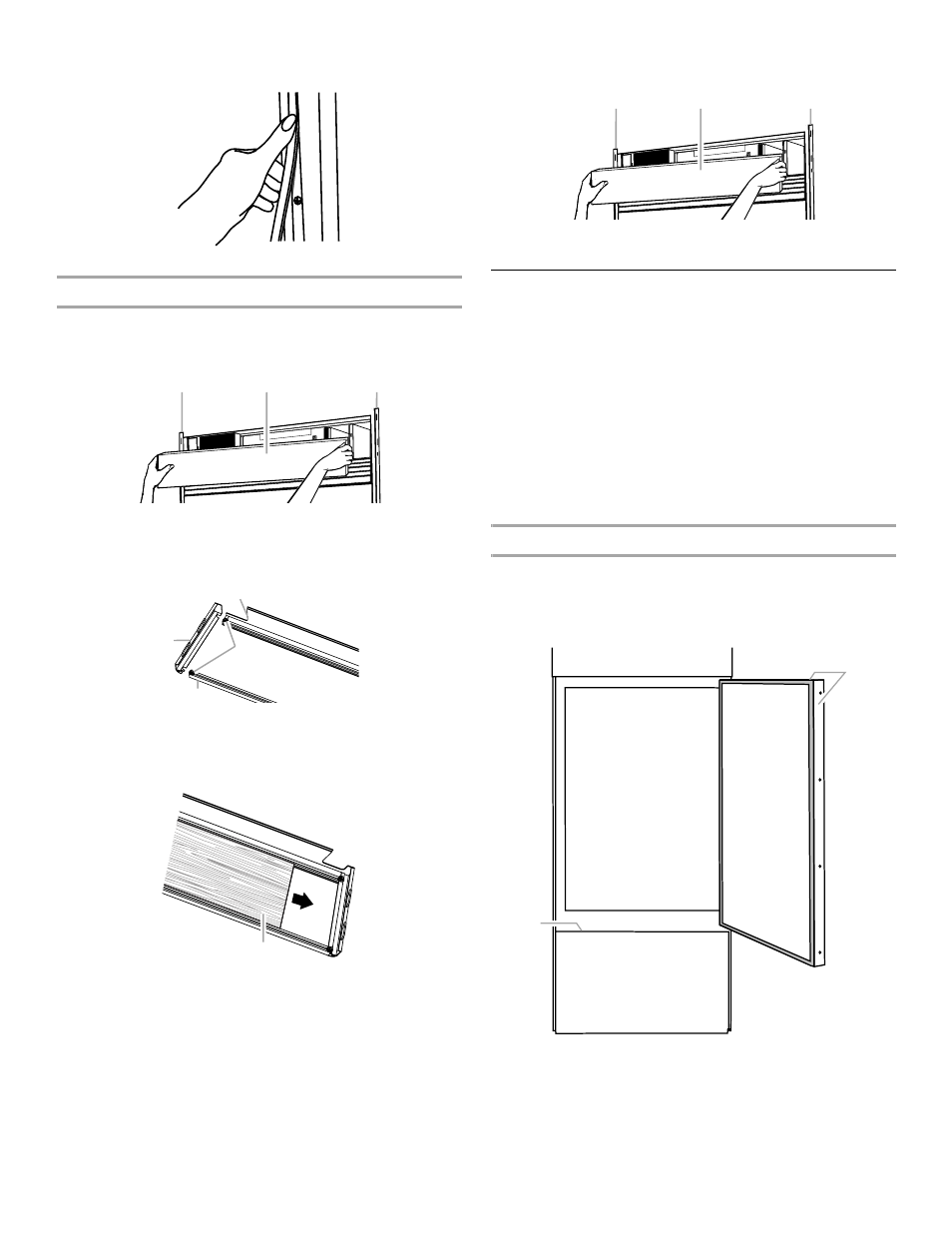

1. Grasp both ends of the top grille.
2. Push straight up; then pull straight out. Place the top grille
panel-side down on a soft working surface.
3. Remove one end cap by loosening the nuts and sliding the
end cap off.
4. Slide the panel into the top grille channel and reattach the
end cap.
5. Replace the top grille in the cabinet side trims and pull the
panel down slightly to lock it into place.
Install Overlay Series Custom Panels
IMPORTANT:
■ Install the custom handles prior to installing the panels on
the refrigerator. For more information on KitchenAid
custom handle selection, refer to the KitchenAid Catalog,
visit www.kitchenaid.com, or call 1-800-422-1230.
In Canada, visit www.KitchenAid.ca, or call
1-800-461-5681.
■ Create custom door overlay panels according to the
specifications in the “Overlay Series Custom Panels”
section.
■ KitchenAid is not responsible for the removal or addition
of molding or decorative panels that would prevent the
refrigerator from being serviced.
Door Panel Installation
1. Remove all tape and door bracing from the refrigerator door
and freezer drawer.
2. Open the refrigerator door and freezer drawer and remove the
trims.
A. Top grille
B. Cabinet side trim
A. Bottom rail
B. Nuts C. End cap
D. Top rail
A. Panel
B B A
C
B
A
D
A
A. Top grille
B. Cabinet side trim
A. Refrigerator door trims
B. Freezer drawer trim
B B A
A
B
