1.Introduction

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1.Introduction

Make connections and play!

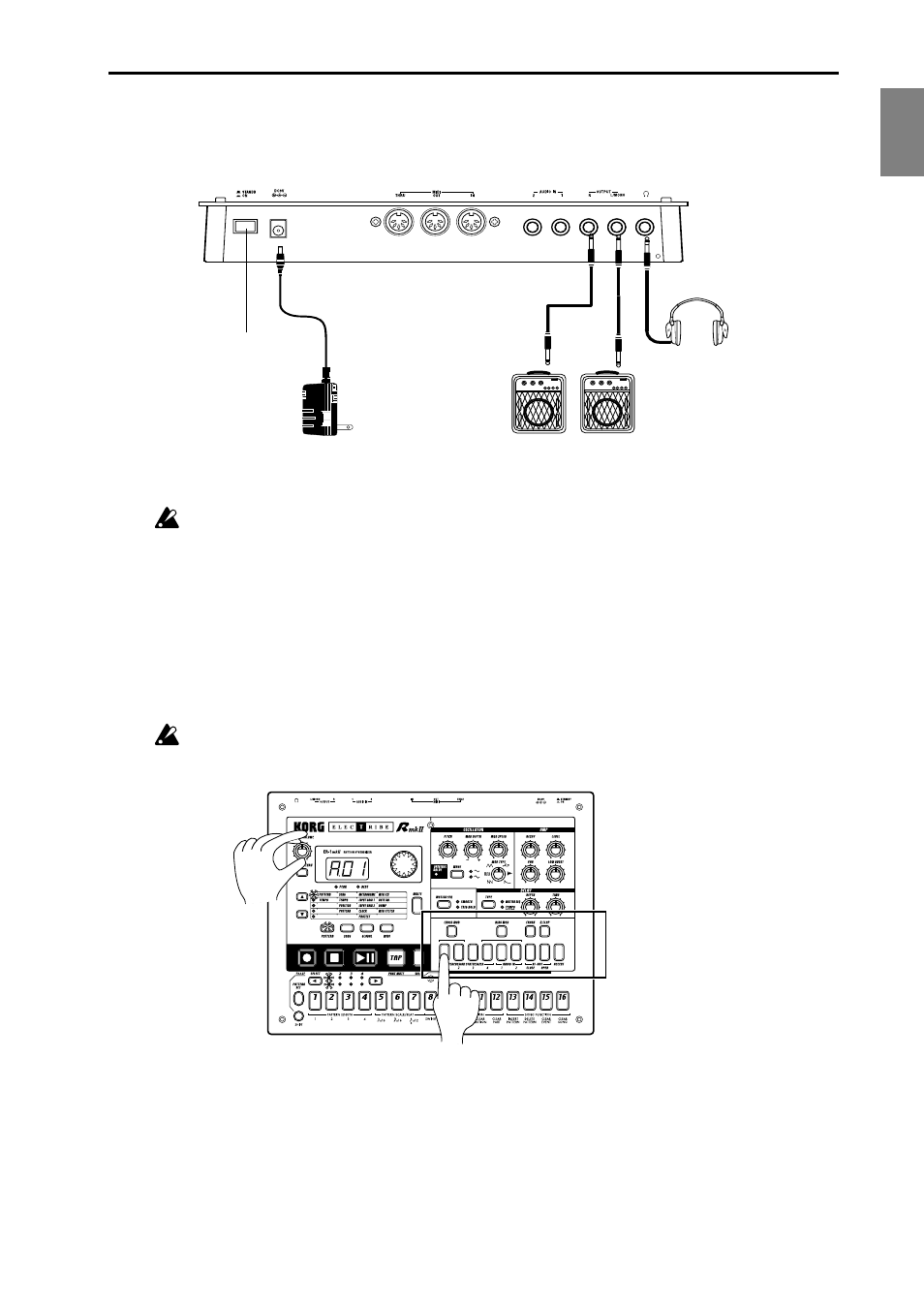

Example connections

AC Local Voltage

Power switch

Preparing to play

Be sure to turn off the power before making connections. Careless operation may damage your

speaker system or cause malfunctions.

1. Connect the included AC adapter to the DC 9V jack, and plug the adapter into an AC outlet.

2. Connect one end of your audio cables to the line out jacks of the ER-1

(L/MONO, R), and

connect the other end to your mixer or powered monitor speakers (amplified speakers) etc. If you
will be listening in mono, use the L/MONO jack. To take full advantage of the ER-1

's sound

quality, we recommend that you listen in stereo.

3. If you will be using headphones, connect them to the headphone jack.

The output from the line out jacks will not be switched off even if headphones are plugged in.

Master volume

Part keys

4. When you have finished making connections, turn on the power. Slightly raise the master volume

of the ER-1

, and strike the part keys (PERCUSSION SYNTHESIZER 1...4) to check whether

connections have been made correctly. Use the master volume of the ER-1

and the gain and

fader controls of your mixer or powered monitor system to adjust the volume to an appropriate
level.
