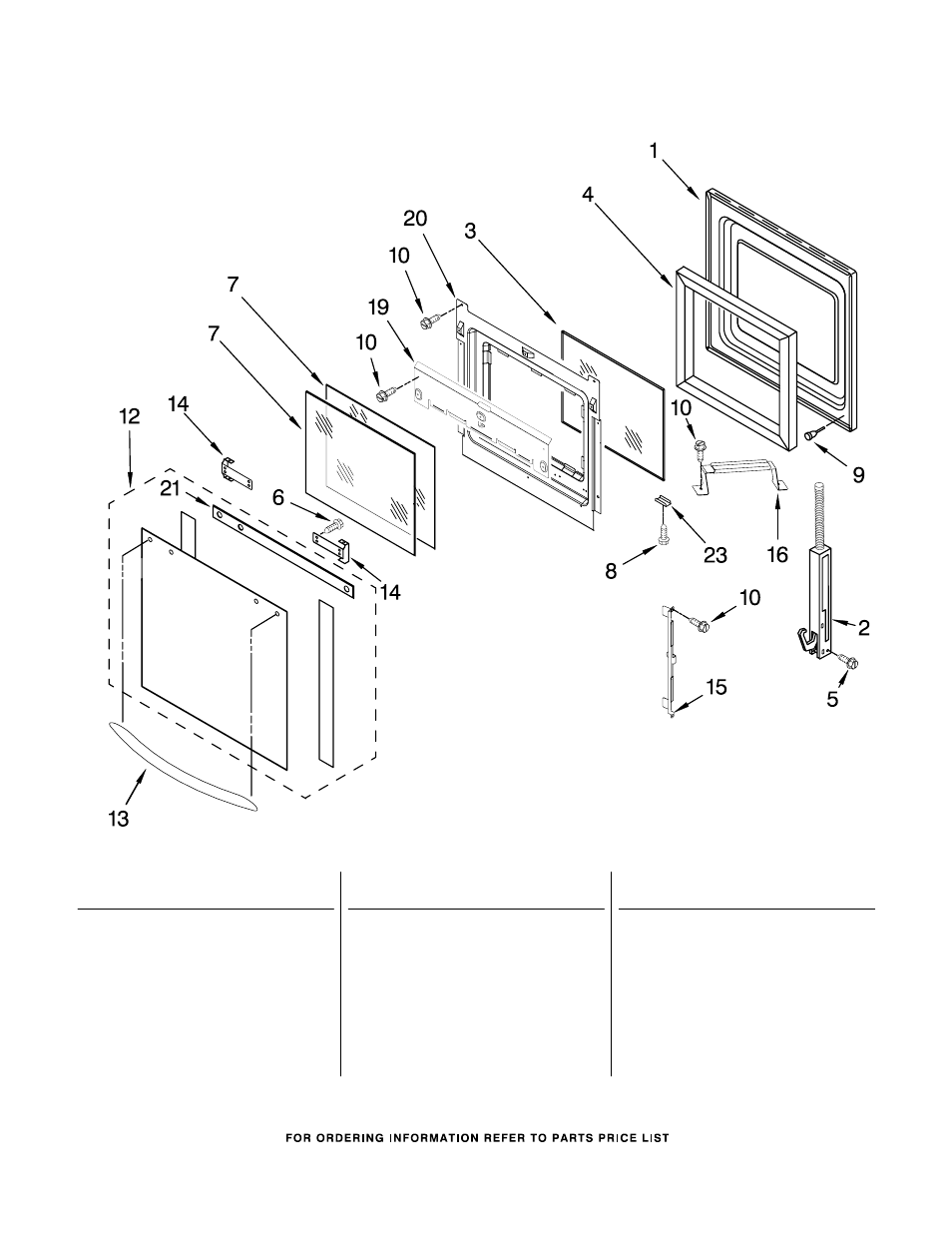

OVEN DOOR PARTS
5
For Models: KEBC167VSS00
(Stainless)
W10224609
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 8300152 Door Liner
2 Hinge, Door
9760579 Right
9760580 Left
3 4449259 Glass, Inner
4 8300797 Insulation, Door
5 4449743 Screw
6 3196184 Screw
7 4449263 Glass, Inner
8 3400832 Screw
9 4448520 Bumper, Door
10 4449809 Screw
12 W10194367 Assembly,
Door Glass
13 W10199976 Door Handle
14
Bracket, Handle
4455803 Right
4455804 Left
15 8302092 Bracket(2nd Glass)
16 8302094 Bracket(3rd Glass)
19 8301089 Shield, Heat
20 8300190 Retainer, Glass
21 8300153 Seal, Door Top
23 W10158497 Retainer, Clip
