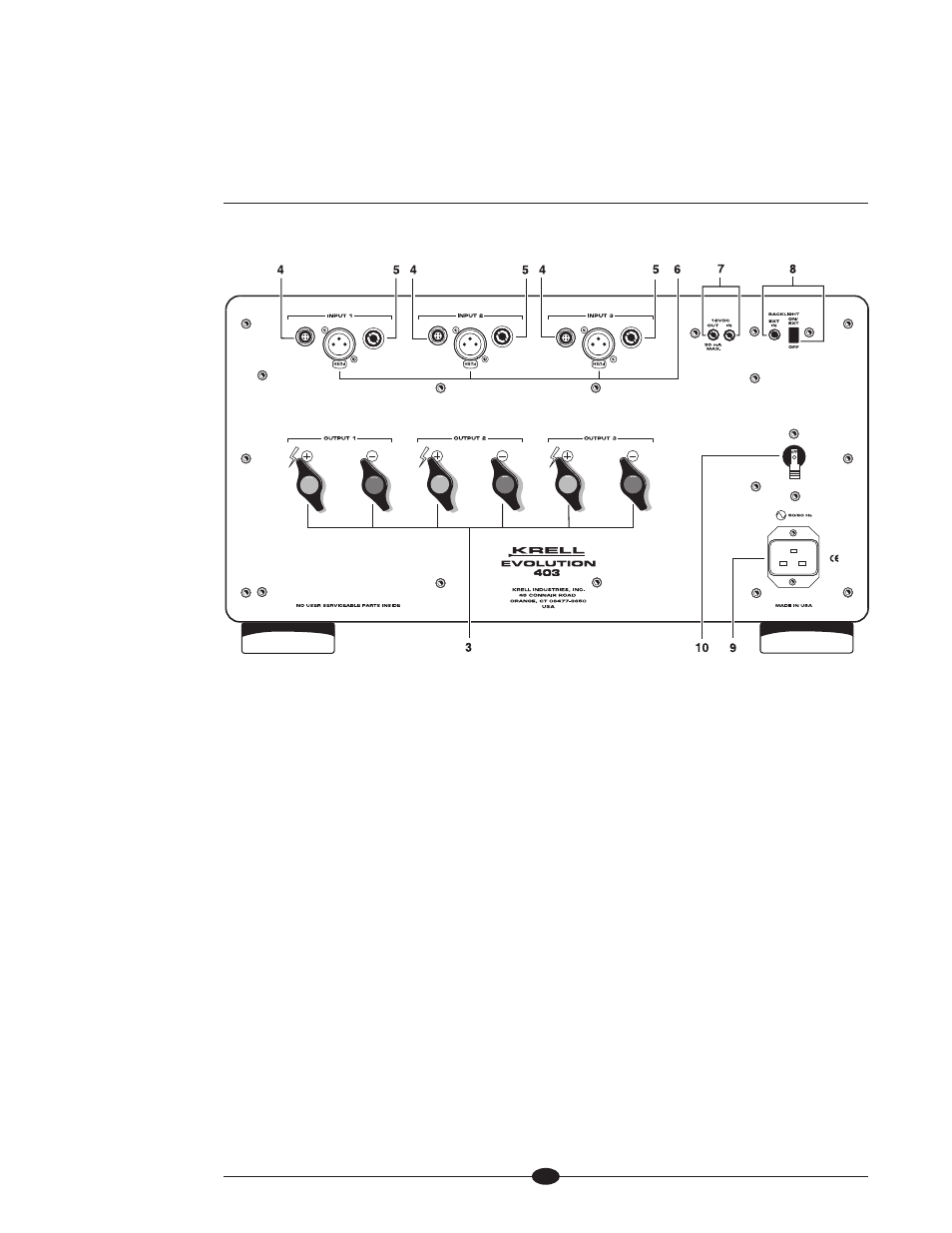

Figure 4 Evolution 403 Multi-channel Amplifier Back Panel
3 Loudspeaker Binding Posts
4 CAST Inputs
5 Single-ended Inputs
6 Balanced Inputs
7 12 VDC Out/In (12 V Trigger)
8 Backlight Control
9 IEC Power Cord Receptacle
10 Power Breaker Switch
Inputs
Outputs
Remote
Power
(SECTION THREE: Anatomy of an Evolution Amplifier continued)
