Step 1, Assembly – Keys Fitness Half Cage PeC Attachment KF-HCP User Manual

Page 6

background image

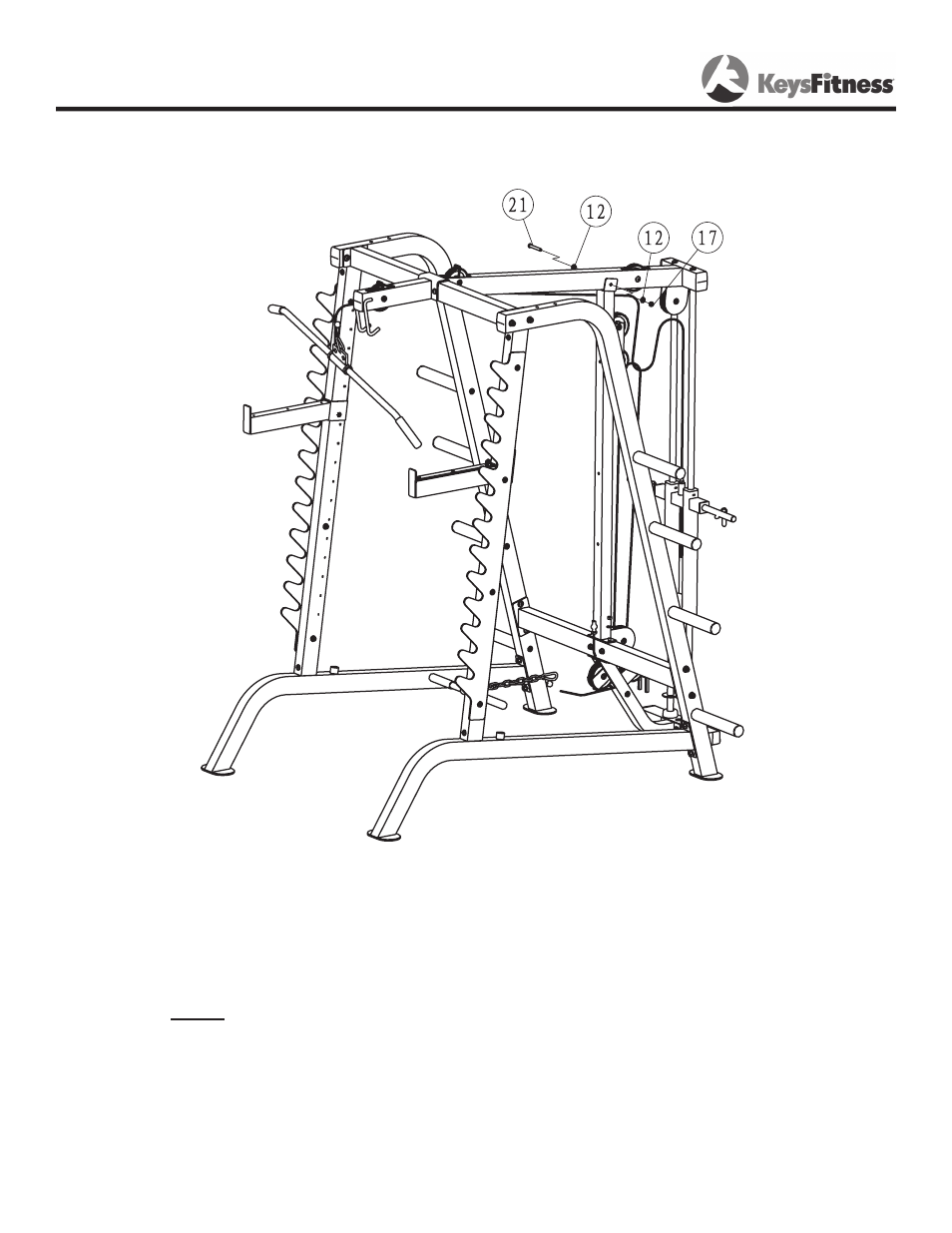

STEP 1

Assemble Middle Upright to Half Cage structure using:

1

x

(4) Middle Upright

x

(1) Washer

1

x

(1) Bolt

1

x

(17) Nylon Lock Nut

Note: Use bolt assembly from Half Cage Lat Attachment to

secure bottom of Middle Upright (4).

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

Assembly
