1

Installation

Instructions

Light Kit

Part No. 1695295

For Axion and 150Z Zero Turn Models

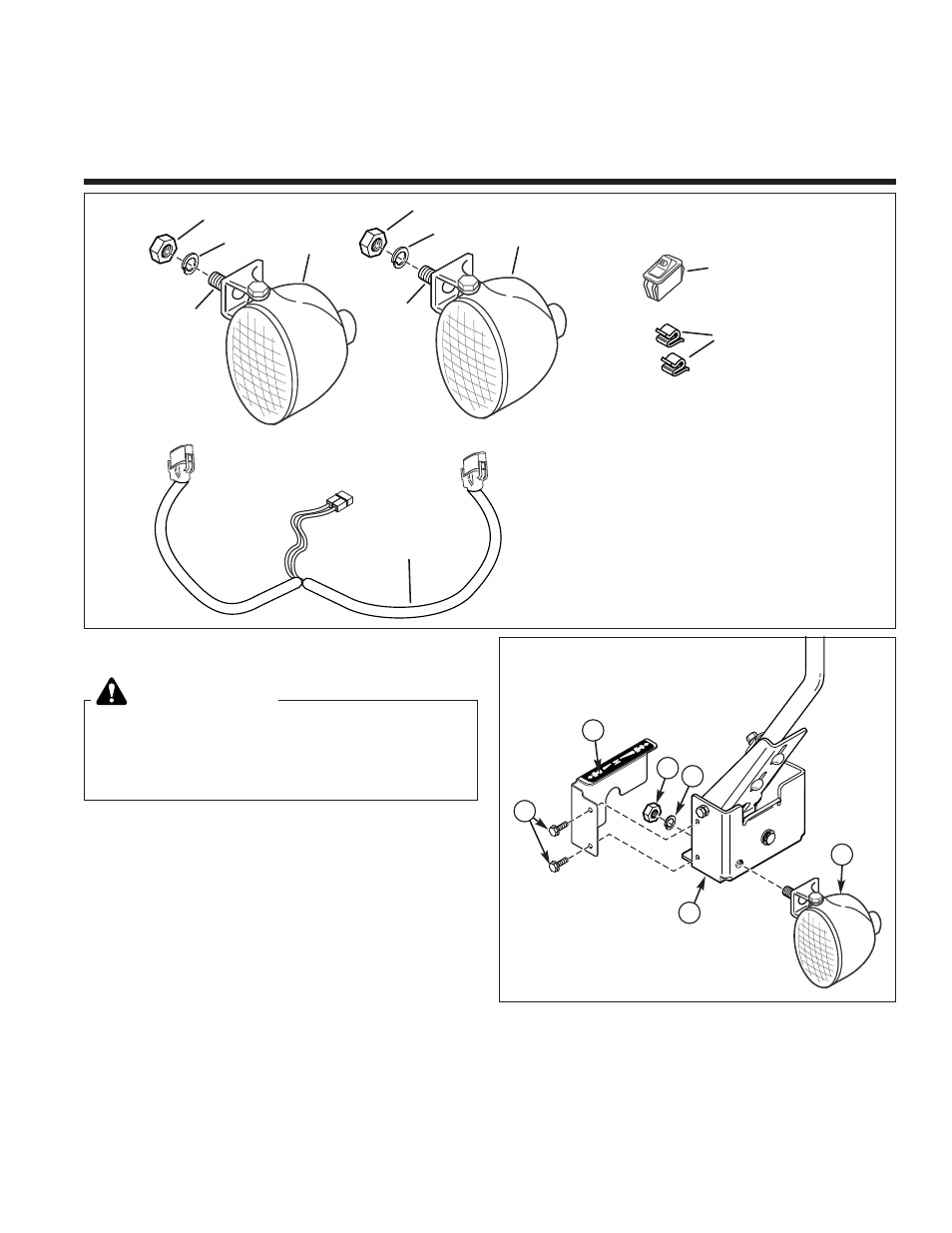

Figure 1. Contents

Kit Contents:

Ref.

Part No.

Qty.

Description

1

N/A

2

NUT, Hex, 5/16-18

2

N/A

2

LOCKWASHER, 5/16

3

N/A

2

CARRIAGE BOLT, 5/16-18 x 1

4

1726801

2

HEADLIGHT ASSEMBLY,
(Includes Ref. Nos. 1, 2, & 3)

5

1716951

1

SWITCH, Headlight

6

2172434

2

CLIP, Wire

7

1726796

1

HARNESS, Wire

INSTALLATION

1. Remove 1/4-20 x 5/8 capscrews (A, Figure 2) and

cover (B).

2. Install light assembly (F) and secure with 5/16 lock-

washer (D) and 5/16-18 nut (C).

3. Reinstall cover (B) and secure with 1/4-20 capscrews

(A).

4. Repeat steps 1 through 3 for other side of unit.

Before beginning any service work turn off the
PTO, set the parking brake, turn off the ignition,
remove the key, and disconnect the spark plug
wire(s).

WARNING

2

4

5

7

1

Figure 2. Light Installation
A. Capscrews, 1/4-20 x 5/8
B. Cover
C. Nut, 5/16-18
D. Lockwasher, 5/16
E. Bracket
F. Light Assembly

6

2

4

1

3

3

C

E

B

A

D

F
