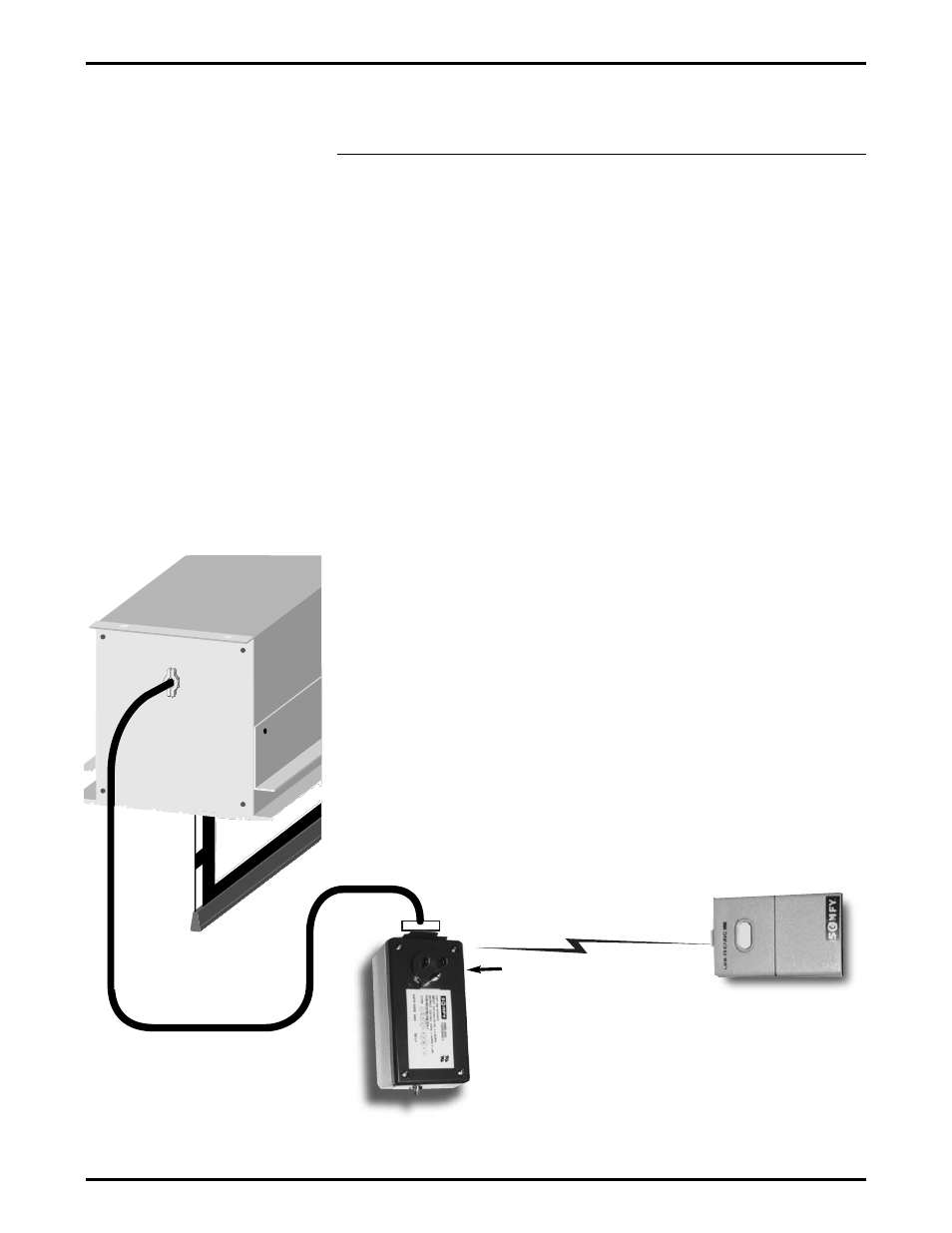

Figure 8: Wireless remote control connection
Installing the wireless remote control option
The optional Stewart Filmscreen wireless remote control allows control of
the screen from anywhere in the room.
Once the AC power outlet is installed near the screen, an electrician is not
needed to connect the wireless remote receiver module to the power
source.
Note: The distance between the hand-held remote control and the receiver
can be up to 50 feet / 15m. It is not necessary to have uninterrupted line-of-
sight between the remote and the receiver, but there should be no metal
objects between them. The override switch on the bottom of the receiver
can be used instead of the remote control.
Preparing the connection
Before making the electrical connections, you need:
‹ An available AC power source
Making the connection
Figure 8 illustrates the connections.
1. Connect the 4-pin connector to the receiver module.
2. Plug the receiver module into the constant AC power source.
Override Switch
Wireless Remote
Receiver Module
Wireless Remote
Control
AC Plug
4-pin Connector
