Four Channel Amplifiers:
S664, S804, S1004 and S1204 Amplifiers
Four Channel Amplifiers:
S664, S804, S1004 and S1204 Amplifiers

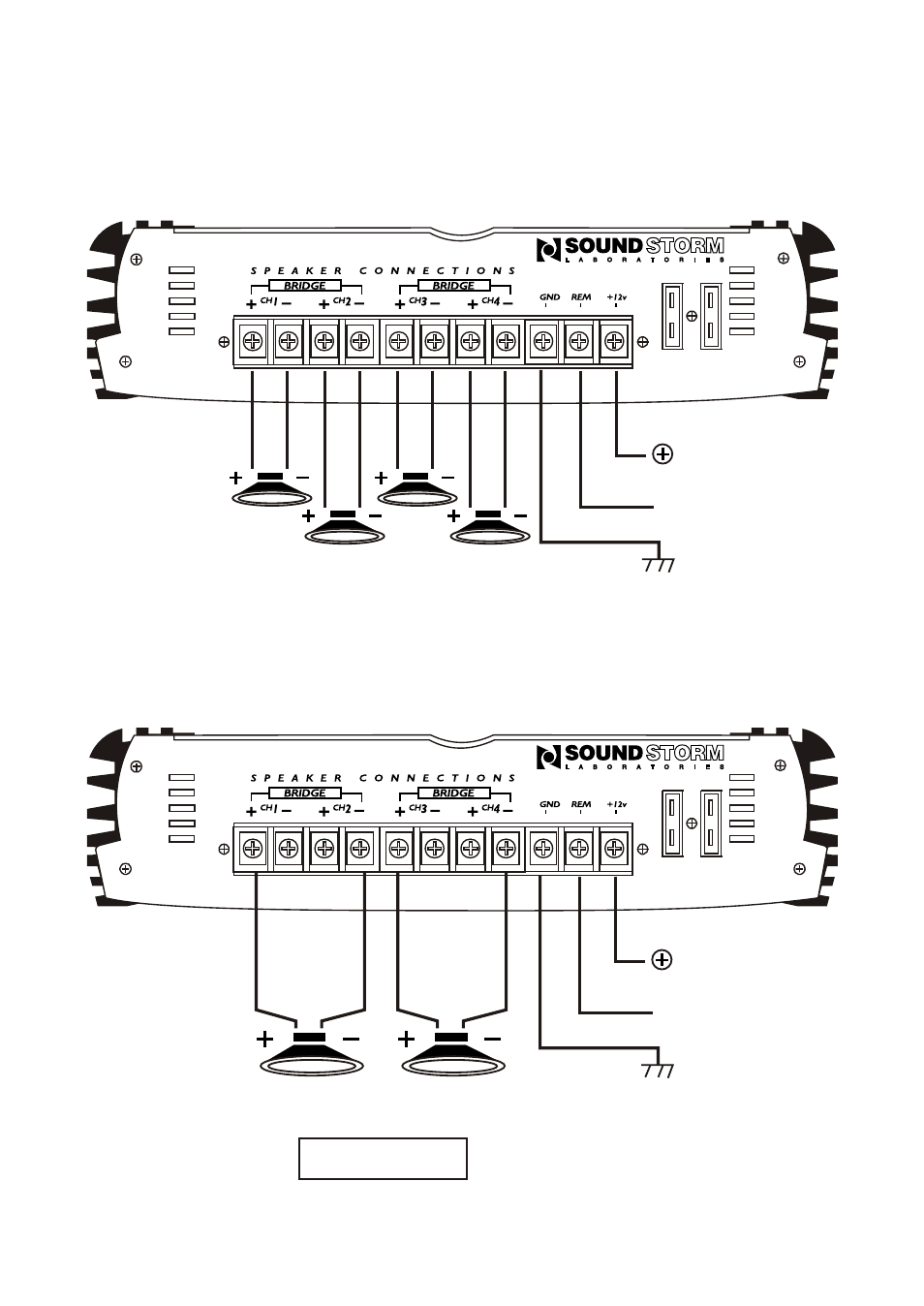

Four Channel speaker Wiring
CH 1
SPEAKER
CH 3
SPEAKER
CH 2
SPEAKER
CH 4
SPEAKER
To BATTERY
GROUND
To REMOTE OUTPUT
from HEAD UNIT
SPEAKER IMPEDANCE
4-8 OHMS!
SUBWOOFER
LEFT SPEAKER
SUBWOOFER
RIGHT SPEAKER
To BATTERY
GROUND
To REMOTE OUTPUT
from HEAD UNIT
Bridged Speaker Wiring
