114 STAR TRAC E SERIES BIKES OWNER’S MANUAL

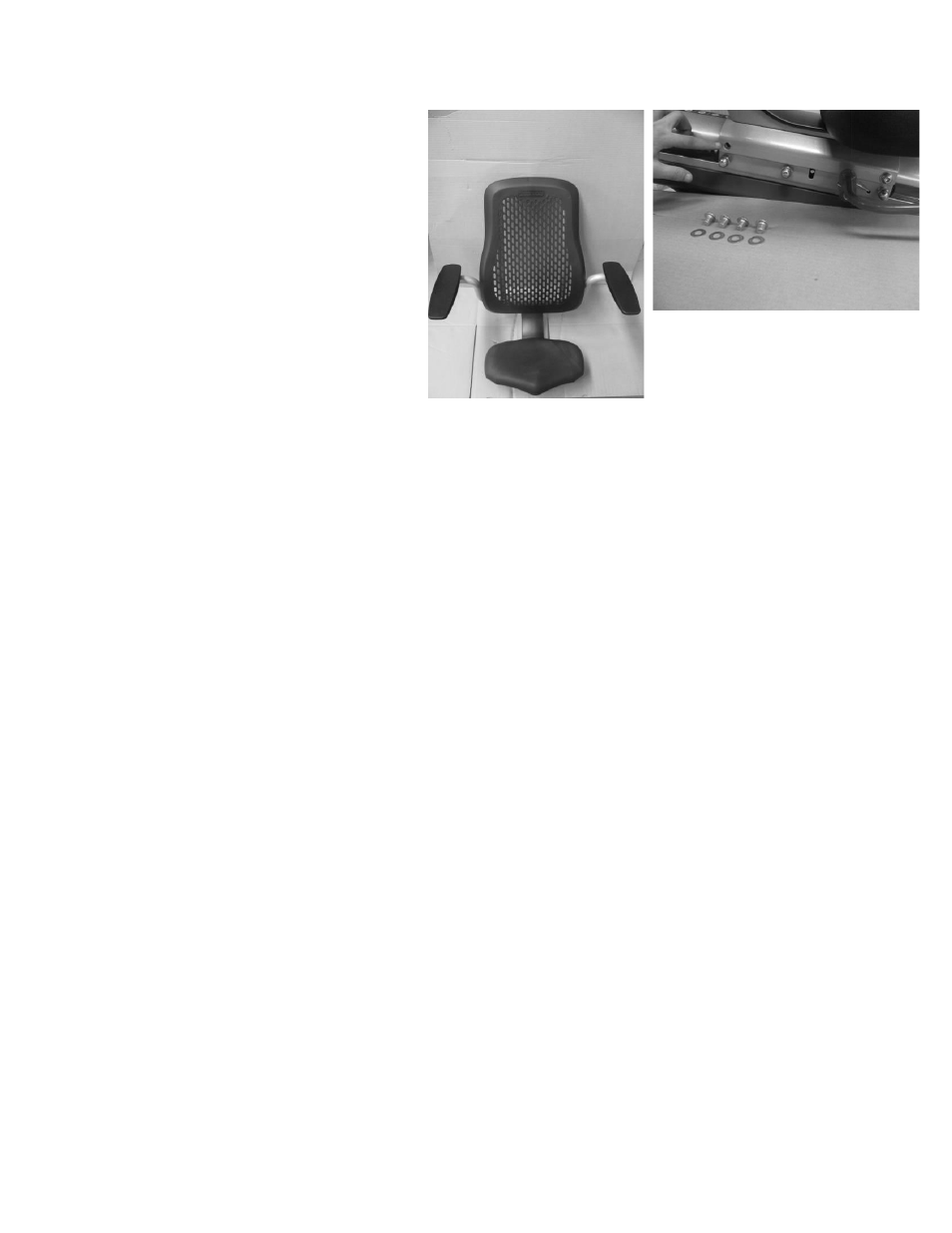

4. Install the Seat Assembly
.
Carefully position the seat frame over the seat
carriage on the bike frame, aligning the
attachment holes in the sides of the seat
frame with the holes in the seat carriage.
Using four M10 X 10 socket head screws and
four washers, secure the seat frame to the
seat carriage. Tighten all four screws securely
to a torque of 18-20 lbs-ft.
Verify operation by lifting up the red lever
and sliding the seat carriage from the front to
the back. Verify the latch engages when the
lever is released.
NOTE: THIS COMPLETES THE ASSEMBLY OF THE BASE FRAME, TO COMPLETE ASSEMBLY OF LED DISPLAY
CONTINUE ON PAGE 15
Step 4
