Stoelting SHAKE MACHINE User Manual
Page 35
27
Drawing
Part
Index No.
Number
Qty.
Description
1
482039
2
Black Knob (Shake Guard)
2
3120092
1
Spinner Guard
3
2120090
1
Spinner Swing Shield
4
2132222
1
Top Splash Cover Insert
5
696146
1
Spring Clip
6
3143866
1
Spinner
7
624535
1
O-ring
8
653035
1
Thumb Screw (Belt Guard)
9
2143042
1
Left Belt Guard
10
2143041
1
Right Belt Guard
11
2119118
1
Spinner Bearing w/Bracket
12
599102
1
Pulley
13
150914
1
Spinner V-Belt (Ser. # 0-7805)
14
(See Motor Nameplate)
1
Spinner Motor
PARTS NOT SHOWN
15
1110127
2
Hinge Pin - Swing Shield
16
1113185
2
Hinge Pin Retainer - Swing Shield
17
1130236
1
Delrin Pin - Top Splash Cover

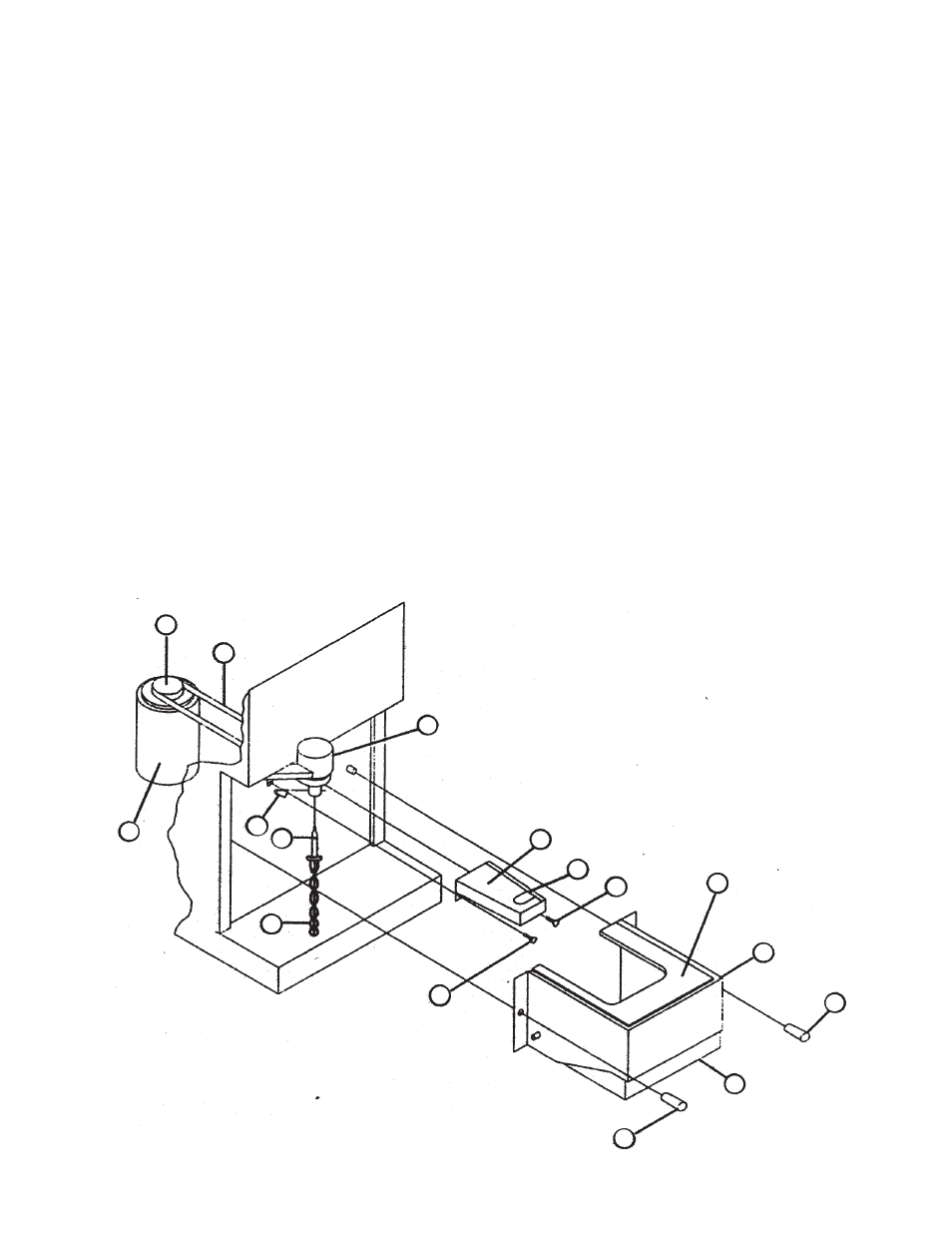

SPINNER PARTS (225 - Shake 227)
11
6
5
7
8
10
9
2
4
3
1
8
1
14
12
13
