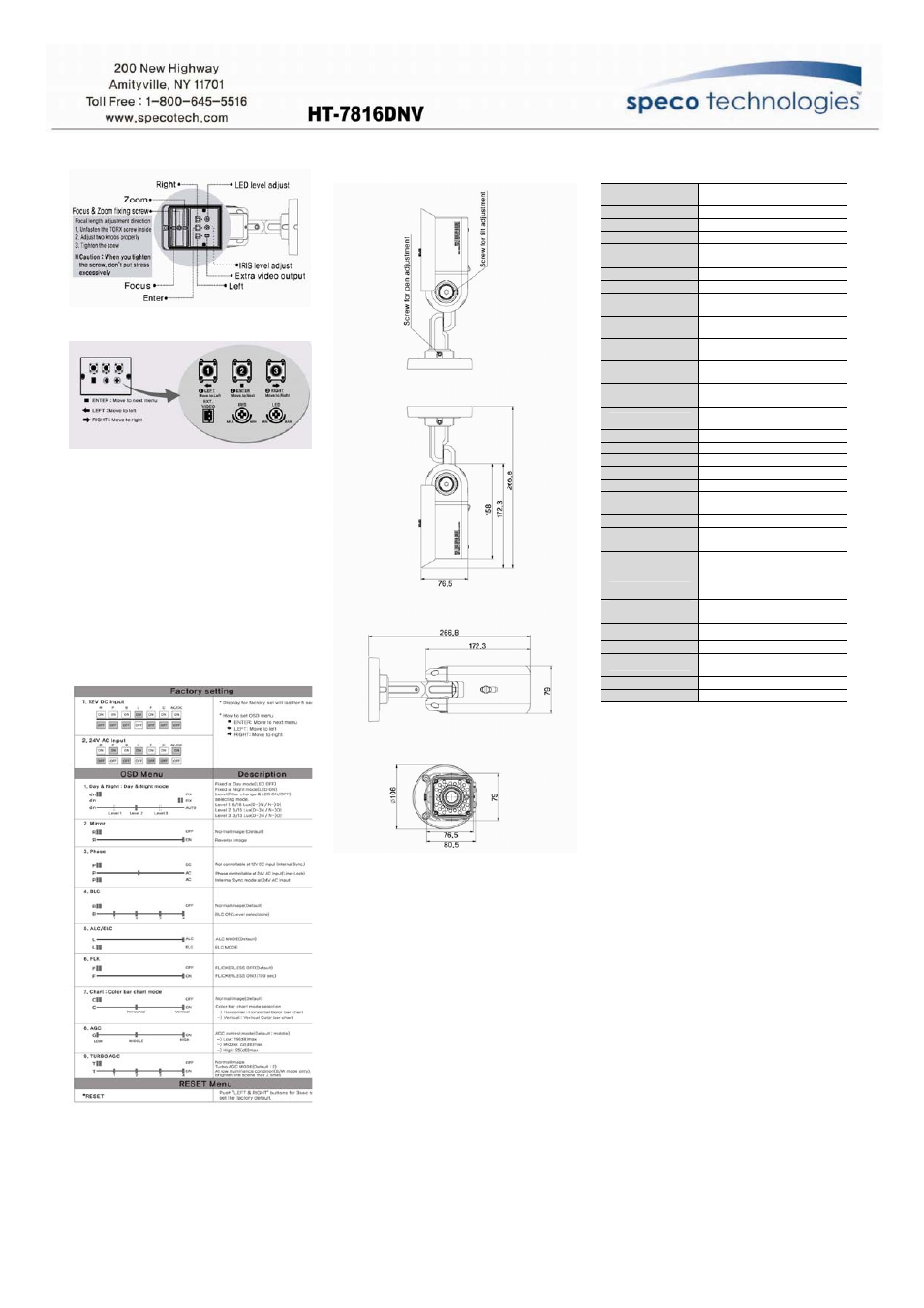

◈ SPECIFICATIONS
Type Weatherproof True Day/Night ICR
Color Camera
Image Sensor 1/3” Sony Super HAD CCD
Effective Pixel 768(H) x 494(V)
Cell size 6.35㎛(H) x 7.4㎛(V)
Horizontal
Resolution Color: 550 TV-LINES
B/W: 600 TV-LINES
TV Type NTSC
Sync. Type Internal / External (Line-Lock)
Scanning
System
2:1 Interlace
Scan Freq. (HOR.)
NT:15.734KHz
L/L:15.750KHz
Scan Freq. (VERT.)
INT:59.94Hz
L/L: 60Hz
Video Output
1.0Vp-p (Sync-Negative)
Termination 75Ω
Gamma
Characteristic
r =0.45 Typical
Min. Illumination
0 Lux (40M Range): LED ON
0.05 Lux (F/1.2) : LED OFF
S/N Ratio 50dB or more (AGC OFF)
Mirror On / Off
Flickerless (FLK) On / Off
IRIS Auto Iris
Day/Night function Automatic (Selectable)
Reverse
polarity protection
Active
External Control Yes
Shutter Speed
(Electronic)
1/60~1/100,000 second
Test
Illuminance Area Average test illumination
by front view
Power Supply
12VDC / 24VAC
DUAL VOLTAGE
Consumption
Current
Max.950mA
Operation Temp -14 ℉~+ 122℉
LED 30PCS
LENS
Auto Iris Varifocal Lens
(3.8 – 9.5mm)
Dimension 3.1”W x 3”H x 6.8”L
Weight 3.3Ibs.
* The specification is subject to change without any prior
notice to improve the quality.
◈ DIMENSIONS
◈ FUNCTIONS
[ SETUP FOR CAMERA FUNCTIONS ]
- Function setting combination
OSD MENU
- dn(DAY&NIGHT) : DAY&NIGHT mode setting
- R(MIRROR) : Reversed image ON/OFF
- P(V-PHASE) : The Line-Lock Phase can be adjusted
- B(BLC) : Back Light Compensation mode setting
- L(ALC/ELC) : Iris mode selection(ALC-Auto Iris Lens
/ELC-Electronic exposure)
*ALC mode is recommended
- F(FLK) : Flickerless ON/OFF
- C(Chart) : Color bar chart mode setting.
- G(AGC) : AGC mode setting.
- T(Turbo) : Turbo AGC mode setting.
- EXT.VIDEO : Plug your video test monitor in here.
You can use the included RCA cable.
- IRIS : Adjust video output level of DC lens
- LED: LED level adjust(*Factory default is MAX.)
* Caution : When adjusting "IRIS" or "LED", do not use
excessive force.
CAMERA FUNCTION SETTING
