9 Overview

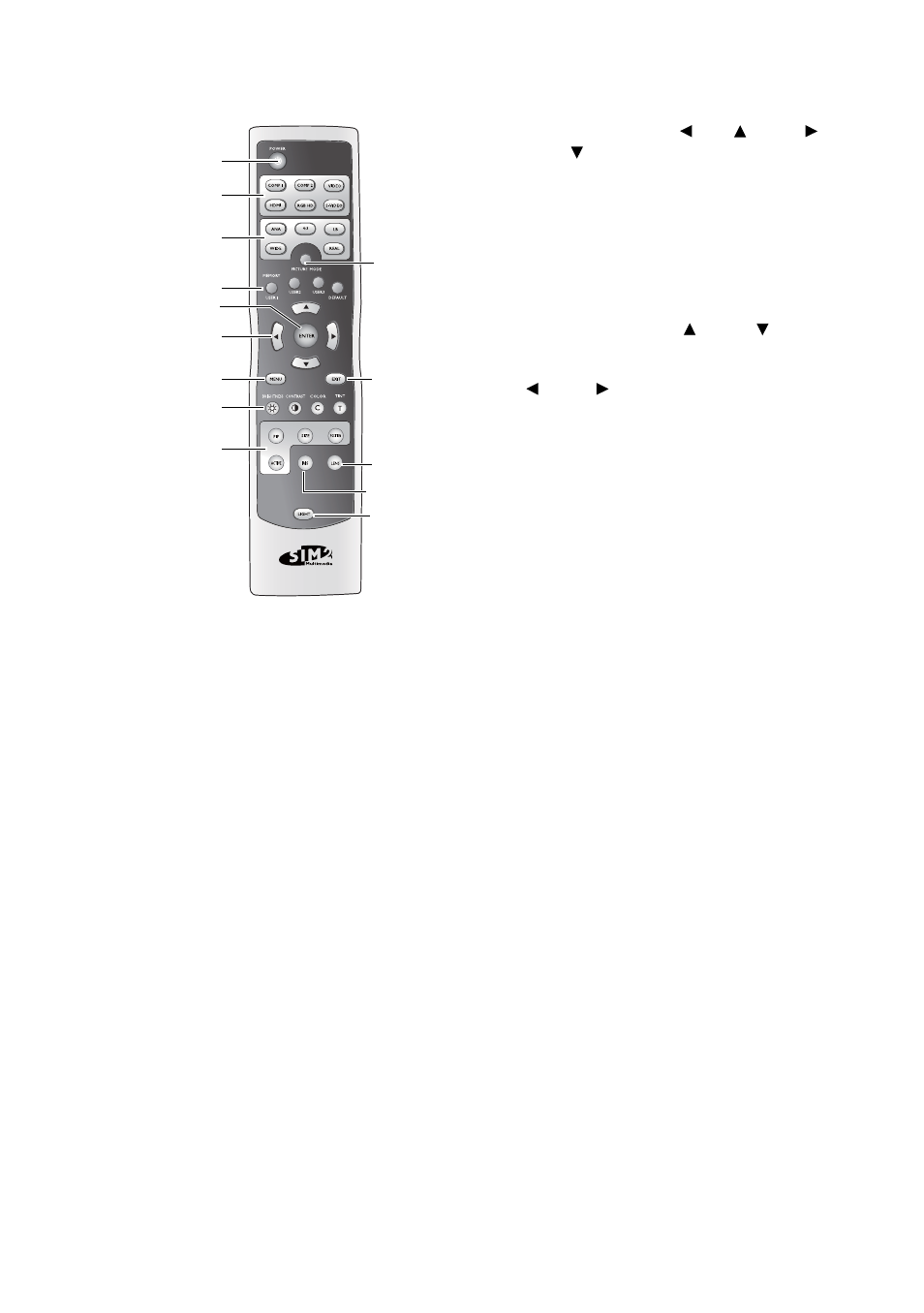

Remote control
7. Arrow buttons (Left , Up , Right ,
Down )
Moves the current On-Screen Display (OSD)
menu selection in the direction of the arrow
being pressed when the OSD menu is
activated. See
"Using the menus" on
page 19 for details.
Adjusts the motorised vertical lens by
moving the image upwards or downwards
on the screen in relation to the orientation
of the projector. (Up ,
Down )
Manually corrects distorted pictures
resulting from an angled projection. (Left
, Right )
8. MENU button
Toggles the On-Screen Display (OSD)
menu on and off. See
"Using the menus"
on page 19 for details.
9. EXIT button
Goes back to previous OSD menus, exits
and saves any changes made using the
On-Screen Display (OSD) menu. See
"Using the menus" on page 19 for details.
10. Picture quality adjustment buttons
(BRIGHTNESS, COLOR, CONTRAST, TINT):
Displays the setting bars for adjustment of
the appropriate picture quality values. See
"Fine-tuning the picture quality" on page 25
for details.
11. Picture window control buttons (PIP, SIZES,
POSITION, ACTIVE)
Displays the Picture In Picture (PIP) windows,
toggles between the main window and
sub-window with ACTIVE, and adjusts the
size and position of the currently active
window with SIZE and POSITION. See
"Displaying more than one image source
simultaneously" on page 32
for details.
12. LENS button
Displays the setting page for the adjustment
of the motorised vertical Lens shift value.
See
"Shifting the projection lens vertically"
on page 11 for details.
13. IRIS button
Displays the setting bar for the adjustment
of the motorised aperture lens IRIS. See
"Adjusting contrast ratio via IRIS" on page 29
for details.
14. LIGHT button
Turns on the remote control backlight for
about 10 seconds. Pressing any other
button while the backlight is on keeps the
backlight on for a further 10 seconds. Press
the button again to turn the backlight off.
1. POWER button
Toggles the projector between standby
and on.
See
"Turning the projector on" on page 18
and "Turning the power off" on page 34 for
details.
2. Source selection buttons (COMP1,
COMP2, VIDEO, HDMI, RGB HD, S-VIDEO)
Selects an input source for display. See
"Selecting an input source" on page 18 for
details.
3. Aspect buttons (ANA, 4:3, LB, WIDE, REAL)
Selects the display aspect ratio. See
"Selecting the aspect ratio" on page 29 for
details.
4. PICTURE MODE button
Selects one of the preset program modes.
See
"Selecting a picture mode" on page 23
for details.
5. MEMORY buttons (USER 1, USER 2, USER 3,
and DEFAULT)
Restores picture settings saved in USER 1,
USER 2, USER 3, or DEFAULT for the current
input source. See
"Setting the User 1/User 2/
User 3 mode" on page 24 for details.
6. ENTER button
Enacts the selected On-Screen Display
(OSD) menu item.
