2

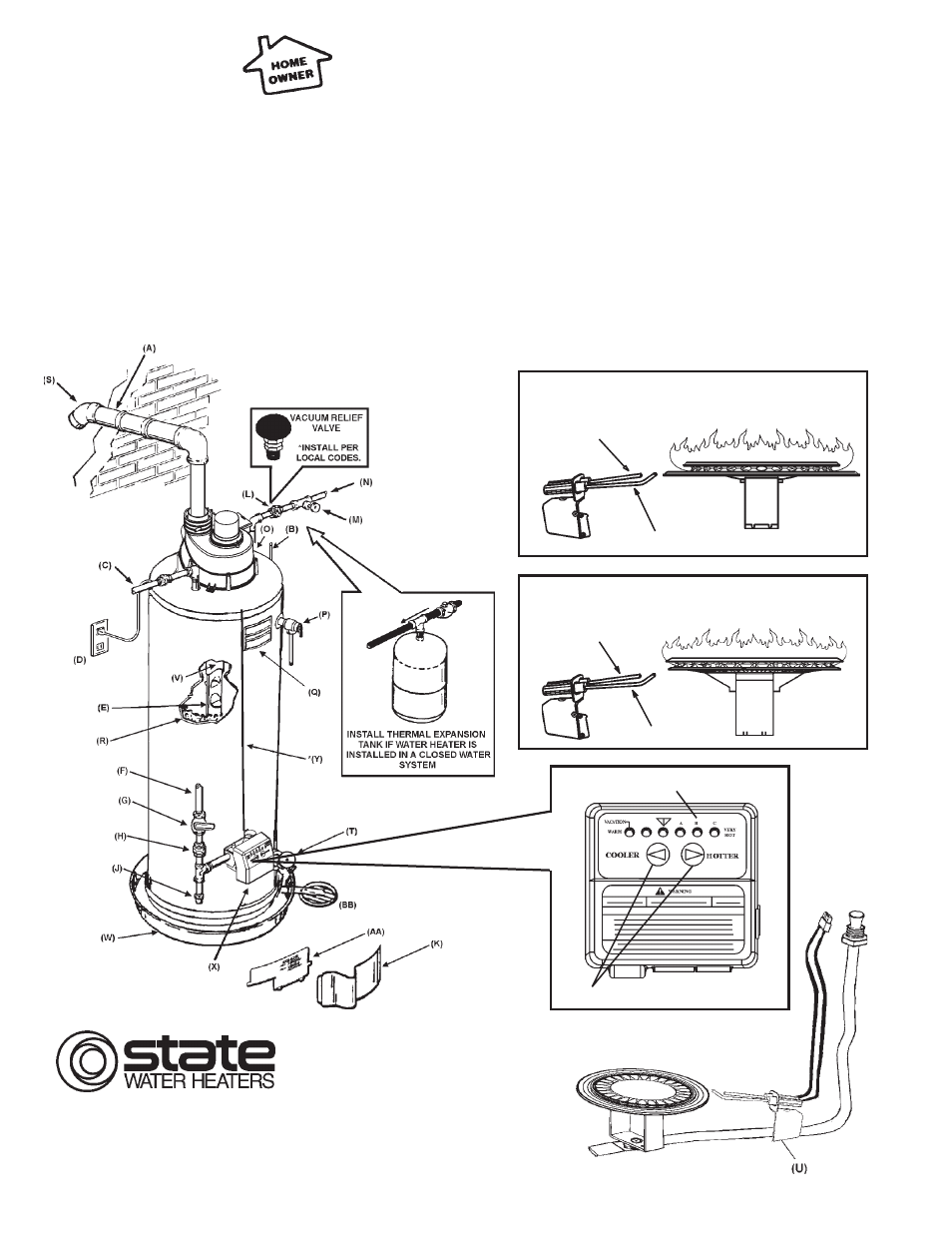

GET TO KNOW YOUR WATER HEATER
(A) VENT PIPE-EXHAUST
(B) ANODE
(C) HOT WATER OUTLET
(D) OUTLET (115 VAC)
(E) FLUE BAFFLE
(F)
GAS SUPPLY
(G) MAIN MANUAL GAS
SHUT OFF VALVE
(H) GROUND JOINT UNION
(J)
DIRT LEG
(K) OUTER DOOR
(L)
UNION
(M) INLET WATER SHUT
OFF VALVE
(N) COLD WATER INLET
REPLACEMENT PARTS AND DELIMING PRODUCTS
Replacement parts and recommended delimer may be ordered
through authorized servicers or distributors. Refer to the Yellow
Pages for where to call or contact State Water Heaters, 500
Lindahl Parkway, Ashland City, TN 37015. When ordering parts,
provide complete model and serial numbers (see rating plate),
quantity and name of part desired (as listed in Figure 1). Standard
hardware items may be purchased locally.
GAS MODELS
WITH HOT SURFACE IGNITION
& - 2” OR 3” PVC VENT CAPABILITY
FIGURE 1
(O) INLET DIP TUBE
(P)
TEMPERATURE AND
PRESSURE RELIEF VALVE
(Q) EMBLEM AND RATING PLATE
(R) INSULATION
(S) VENT TERMINAL
(T)
DRAIN VALVE
(U) HSI BURNER ASSEMBLY
(V) FLUE
(W) DRAIN PAN
(X)
GAS VALVE
(Y) CONTROL HARNESS
(Z) INNER DOOR
(AA) FLOOR DRAIN
(BB) VENT ADAPTER
*CAUTION: 115VAC IN CONTROL HARNESS
AND INSIDE OUTER DOOR
NATURAL HOT SURFACE IGNITER & MAIN BURNER
HOT
SURFACE
IGNITOR
SENSOR
PROPANE HOT SURFACE IGNITER & MAIN BURNER
TEMPERATURE INDICATORS
TEMPERATURE ADJUSTMENT BUTTONS
HOT
SURFACE
IGNITOR
SENSOR
