Page 8
7
Product overview

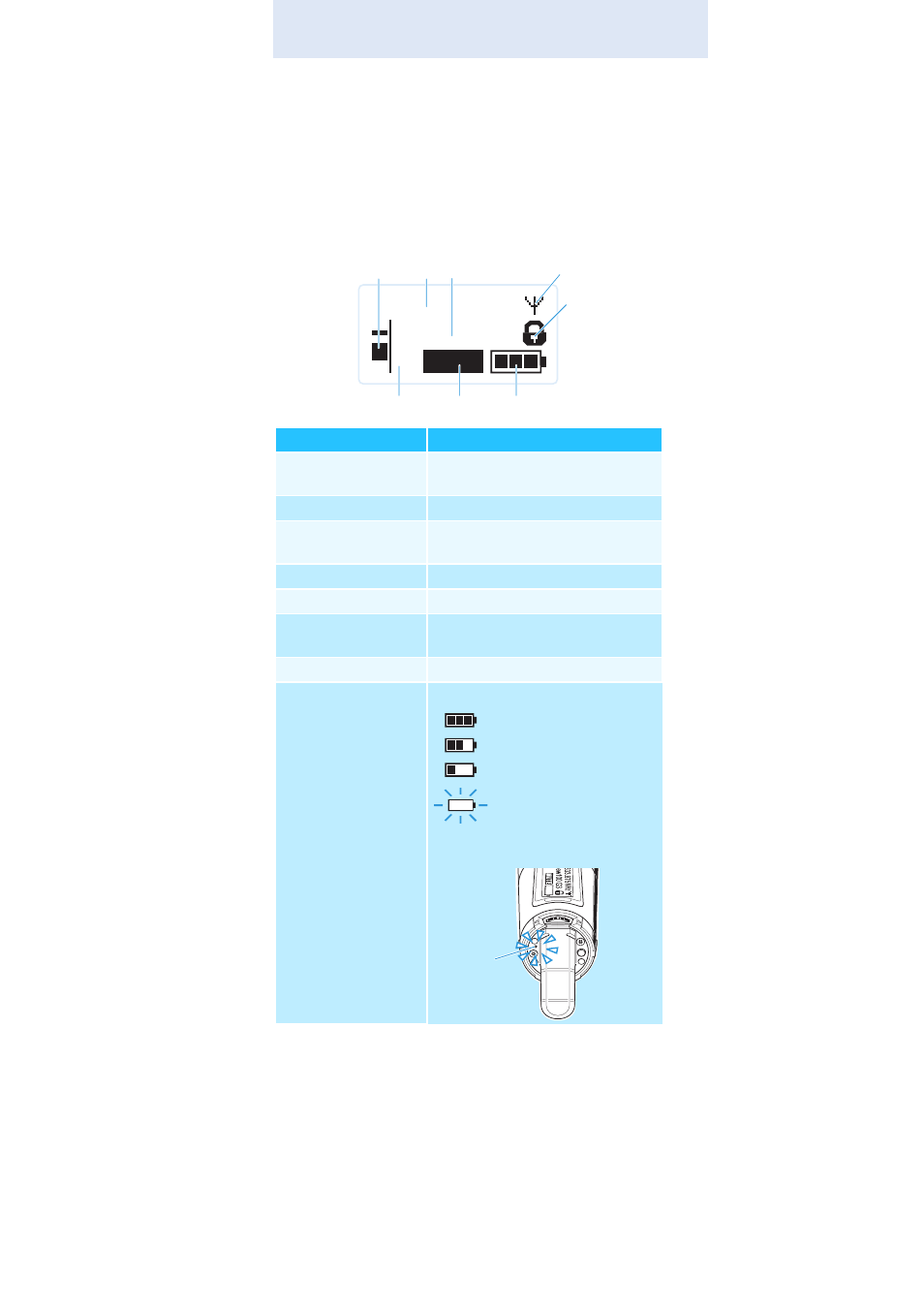

Overview of the displays
After switch-on, the radio microphone displays the stan-
dard display “
Frequency/Name
”. For further illustrations
and examples of the different standard displays, refer to
page 15.
The display backlighting is automatically reduced after
approx. 20 seconds.
Display
Meaning
ቢ
Audio level “
AF
”
Modulation of the radio micro-
phone with peak hold function
ባ
Frequency
Current transmission frequency
ቤ
Name
Freely selectable name of the
transmitter
ብ
Transmission icon RF signal is being transmitted
ቦ
Lock mode icon
Lock mode is activated
ቧ
“
P
”
(pilot tone)
Pilot tone transmission is
activated
ቨ
“
MUTE
”
Audio signal is muted
ቩ
Battery status
Charge status:
approx. 100%
approx. 70%
approx. 30%
charge status is
critical, the red
LOW BATTERY
LED
¾
is flashing:
MHz
533.875
ew100 G3
MUTE
P
AF
ባ ቤ
ቢ
ቦ
ብ
ቩ
ቨ
ቧ
P
¾
