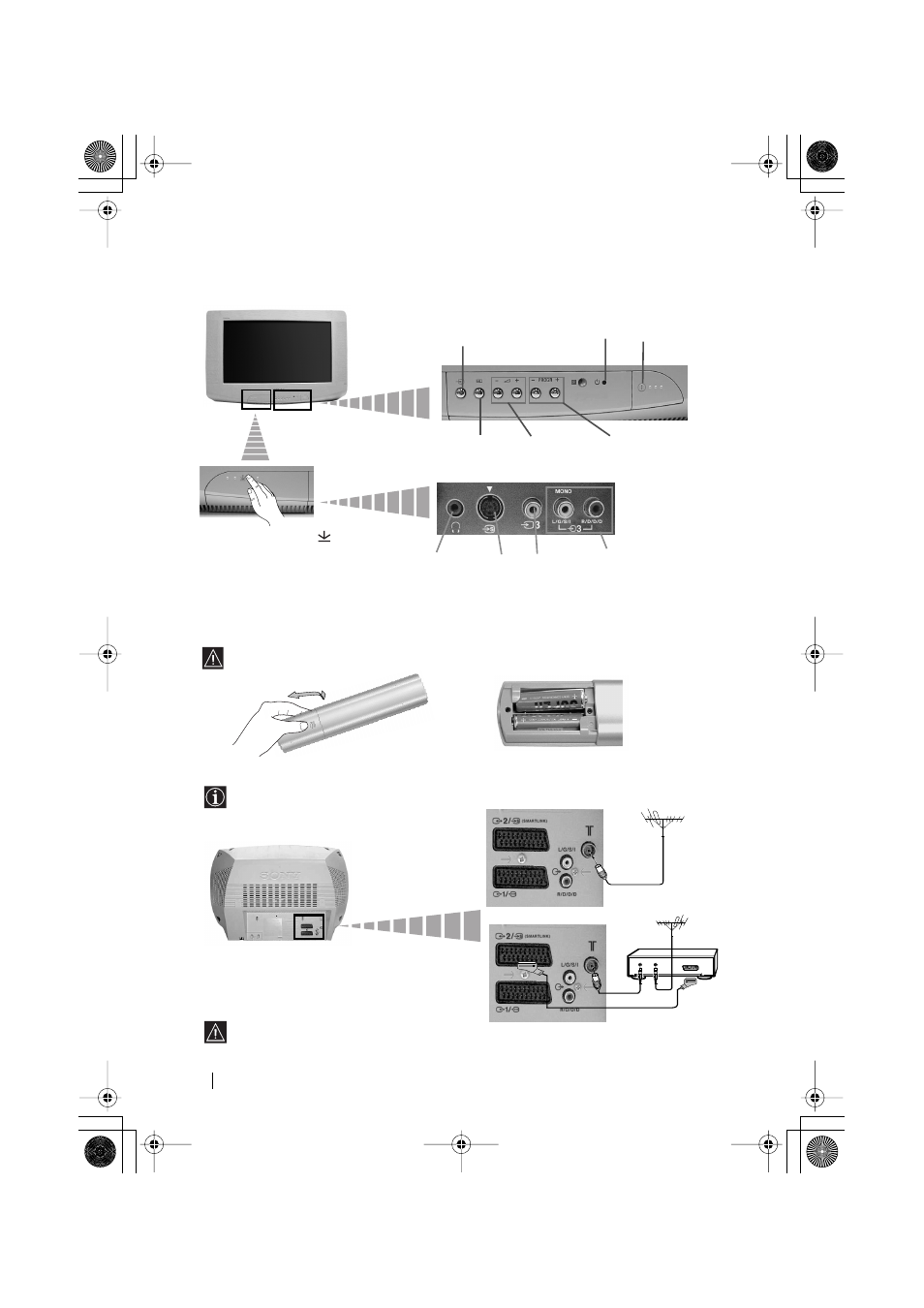

Overview of TV Buttons
Inserting Batteries into the Remote Control
Make sure you insert the supplied batteries using the correct polarities.
Always remember to dispose of used batteries in an environmental friendly way.
Connecting the Aerial and VCR
On/Off switch
Standby
indicator
Programme Up or
Down Buttons (Selects
TV channels)
Selecting
Input source
Volume control
buttons Auto Start
Up Button
Press on the mark on
the door flap to reveal the
control panel.
Video
Input jack
Audio
Input
jacks Headphones
jack S Video
Input
jack
Overview-Installation
or
VCR
Scart lead is optional. For more details of VCR connection, please
refer to the section “Connecting Optional
Equipment” of this instruction manual.
OUT IN
Connecting cables are not supplied.
