Technical Information
Fixture*:
Basin area:
Bathing well, bottom
42 ″ (106.7 cm) x 20″ (50.8 cm)
Bathing well, top 54 ″ (137.2 cm) x 26″ (66 cm)
To overflow:
Water depth
13-3/4 ″ (34.9 cm)
Capacity 55 gal (208.2 L)
* Approximate measurements for comparison only.
Model Door maximum
width Door maximum
height
71120116
71120118
71120126
71120128 57-11/16 ″ (146.5 cm) 55-1/2 ″ (141 cm)
Installation Notes
Install this product according to the installation guide.
End stud positioning is critical if nailing-in flanges are used.
Double studding is recommended for pivot shower door
installations.
Attach grab bars at the specified backer board locations only.
2"
(5.1 cm)
75-1/4"
(191.1 cm)
46" (116.8 cm)
1-1/4" (3.2 cm)
33-1/4" (84.5 cm)
3-1/2"
(8.9 cm)
22-1/2"
(57.2 cm)
30" (76.2 cm)
33-1/4"
(84.5 cm)
15-1/2"
(39.4 cm)
8-1/2"
(21.6 cm)
8-1/2"
(21.6 cm)
8"
(20.3 cm)
14" (35.6 cm)
2" (5.1 cm) D. Drain
2" (5.1 cm)
60" (152.4 cm) Min
60-1/8" (152.7 cm) Max
21"
(53.3 cm)
60"
(152.4 cm)
54"
(137.2 cm)
18" (45.7 cm)
4" (10.2 cm)
Back Wall End Wall
Dimensions Taken From
Center of Grout Lines
1" (2.5 cm)
16" (40.6 cm)
20" (50.8 cm)
1"
(2.5 cm)
3-1/2" (8.9 cm)
1" (2.5 cm)
3-1/2"
(8.9 cm)
6" (15.2 cm)
(Typical)
12" (30.5 cm) -
18" (45.7 cm)
Grab Bar
30" (76.2 cm)
Grab Bar
42"
(106.7 cm)
Grab Bar
Note: Right and left end walls are
the same, only mirrored.
Backer board locations
Attachment Block Locations
(Typically 1" (2.5 cm) Inside Grout Lines)
1" (2.5 cm)
2" (5.1 cm)
2-7/8" (7.3 cm)
Overflow
Detail

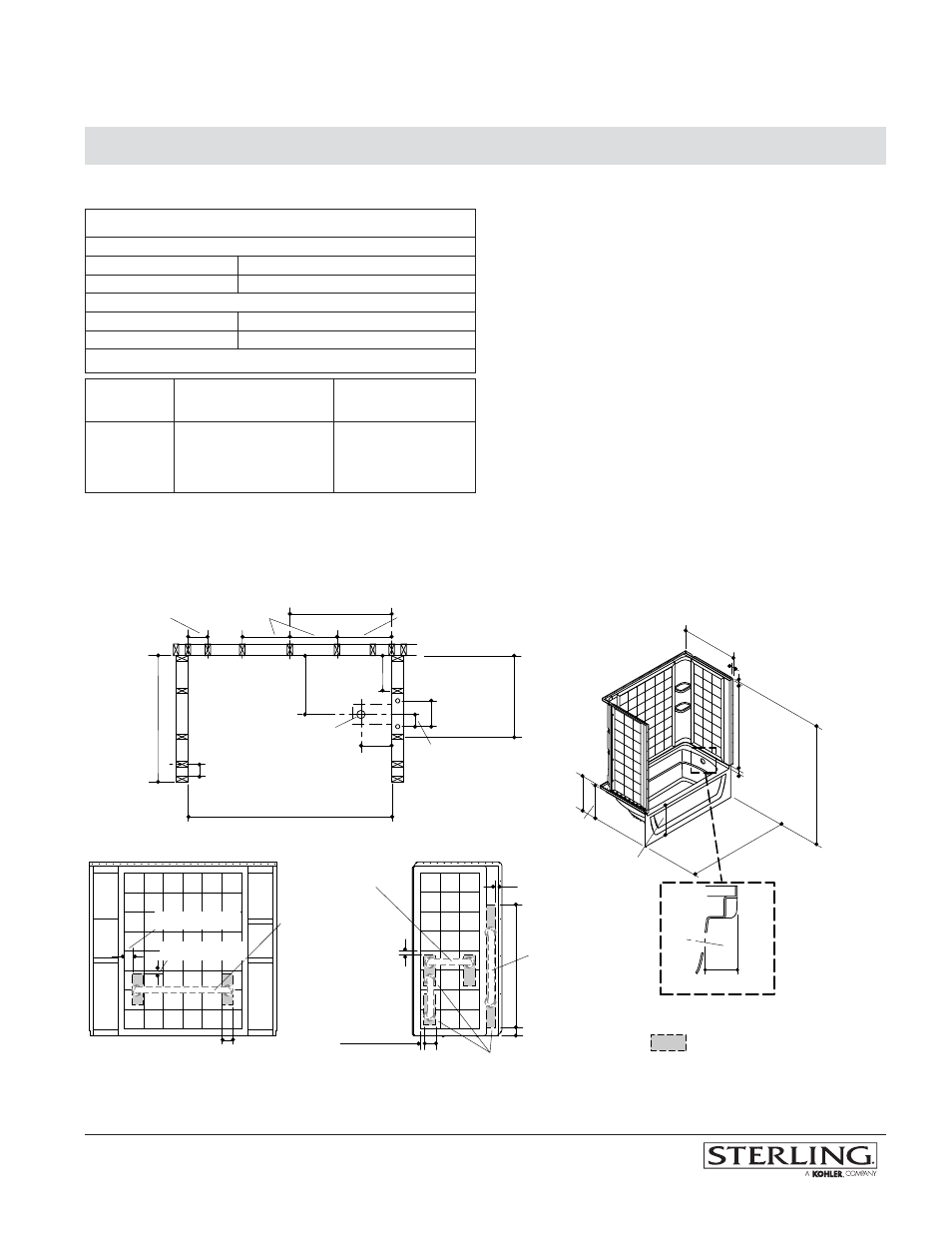

Product Diagram
ENSEMBLE
TM
ENSEMBLE
TM
BATH AND WALL SURROUND WITH BACKER BOARDS
Page 2 of 2
