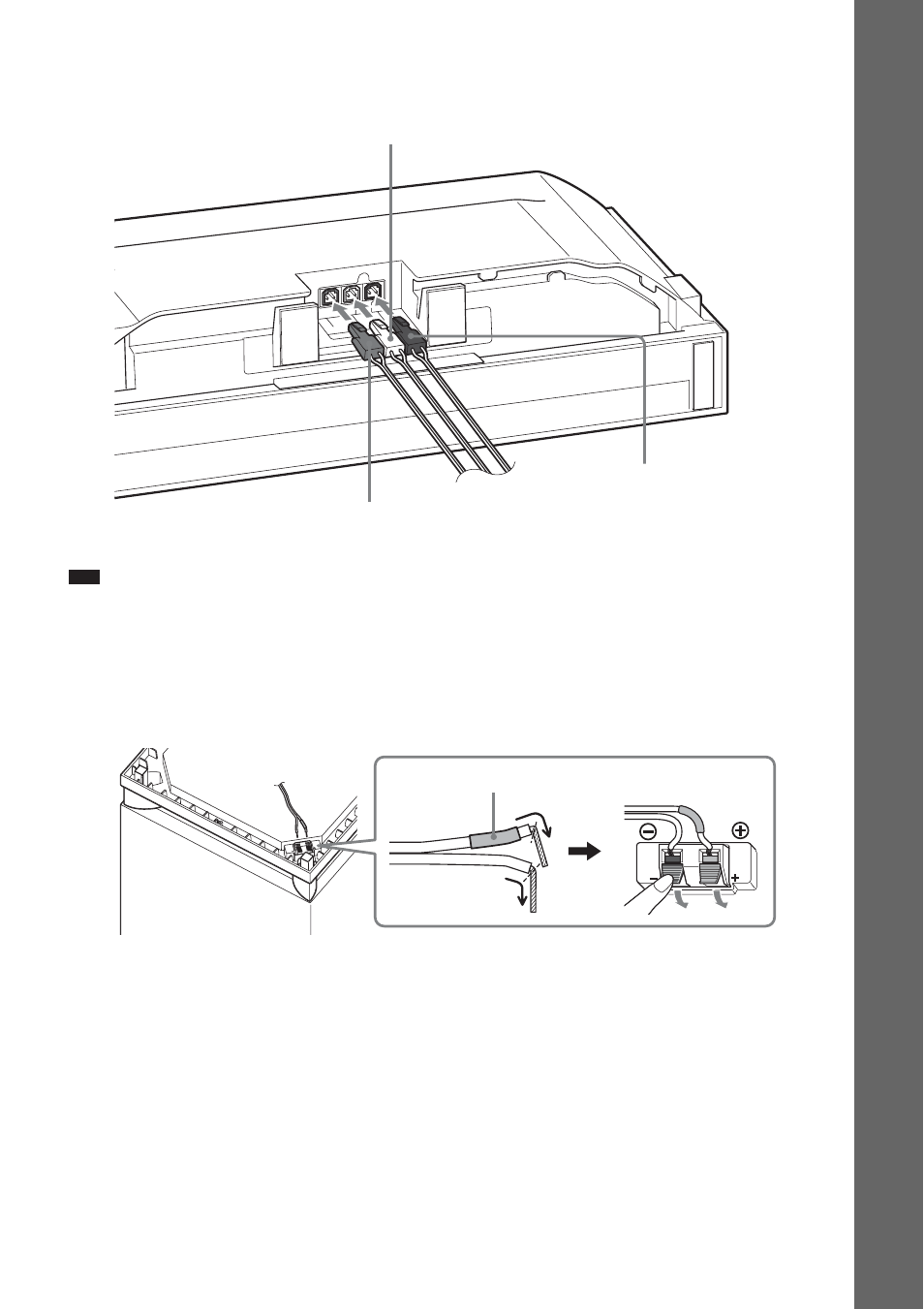

To connect speaker cords to the unit
Fully insert the speaker cord connectors into the unit.
Note
• Make sure to place the unit on a soft thick cloth to prevent damaging the unit.
To connect the speaker cord to the subwoofer
1
Connect the speaker cord to the subwoofer.
FRONT L SUBWOO FER
FRONT R
SPEAKE RS
Purple
(Subwoofer)
Red
(Front right speaker (R))
White
(Front left speaker (L))
Bottom of the subwoofer
Color tube (purple)
