Setup
Before using your monitor, check that the following accessories
are included in your carton:
• Power cord
• Exclusive Power Mac G3/G4 adapter
• Warranty card
• Notes on cleaning the screen’s surface
• This instruction manual
Step 1: Connect your monitor to
your computer
Turn off the monitor and computer before connecting.
Notes
• Do not touch the pins of the video signal cable connector as this might
bend the pins.
• When connecting the video signal cable, check the alignment of the
HD15 connector. Do not force the connector in the wrong way or the
pins might bend.

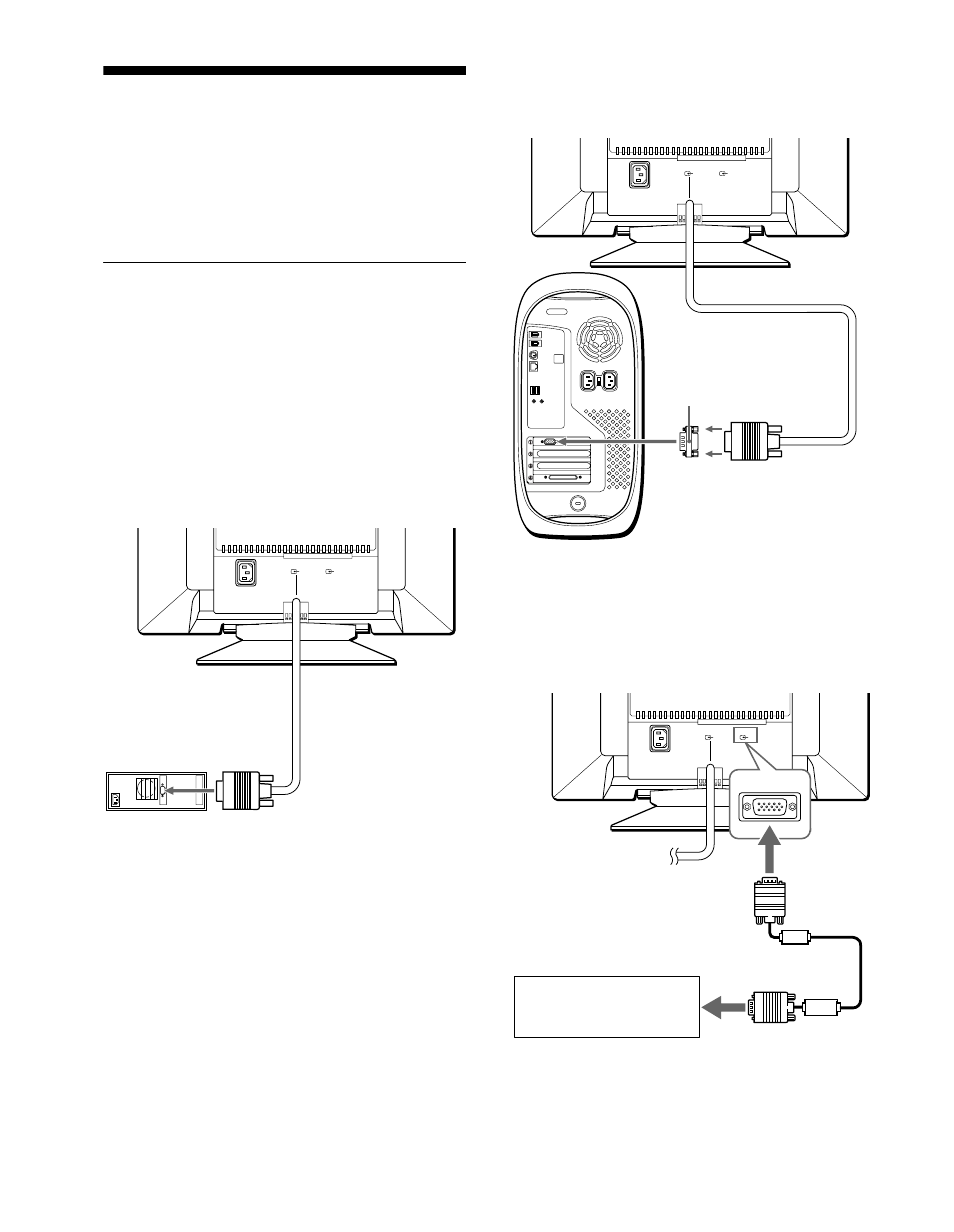

x
Connecting to an IBM PC/AT or compatible
computer
x
Connecting to a Macintosh or compatible
computer
* Connect the supplied adapter to the computer before connecting the
cable. This adapter is compatible only with Power Mac G3/G4
computers that have 3 rows of pins. If you connect to the other version
of Macintosh series computer that has 2 rows of pins, you will need a
different adapter (not supplied).
x
Connecting to a second computer
AC IN
1
(HD15)
2
(HD15)
IBM PC/AT or
compatible computer
to video output
AC IN
1
(HD15)
2
(HD15)
Use the supplied exclusive Power Mac G3/G4 adapter.
exclusive Power Mac G3/G4
adapter (supplied)*
Power Mac G3/G4
to video output
AC IN
1
(HD15)
2
(HD15)
Refer to the preceding examples
to connect your computer.
HD15 video signal
cable (not supplied)
to video input 2
connector (
y 2)
