Specifications
DRS-1500P
GENERAL
Power requirements AC 100V to 240 V, 50/60 Hz
Power consumption 65 W (with all options)
Operating temperature 5° C to 40° C (41° F to 104° F)
Storage temperature -20° C to 60° C (-4° F to 140° F)
Operating humidity Less than 80%
Storage humidity Less than 90%
Weight 6 kg (13lb 3 oz)
Mass 3.9 kg (8 Ib 9 oz), excluding battery and tape
Dimensions (W x H x D) 210 x 130 x 420 mm (8 3 /
8
x 5 1 /
8
x 16 5 /
8
inches)
Tape speed 28.221 mm/s
Recording/Playback time
Standard size 184 min. with PDV-184ME/184N/184MEM
Mini size 40 min. with PDVM-40ME/40N/40MEM
Fast forward/Rewind time
Standard size Less than 3 min. with PDV-184ME/184N/184MEM
Mini size Less than 1 min. with PDVM-40ME/40N/40MEM
Search speed
Shuttle mode Still to ±60 times normal speed
Digital slow mode ±0.5 times normal speed
VIDEO PERFORMANCE
Bandwidth (via analogue component I/O)
Luminance 25 Hz to 5.0 MHz +1.0/-1.5 dB
Chrominance 25 Hz to 2.0 MHz +1.0/-2.0 dB
S/N ratio (via analogue component I/O) More than 55 dB
K-factor (K2T, KPB)
Less than 2.0%
Y/C delay Less than 30 ns
AUDIO PERFORMANCE
Frequency response
2CH mode (48kHz/16-bit) 20 Hz to 20 kHz±1.0 dB
4CH mode (32kHz/12-bit) 20 Hz to 14.5 kHz±1.0 dB
Dynamic range More than 87 dB
Distortion (THD + N) Less than 0.07%
INPUT SIGNALS
Video (Analogue)
REF. Video
0.3 Vp-p, 75 Ω , sync negative
(BNC x 2, loop-through connection)
Video
(BNC x 2, loop-through connection)
*1 Composite, 1.0 Vp-p, 75 Ω , sync negative
* using optional DSBK-1504
Component (BNC x 3) *1 Y: 1.0 Vp-p, 75 Ω , sync negative
* using optional DSBK-1504 R-Y: 0.7 Vp-p, 75 Ω (100%)
B-Y: 0.7 Vp-p, 75 Ω (100%)
S-Video (BNC x 2) *1 Y: 1.0 Vp-p, 75 Ω , sync negative
* using optional DSBK-1504 C: 0.3 Vp-p, 75 Ω (at burst level)
Video (Digital)
SDI (BNC x 1)
*2 Conforms to Serial Digital Interface (270 Mb/s),
* using optional DSBK-1501 ITU-R BT.656
SDTI (QSDI) (BNC x 1) *2 Conforms to SDTI (270 Mb/s),
* using optional DSBK-1501 SMPTE 305M/322M
i.LINK (DV In/Out) (6-pin x 1) IEEE 1394-based
* using optional DSBK-1503
Audio (Analogue)
Audio (XLR 3-pin female x 2)
-6/-3/0/+4 dBu (selectable by menu),
* using optional DSBK-1504 high impedance
Audio (Digital)
AES/EBU (BNC x 2)
75 Ω , unbalanced
* using optional DSBK-1501
Time Code
Time Code In (BNC x 1)
0.5 Vp-p to Vp-p, 3k Ω , unbalanced
OUTPUT SIGNALS 6-pin (with lock)
Video (Analogue)
Video 1/2/3(SUPER)(BNC x 3)
*3 Composite, 1.0 Vp-p, 75 Ω , sync negative
Component (BNC x 3)* 3 Y: 1.0 Vp-p, 75 Ω , sync negative
R-Y: 0.7 Vp-p, 75 Ω (100%)
B-Y: 0.7 Vp-p, 75 Ω (100%)
S-Video (BNC x 2)* 3 Y: 1.0 Vp-p, 75 Ω , sync negative
C: 0.3 Vp-p, 75 Ω (at burst level)
Video (Digital)
SDI (BNC x 2)
*4 Conforms to Serial Digital Interface (270 Mb/s),
* using optional DSBK-1501 ITU-R BT.656
SDTI (QSDI) (BNC x 2) *4 Conforms to SDTI (270 Mb/s),
* using optional DSBK-1501 SMPTE 305M/322M
i.LINK (DV In/Out) (6-pin x 1) IEEE 1394-based
* using optional DSBK-1503
Audio (Analogue)
Audio (XLR 3-pin male x 2)
-6/-3/0/+4 dBu (selectable by menu),
Monitor (RCA x 1) *5 - ∞ to -9 dBu, 47k Ω , unbalanced (-18 dBFS)
Headphone
(JM-60 headphone jack x 1)
- ∞ to -11 dBu, 8 Ω , unbalanced (-18 dBFS)
Audio (Digital)
AES/EBU (BNC x 2)
75 Ω , unbalanced
* using optional DSBK-1501
Time Code
Time Code Out (BNC x 1)
2.2 Vp-p, 75 Ω , unbalanced
REMOTE
RS-422A D-sub-9-pin (female) x 1
Control S (SIRCS) Stereo mini jack x 1
SUPPLIED ACCESSORIES
AC power cord x 1
Operating instructions x 1

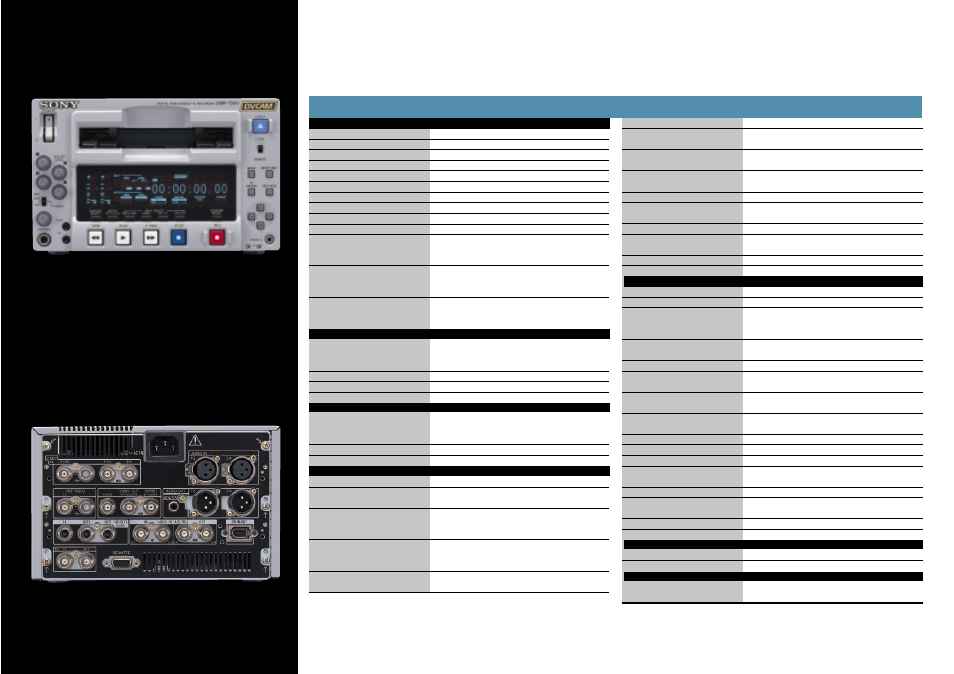

Front View
Rear View (with full options)
(with full options)
*1 Video, Component and S-Video inputs share the same BNC connectors. *2: SDI and SDTI (QSDI) inputs share the same BNC connectors. *3: Video, Component and S-Video outputs share
the same BNC connectors. *4: SDI and SDTI (QSDI) outputs share the same BNC connectors. *5: The volume of monitor can be controlled by the PHONE LEVEL control Knob.
