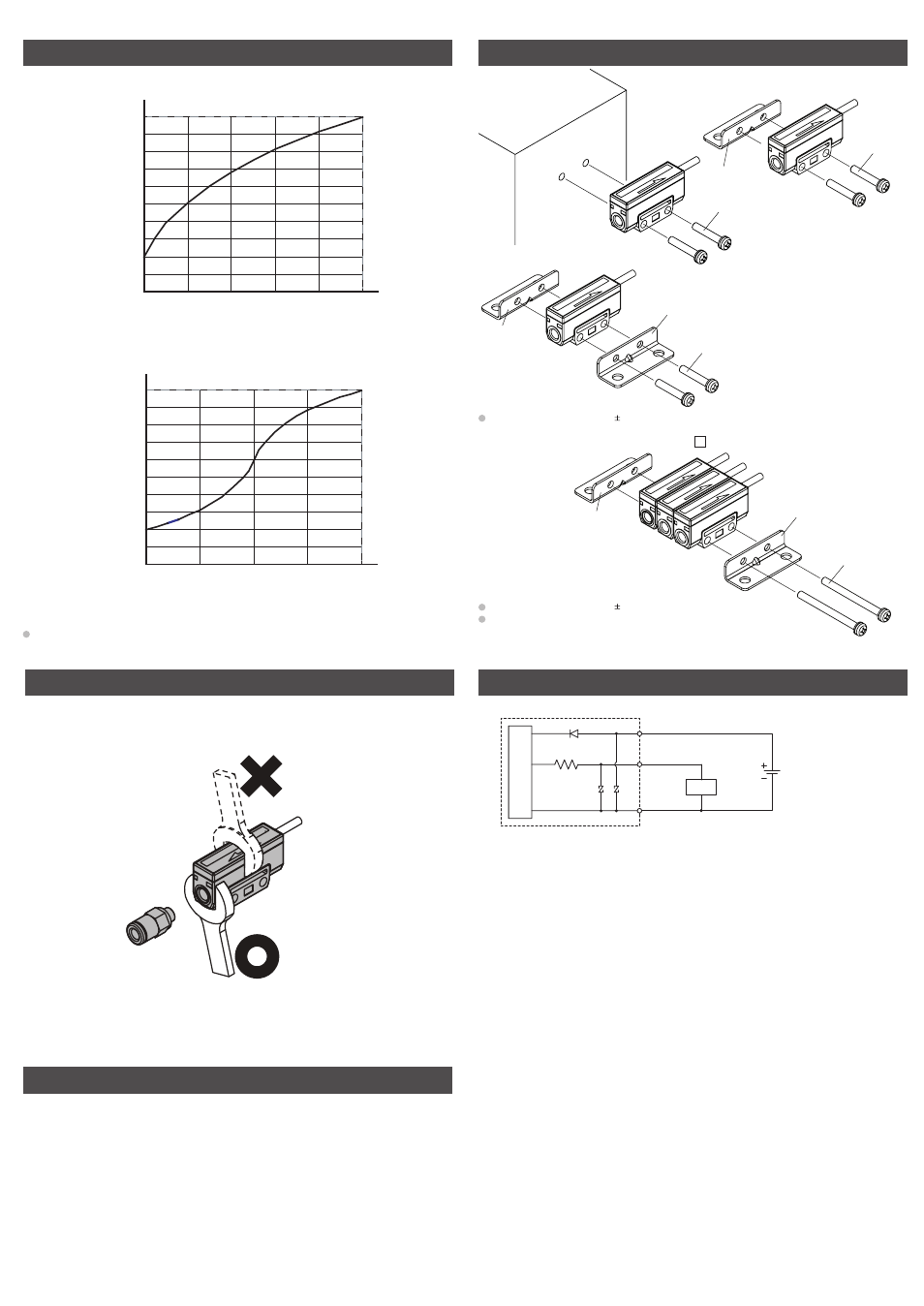

Mounting and Installation (unit: mm)
Mounting screw
L-type bracket
(Through hole)
L-type bracket
(Tapped)
Manifold mount (using ZS-36-A )
L-type bracket
(Through hole)
Mounting screw
(M3 x 15L)
L-type bracket
(Tapped)
Thread tightening torque is 0.32 0.02N•m.
Mounting screw
Mount on one side Mount on direct
Mounting screw
(M3 x 15L)
L-type bracket
(Tapped)
Mount on both sides
Thread tightening torque is 0.32 0.02N•m.
Depending on fittings, they interfere each other and not possible for mounting
in series by using bracket.
Piping Circuit
Load
1k Ω
Blue DC(-)
Brown DC(+)
Black OUT (Analog output) 12 to 24VDC
Analog output : 1 to 5V
Output impedance : Approx. 1k
Ω
Main Circuit
Flow characteristic chart (Reference)
PFMV5(05/10/30)
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
0% 20% 40% 60% 80% 100%
Maximum
rated flow
Flow
PFMV5(05/10/30)F
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
-100% -50% 0% 50% 100%
Maximum
rated flow
Flow
Analog output voltage[V]
Analog output voltage[V]
Recommended fitting list
One-Touch fitting
• Male Connector (One-Touch Male Connector)/KQ2H04-M5
• Hexagon Socket head Male Connector/KQ2S04-M5
• Male Elbow/KQ2L04-M5
One-Touch mini fittings
• Male Connector/KJH04-M5
• Hexagon Socket head Male Connector/KJS04-M5
• Male Elbow/KJL04-M5
PFMV5 series recommended fitting list
Miniature fitting
• Barb fittings for nylon tubing/M-5AN-4/M-5AN-6
During installation of the flow sensor to the pipe, hold the body with specified
spanner
Tightening torque to mount the fitting is 1 to 1.5N . m
Refer to catalog for details of flow characteristic.
