24 US
Ge
tting Star
te
d

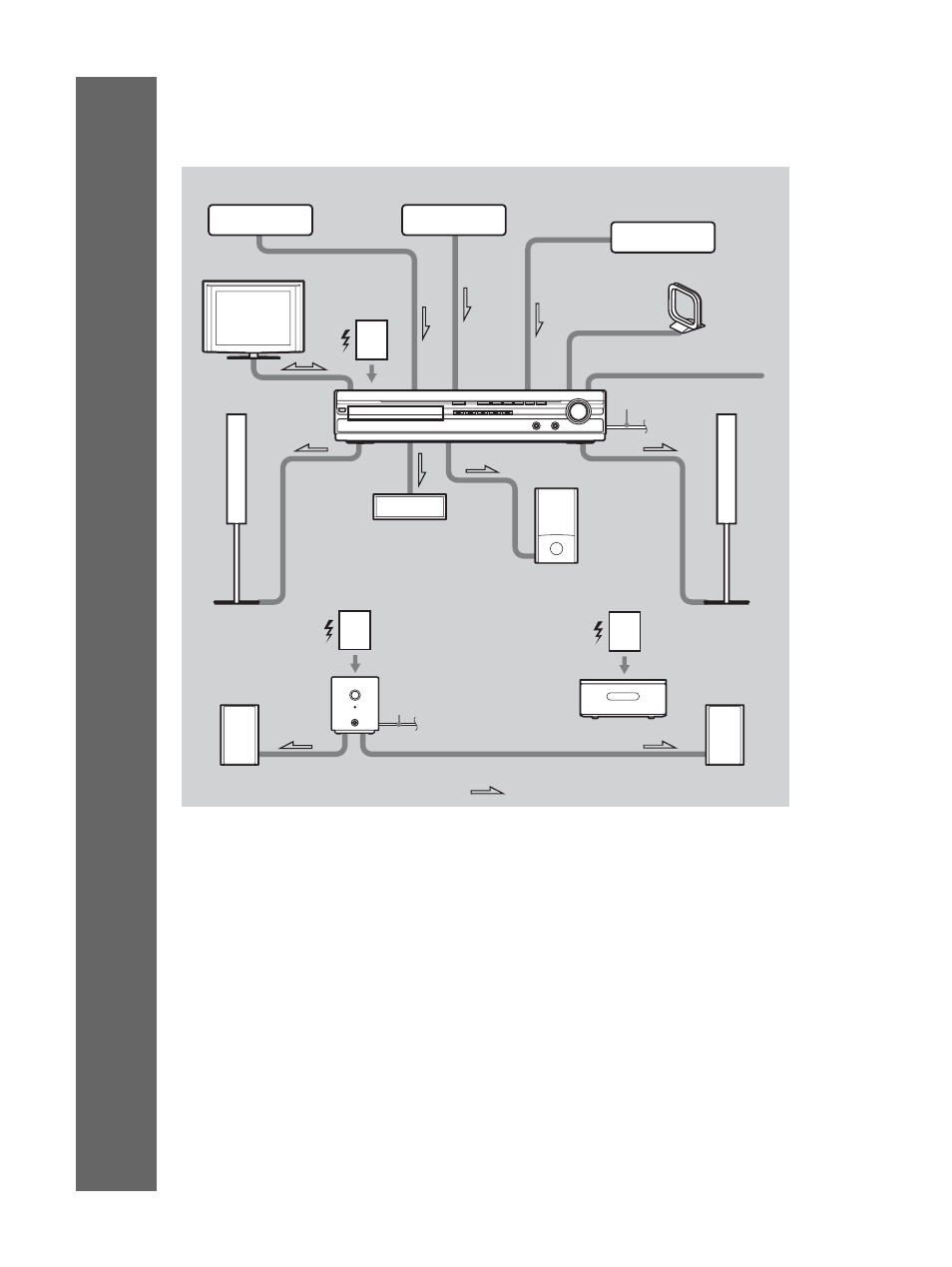

DAV-HDX576WF
4 AM loop antenna (aerial)
1 Subwoofer
6 AC power cord (mains lead)
4 FM wire antenna (aerial)
2 TV
1 Front speaker (L)
1 Center speaker
1 Front speaker (R)
1 Surround speaker (L) 1 Surround speaker (R)
:Signal flow
3 DIGITAL MEDIA
PORT adapter 3 Portable audio source
3 VCR, digital satellite receiver,
or PlayStation, etc.
5 Wireless
transceiver
5 Wireless
transceiver
6 AC power cord
(mains lead)
S-AIR receiver
Surround amplifier
5 Wireless
transceiver
