4: Connecting the antennas

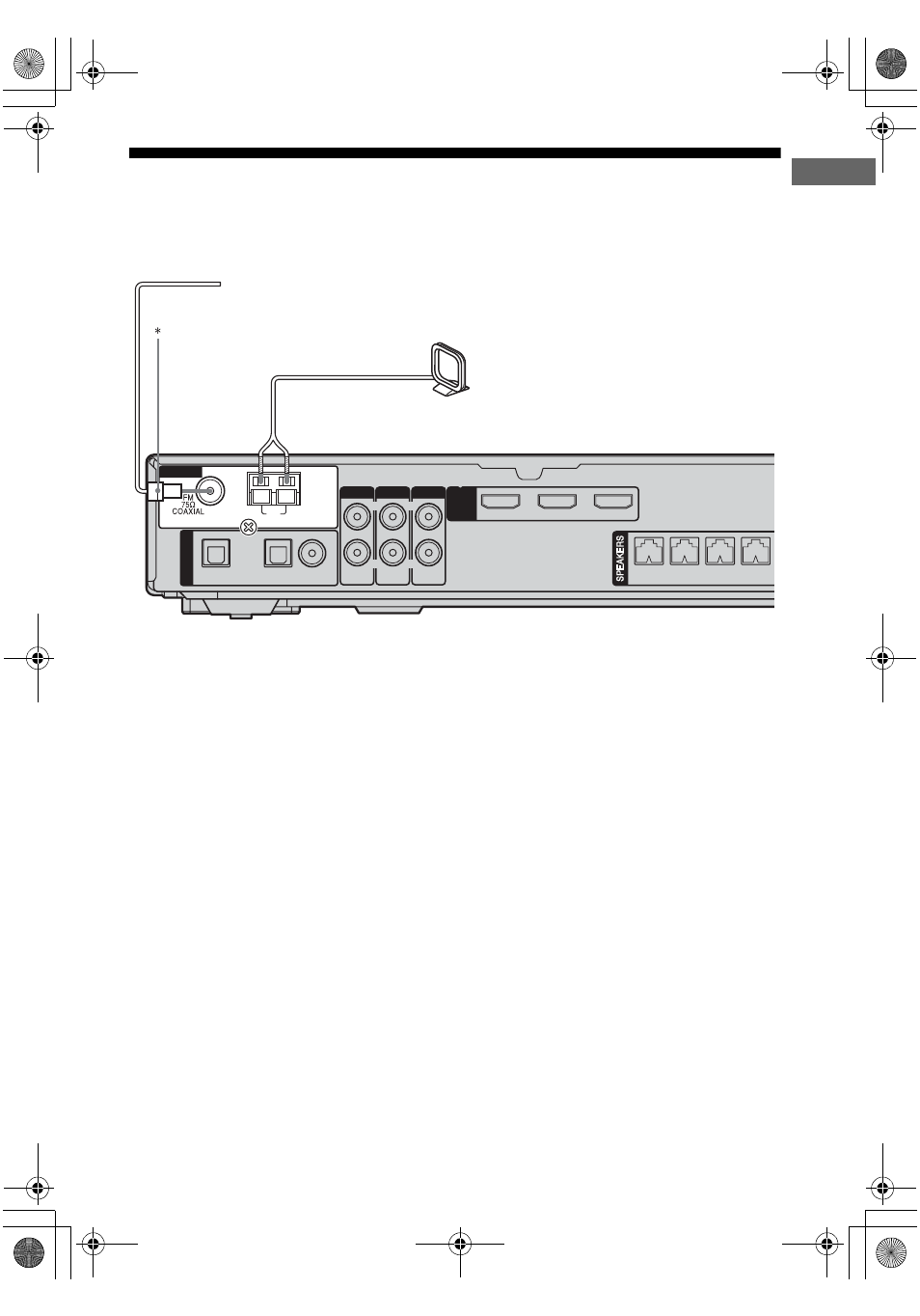

Connect the supplied AM loop antenna and
FM wire antenna.
* The shape of the connector varies depending on
the area code of this receiver.
Notes
• To prevent noise pickup, keep the AM loop antenna
away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as
horizontal as possible.
SA-CD/CD
AUDIO IN
VIDEO 2
AUDIO IN
VIDEO 1
HDMI
AUDIO IN
L
R
L
R
DVD
COAX IN OPT IN
SA-CD/CD
OPT IN
VIDEO 2
DIGITAL
DVD IN VIDEO 2 IN MONITOR OUT
FRONT R
– +
FRONT L
– + – + – +
SUR R SUR L
ANTENNA
AM
U
FM wire antenna (supplied)
AM loop antenna (supplied)
