PRODUCT SPECIFICATION SHEET
SERIES DESCRIPTION CATEGORY
XM 6 CHANNEL 400W POWERED MIXER POWERED MIXERS
XM410 SPECIFICATIONS
Rated Output power .......................... 200W/4Ω per amplifier
Frequency response .......................... 20Hz~20KHz+/-0.5dB@1W
Output into 8Ω (AMP OUT): 20
Hz~20KHz+/-0.4dBu @+4dB
Output into 10kΩ (MAIN OUT,
MONITOR OUT, AUX 2 SEND).
Total Harmonic Distortion .................. Less than 0.06% @
20Hz~20KHz, 75W output into
4Ω (AMP OUT); Less than
0.1%@20 Hz~20KHz, +4dBu
output into 10KΩ (MAIN OUT,
MON OUT, AUX 2 SEND).
HUM & Noise ................................... -121dB equivalent input noise
(Average, RS+150Ω) ......................... -100dB residual output noise
(MAIN OUT, MONITOR OUT,
AUX 2 OUT)
(with 22Hz~22KHz BPF) .................... -79dB (MAIN OUT, MONITOR
OUT) Master level control at
maximum, all channel level
controls at minimum. -79dB
(AUX 2) Master level control
at maximum, all channel level
controls at minimum.
Maximum Voltage Gain ...................... 67dB CH IN (MIC) to AMP OUT
48dB CH IN (MIC) to MAIN OUT, MONITOR OUT
54dB CH IN (MIC) to AUX 2 OUT
30dB CH IN (MIC) to REC OUT
17dB CH IN (LINE) to MAIN OUT, MONITOR OUT
7dB AUX IN to MAIN OUT
24dB TAPE IN to MAIN OUT
Crosstalk, 1KHz ............................... 70dB adjacent input, 70dB
input to output
Input Channel Equalization
HIGH ................................. 12KHz shelving (+/- 15dB
maximum)
MID ................................... 2.5KHz peaking (+/- 12dB
maximum)
LOW .................................. 80Hz shelving (+/- 15dB
maximum)
Meters ............................................ 7 POINT LED METERS (-20,
-10, -7, -4, 0, +3, +6dB)
Graphic Equalizer ............................. 7 bands (63, 160, 400, 1K,
2.5K, 6.4K, 16KHz)
Internal DSP Effects ......................... 24 BIT - 10 Presets each:
1 - Performance; 2 - Hall
Reverb, 3 - Plate Reverb;
4 - Spring Reverb; 5 - Echo;
6 - Flange + Verb; 7 - Chorus
+ Verb; 8 - Echo + Verb; 9-
Chorus; 10- Flange
Phantom Power ................................ +36V
CLIP Indicators ................................ Turn on: THD> 0.1%
Foot Switch ..................................... DIGITAL EFFECT MUTE: ON/OFF
Power Requirement .......................... 100W-240V, 50/60Hz
Power Consumption .......................... 260W 1/8 power, 600W MAX.
Weight ............................................ 31 lbs. (14Kg)
Dimensions (W x H x D) .................... 21” x 14” x 13-3/4”
534mm x 356mm x 350mm
ARCHITECT’S & ENGINEER’S SPECIFICATIONS
The Samson XM410 shall be a 6 channel powered mixer.
There shall be 6 mic/line channels each with 3 bands of
EQ. Each channel shall have 2 aux sends, 1 to the monitor
output and 1 to the DSP. The DSP shall have 99 programs
of digital effects with a level control to send the DSP signal
to the main bus. In the Main section there shall be an Aux
input going directly to the main amplifier section. There shall
be a tape in and a tape out with level control. There shall be
a main mixer output before the amplifier section. The unit
shall supply phantom power to the mic inputs. There shall
be a monitor output getting its signal from the aux 1 send.
There shall be a 7 band EQ getting its signal from the main
bus. There shall be a 3 position switch to feed the main and
monitor bus to the 2 amplifiers as: Main / Main to amp 1 and
2, Main / Monitor to amp 1 and 2, and Main signal / bridged
to amp 1 and 2. There shall be output metering on LED’s
with clip indicators.

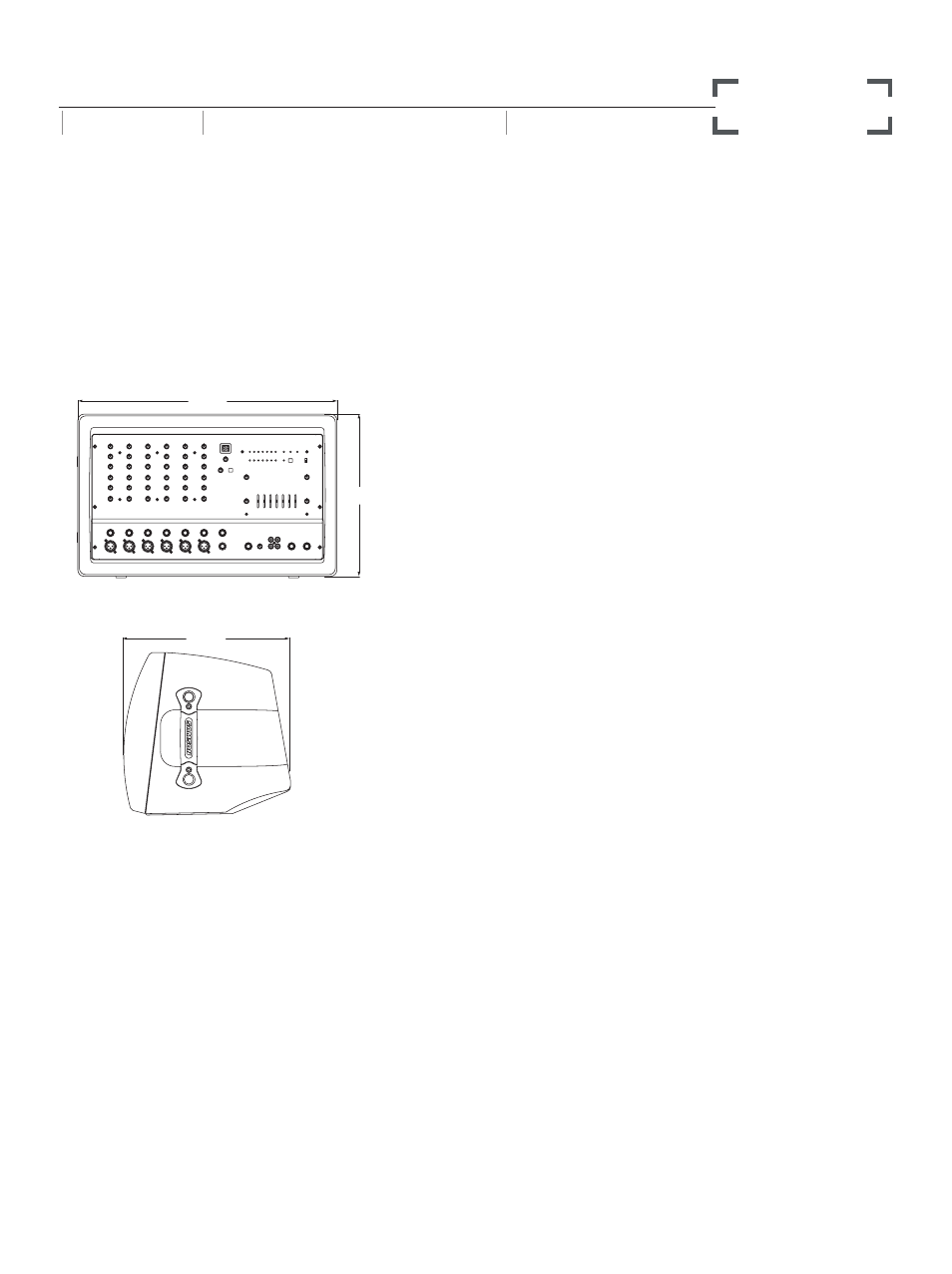

540mm
338mm
FRONT
SIDE
348mm
FEATURES
(continued)
> Brilliant sound quality from the advanced circuit design,
utilizing low noise operational amplifiers.
> Durable ABS plastic enclosure is road tough insuring reliable
performance from night to night and venue to venue.
> Convenient oversize, sure grip handle make the unit
easy to carry.
> Three-year extended warranty.
