SECO-LARM 36 IR LED Day/Night Bullet Cameras
SECO-LARM U.S.A., Inc. 3
1. Run a 12VDC power-supply wire and a video
cable with a male BNC connector through the wall
to where the camera will be mounted
(if necessary).
2. Connect the camera to the 12VDC power supply.
Do not cut the DC jack or female BNC
connector as the warranty will be voided. If
needed, use the included
SECO-LARM DC plug with terminal block.
3. Connect the camera’s female BNC connector to
the video cable’s male BNC connector.
While watching the monitor, hold the camera
base against the wall where it is to be mounted,
then twist the camera until it is certain that this
mounting location is correct. Use a pencil to mark
the location screw holes in the base.
Installation:
5. Mount the camera by using the four included
mounting screws to secure the camera base to the
wall. If the wall is made of drywall, brick, or similar
material, it may be necessary to use the four
included screw anchors.
6. Turn the monitor on and make sure the camera is
sending the proper video signal.
7. The camera has 3-axis angle adjustment. Use the
included allen wrenches to loosen the adjustment
screws as needed. To adjust the horizontal axis,
the adjustment ring must also be loosened. After all
angle adjustments are made, re-tighten the
adjustment ring and the adjustment screws.
8. Re-tighten the adjustment knob and screws.
9. Do a final test of the video camera and monitor.
1. Please read this manual carefully and keep it for
future reference.
2. Use the camera within given temperature and
electrical limits.
3. Do not aim the LED light directly at the eyes
when the LEDs are on.
4. Do not point the camera at the sun. Heat could
damage the camera, even when not in use.
5. Do not mount the camera in areas exposed to
radiation, strong magnetic fields, or strong
electrical signals.*
6. Do not open or disassemble the camera. There
are no user-serviceable parts inside.
7. Do not drop the camera or subject it to strong
vibrations.
Note: Many video monitors produce strong
electromagnetic fields close to the display CRT,
especially when the monitor is turned on or during
de-gaussing, which occurs automatically with many
monitors when the monitor is turned on.
Before Starting:
Important:
Do not remove label or open case as warranty will be voided.

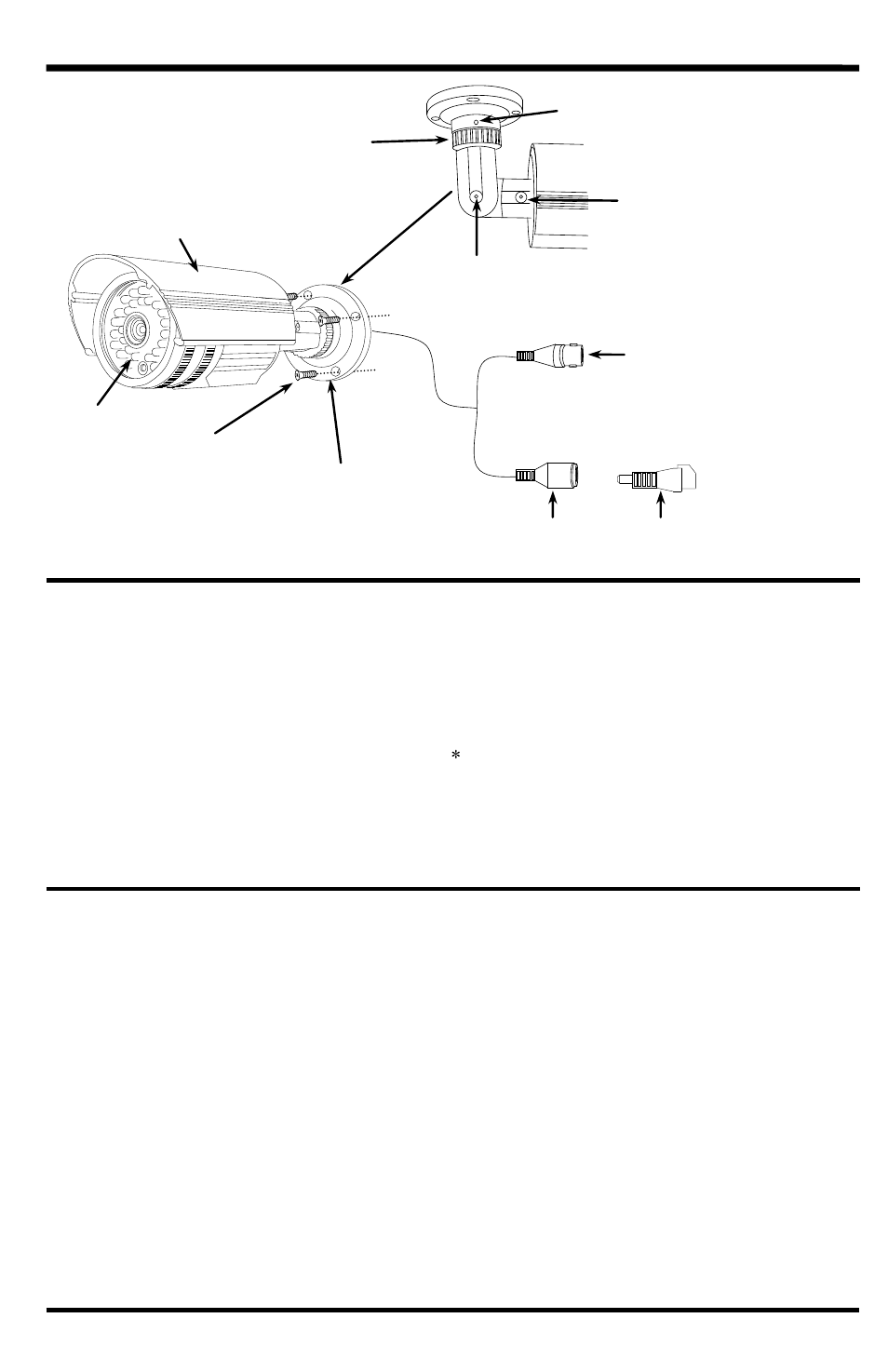

Overview:
IR LEDs
Sunshield
Mounting screw
Female BNC
connector
Camera base
Adjustment ring
Adjustment screw
Adjustment screw
Adjustment screw
Important:
Do not cut DC jack or female
BNC connector as warranty
will be voided.
DC jack DC plug with
terminal block
