86 Stellar Cable Hoist Owner’s Manual
1
4
3
2
5

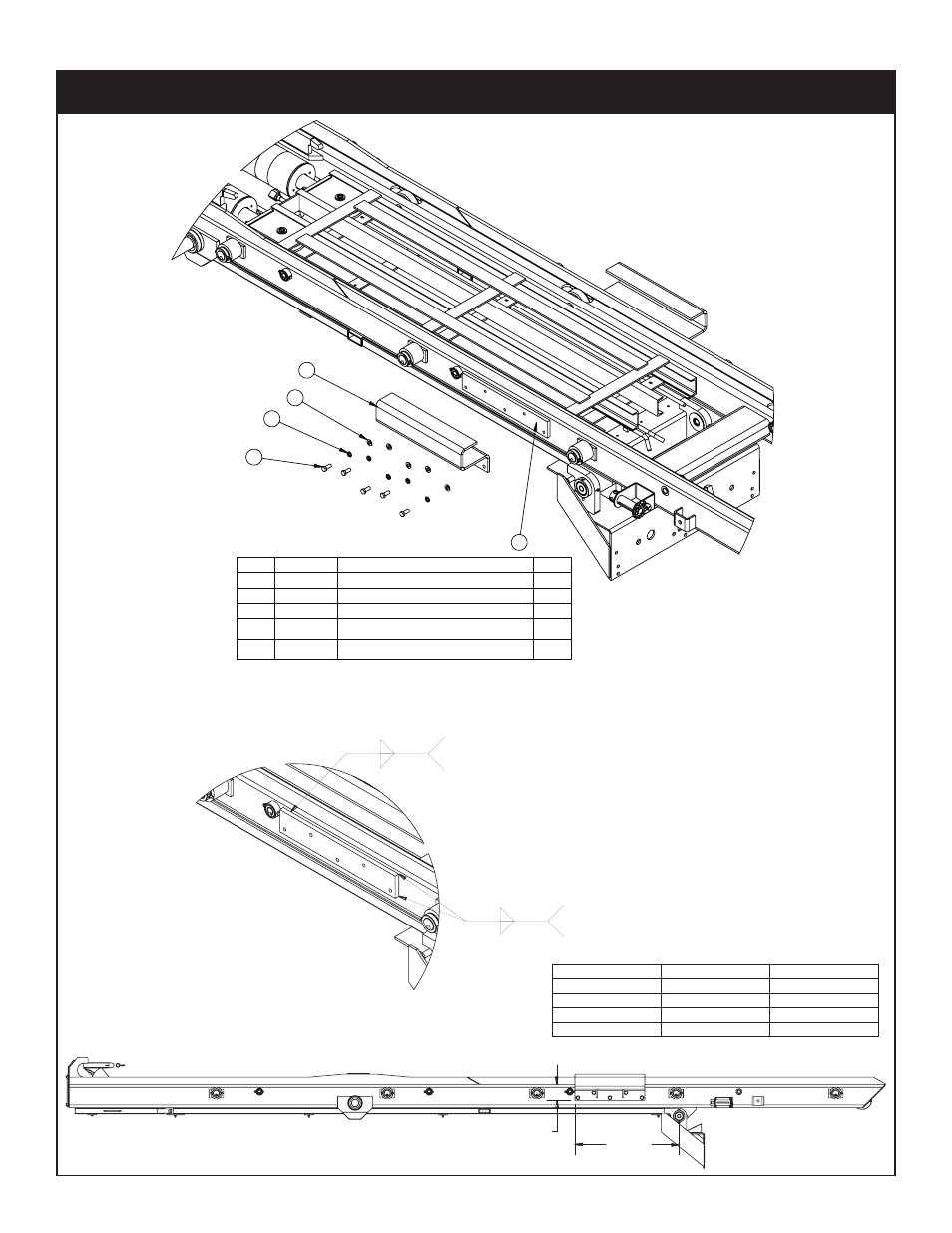

ITEM PART DESCRIPTION QTY.
1 42917PC HOLD DOWN WELDMENT 2
2 0356 CAP SCR 0.63-11X1.50 HHGR8 10
3 0526 WASHER 0.63 LOCK 10
4 C5902 WASHER 0.63 SAE FLAT YELLOW GR8 10
5 45859 FLAT TAP HOLD DOWN KP60 2
DIM. A
DIM. B
.25 1
.25 1
TYP. (2)
.25 2-5.5
.25 2-5.5
TYP. (2)
PN 42918
LENGTH/MODEL DIM. A DIM. B
174 35.75"
182/194 43.75"
IO 5.50"
OR 8.00"
Bolted Hold Down (Optional) - PN 42918
