73 Assembly Drawings 73
35.50
66.38
15.44
19.00
16.00
.25
TYP(2)
.19
TYP (2)
.25
TYP(2)
3
1
4
2
ITEM PART DESCRIPTION QTY.
1 45572 TUBE 3.00X2.00X0.25WX66.00 1
2 43138 PLATE 0.19X2.63X1.63 2
3 45573 TUBE 3.00X2.00X0.25WX22.63 2
4 21447 TUBE 3.00X2.00X0.25WX14.00 2
PN 45574
22.00
.25
TYP. 4
THREE SIDES
OF TUBE
(.31)
W=.47
TYP. 4

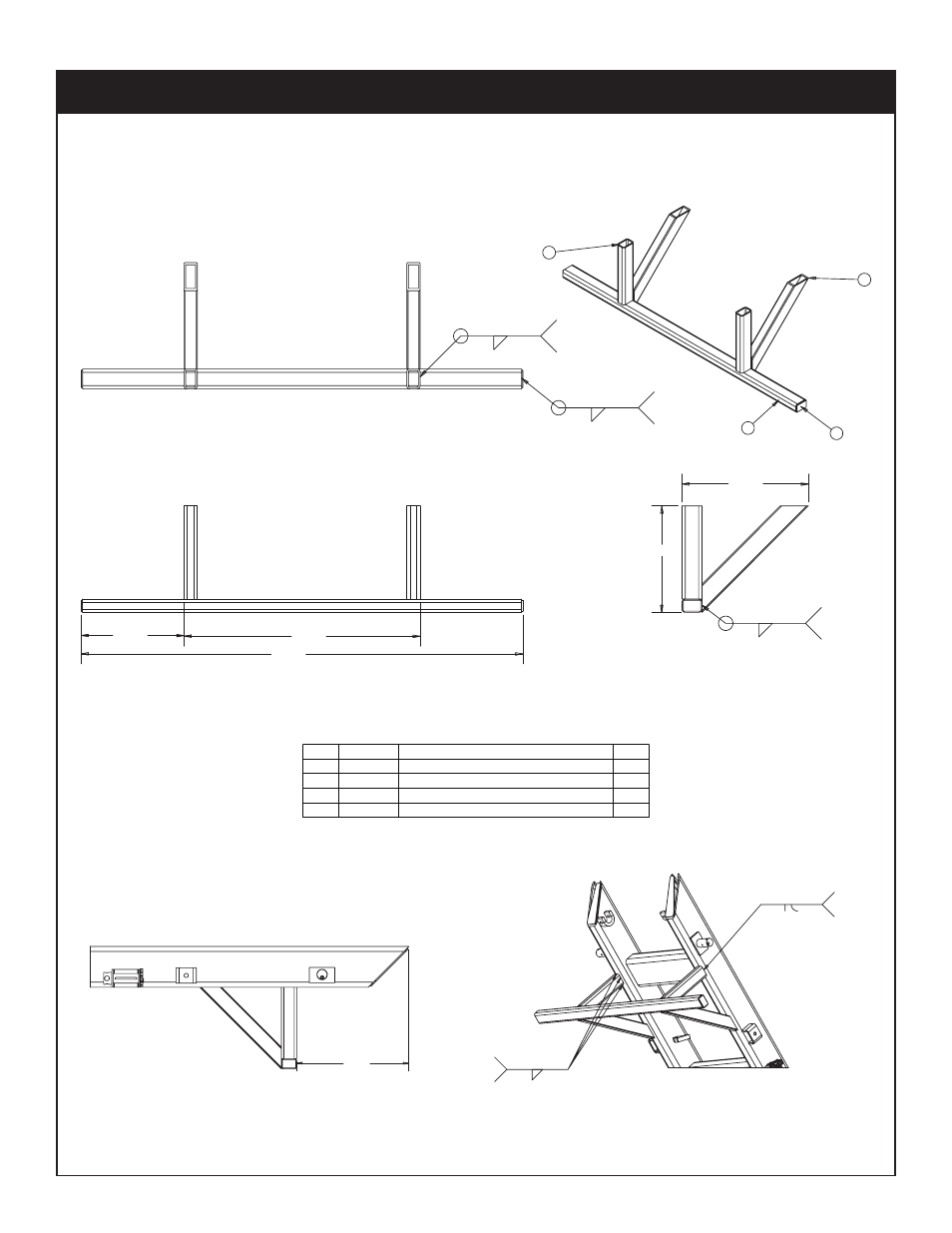

ICC Bumper Weldment - PN 45574
