Stellar Industries SI-60 - Manual (Page 75)

69 Assembly Drawings 69
14
20
17
10
8
9
18
13
9
19
12
11
11
15
4 3
16
12
19
3
1
6
5
2
7
12
19
ITEM PART DESCRIPTION QTY.
1 0335 CAP SCR 0.38-16X1.25 HHGR5 8
2 0340 WASHER 0.25 FLAT 8
3 0346 WASHER 0.38 FLAT 16
4 0347 NUT 0.38-16 HH NYLOC 8
5 0480 CAP SCR 0.25-20X1.00 HHGR5 4
6 0533 NUT 0.25-20 HH 4
7 0654 NUT 0.25-20 WING 4
8 2320 LICENSE PLATE LIGHT ROUND 430 W 1
9 10334 GROMMET 4.00 ROUND LAMP (PETERSON) 7
10 11693 CAP SCR 0.63-11X1.75 HHGR8 6
11 13143 LIGHT STOP/TURN/TAIL 4 RND LED 4
12 13145 LIGHT CLEARANCE RED RND 2 LED 7
13 18742 BACKUP ALARM ACORN 97 DECIBAL 1
14 24868 NUT 0.63-11 HHGR8 NYLOCK ZY 6
15 27626 LIGHT BACKUP LED 62391 2
16 45039PC PLATE MUD FLAP BACKING 43"FENDER KP 2
17 45812 BUMPER WLDMT STANDARD KP60 1
18 C0073 TERML 16-14 BLUE BUTT WATER TIGHT 2
19 C4862 GROMMET FOR 2 CLEARANCE 30700 7
20 C5902 WASHER 0.63 SAE FLAT YELLOW GR8 12
PN 45887

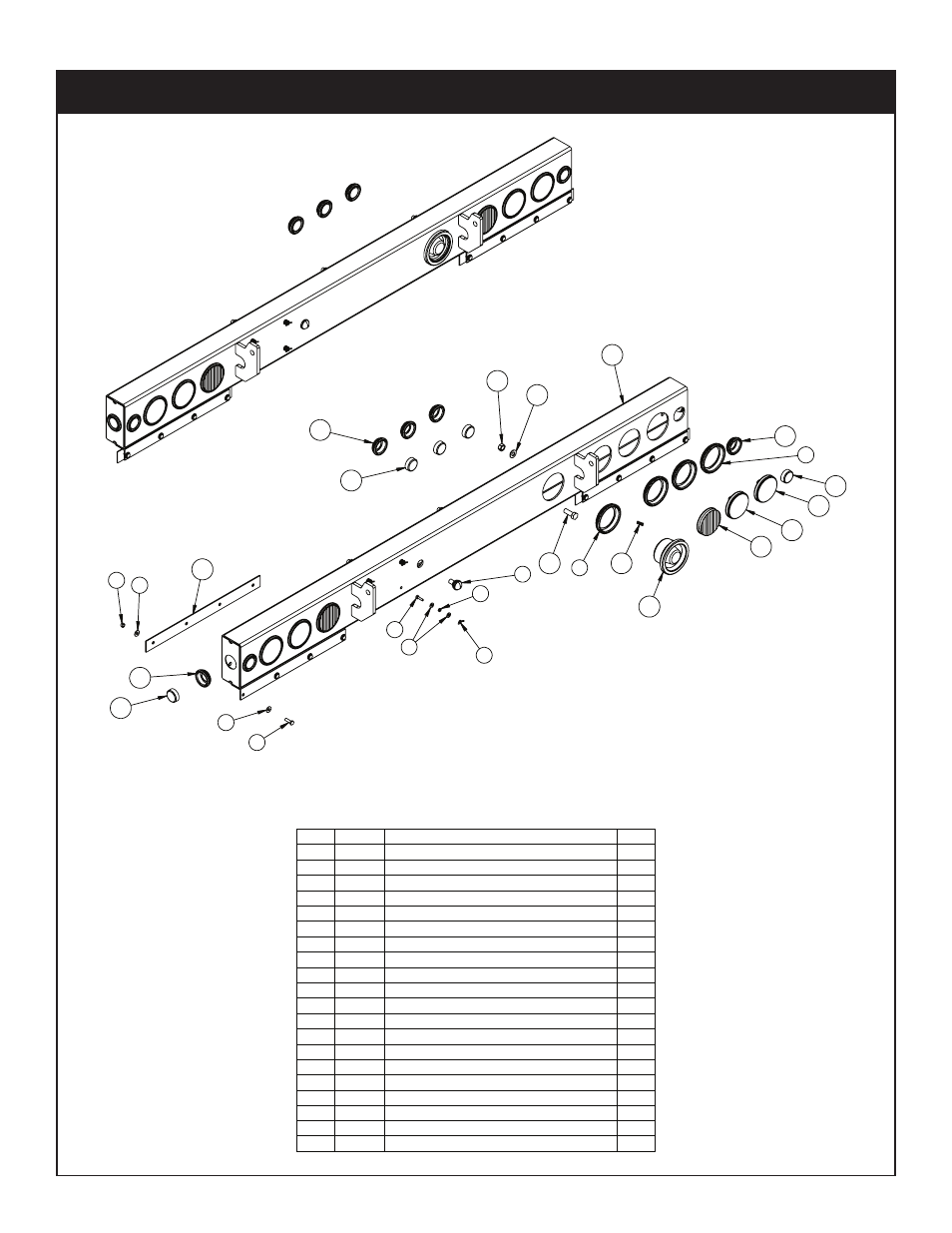

Standard Lighted Bumper - PN 45887
