60 Stellar Cable Hoist Owner’s Manual
PN 55261
0.25
TYP. 2
0.25
TYP. 4
0.25
TYP. 4
0.25
TYP. 2
0.19 1.00
TYP. 4
ITEM PART DESCRIPTION QTY.
1 49997 TUBE 5.00X3.00X0.38WX56.00 1
2 49995ZP PIN WLDMT CYL MNT CABLE75 2
3 0500 CAP SCR 0.50-13X1.75 HHGR5 2
4 C6106 NUT 0.50-13 HHGR5 NYLOC 4
5 0352 WASHER 0.50 USS FLAT ZINC 2
6 55262 CYLINDER ASM 6.00X72.00 LIFT CABLE75 MNT 2
7 45756PC COLLAR 2.51X3.50X1.50 W/HOLE 2
8 1593 MACHY WASHER 2.50ID 10GA 2
9 0507 CAP SCR 0.50-13X4.50 HHGR5 2
10 52889PC CYL MNT WLDMT SS SI75 HP OFFSET 1
11 52892PC CYL MNT WLDMT SS SI75 HP 1
12 1583 MACHY WASHER 2.50ID 14GA 2
11
1
10
8
7 4
9
2
4
5 3
6
NOTE: USE REAR HOLE
TO BOLT CYLINDER
PIN WLDMT
12

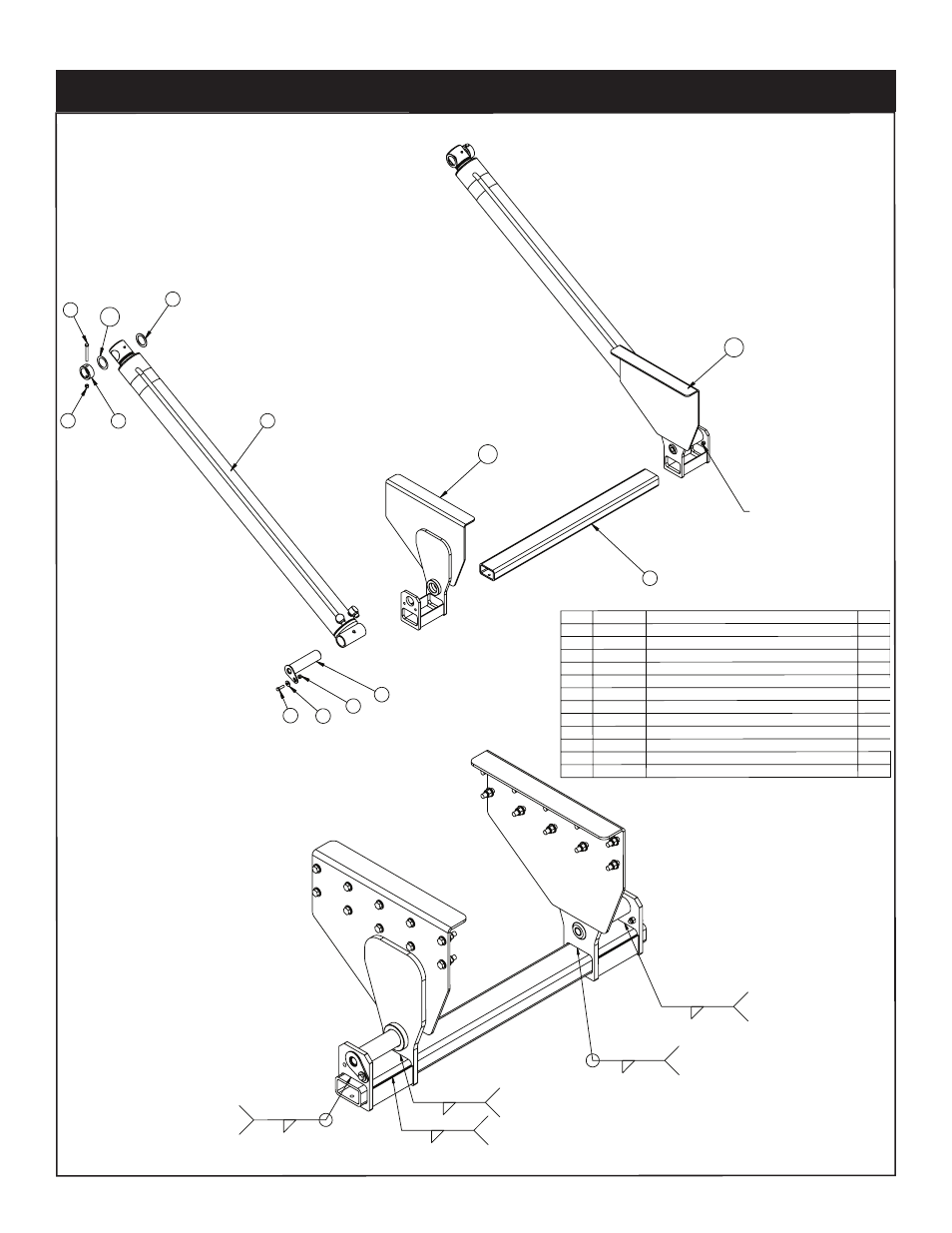

Mounting Kit (Forward Mount) - PN 55261
