Stellar Industries SI-60 - Manual (Page 63)

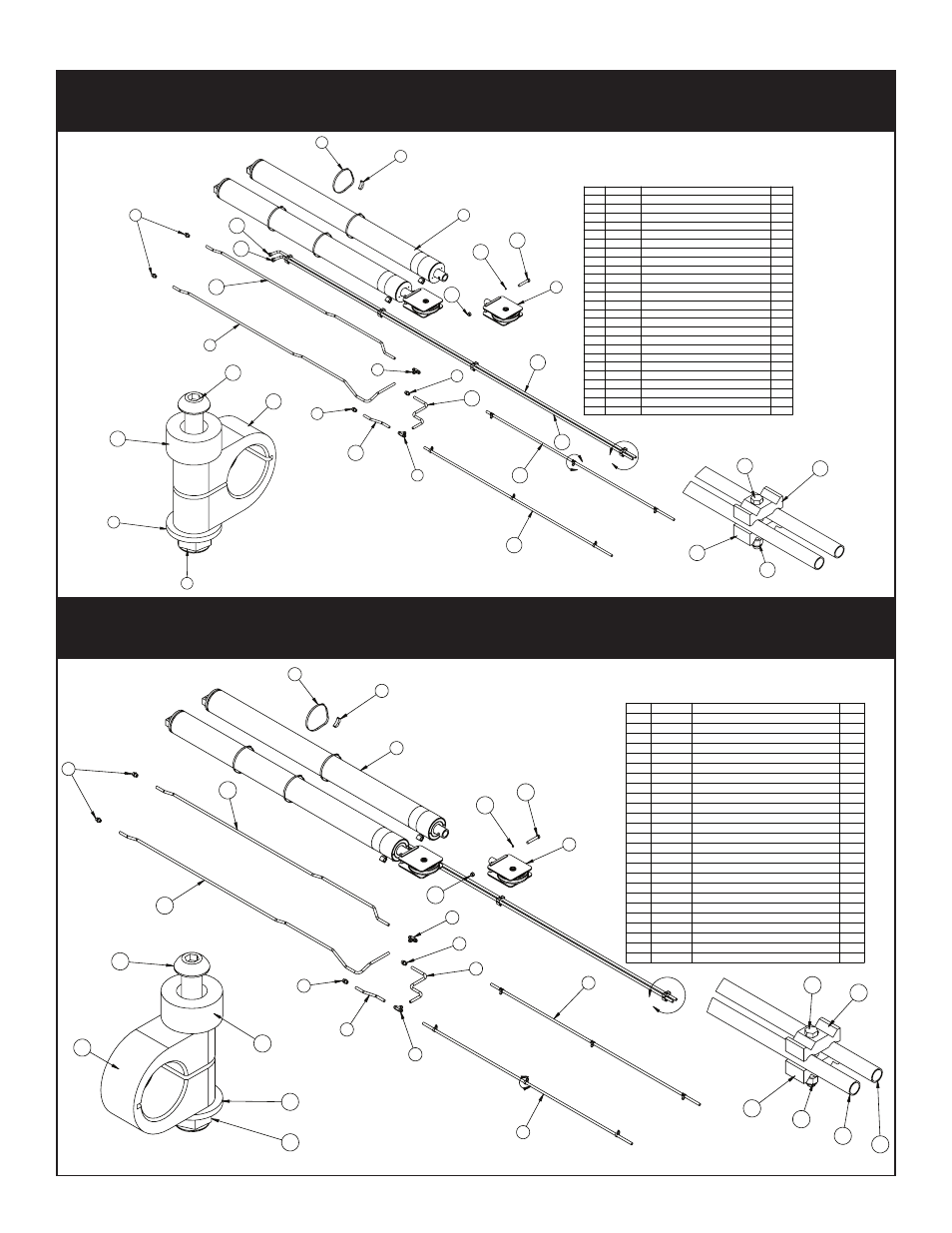

57 Assembly Drawings 57
PN 60219
A
B
5
6
1
2
8
9
10
7
13
13
8
12
7
11
8
18
14
15
21
22
25
25
17
19
3
4
16
20 24
20
23
ITEM PART DESCRIPTION QTY.
1 60005 CYLINDER 7.00X80.00 SI 2
2 45114 REEVING SHEAVE WLDMT KP60 2
3 0340 WASHER 0.25 USS FLAT ZINC 6
4 0333 NUT 0.25-20 HHGR5 NYLOC 6
5 19371 HOSE CLAMP 7.13-10.00 5416K43 4
6 18701 CLAMP PORT TUBE ZR518 4
7 45585 FTG 12-12-12-MJ-MJ-MJ TEE 2
8 C4498 FTG 12-12 MJ-MORB STRAIGHT 4
9 58391 TUBE ASM 0.75X96.82 JIC YZ 1
10 58392 TUBE ASM 0.75X94.94 JIC YZ 1
11 58389 TUBE ASM 0.75X11.50 JIC YZ 1
12 58390 TUBE ASM 0.75X14.06 JIC YZ 1
13 45590 TUBE ASM 0.75X93.00 JIC 24-429 YZ 2
14 2828 NUT 0.75-10 HH NYLOC 2
15 c1592 ZERK 1/8 NPT STRAIGHT 2
16 60777 HOSE CLAMP LN 4190 PA 6
17 22184 CAP SCR 0.25-20X2.25 BTNHD SS 6
18 45623 CAP SCR 0.75-10X4.50 HHGR5 2
19 27813 COLLAR 0.38X0.75X0.38 UHMW 6
20 8621 CLAMP HOSE/TUBE AG-3 8
21 45593 TUBE ASM 0.75X176.00 JIC KP6024-462 YZ 1
22 45592 TUBE ASM 0.75X179.00 JIC KP6024-463 YZ 1
23 0347 NUT 0.38-16 HHGR5 NYLOC 4
24 C0949 CAP SCR 0.38-16X3.00 HHGR5 4
25 42921 FTG 12 MJ PLUG 2
PN 60221
A
B
3
4
1
2
6
13
14
5
9
9
6
8
5
7
6
11
10
12
18
16
15
17
24
21
19
21
20
22
23
ITEM PART DESCRIPTION QTY.
1 45349 CYLINDER 7.00X80.00 KPAC 2
2 45114 REEVING SHEAVE WLDMT KP60 2
3 19371 HOSE CLAMP 7.13-10.00 5416K43 4
4 18701 CLAMP PORT TUBE ZR518 4
5 45585 FTG 12-12-12-MJ-MJ-MJ TEE 2
6 C4498 FTG 12-12 MJ-MORB STRAIGHT 4
7 58389 TUBE ASM 0.75X11.50 JIC YZ 1
8 58390 TUBE ASM 0.75X14.06 JIC YZ 1
9 45590 TUBE ASM 0.75X93.00 JIC 24-429 YZ 2
10 2828 NUT 0.75-10 HH NYLOC 2
11 45623 CAP SCR 0.75-10X4.50 HHGR5 2
12 c1592 ZERK 1/8 NPT STRAIGHT 2
13 60324 TUBE ASM 0.75X106.81 JIC YZ 1
14 60323 TUBE ASM 0.75X104.94 JIC YZ 1
15 0333 NUT 0.25-20 HHGR5 NYLOC 6
16 0340 WASHER 0.25 USS FLAT ZINC 6
17 60777 HOSE CLAMP LN 4190 PA 6
18 22184 CAP SCR 0.25-20X2.25 BTNHD SS 6
19 C0949 CAP SCR 0.38-16X3.00 HHGR5 4
20 0347 NUT 0.38-16 HHGR5 NYLOC 4
21 8621 CLAMP HOSE/TUBE AG-3 8
22 45593 TUBE ASM 0.75X176.00 JIC KP6024-462 YZ 1
23 45592 TUBE ASM 0.75X179.00 JIC KP6024-463 YZ 1
24 27813 COLLAR 0.38X0.75X0.38 UHMW 6
25 42921 FTG 12 MJ PLUG 2
Reeving Cylinder Assembly - PN 60221
194 Models
Reeving Cylinder Assembly - PN 60219
174 and 182 Models
