Stellar Industries SI-60 - Manual (Page 61)

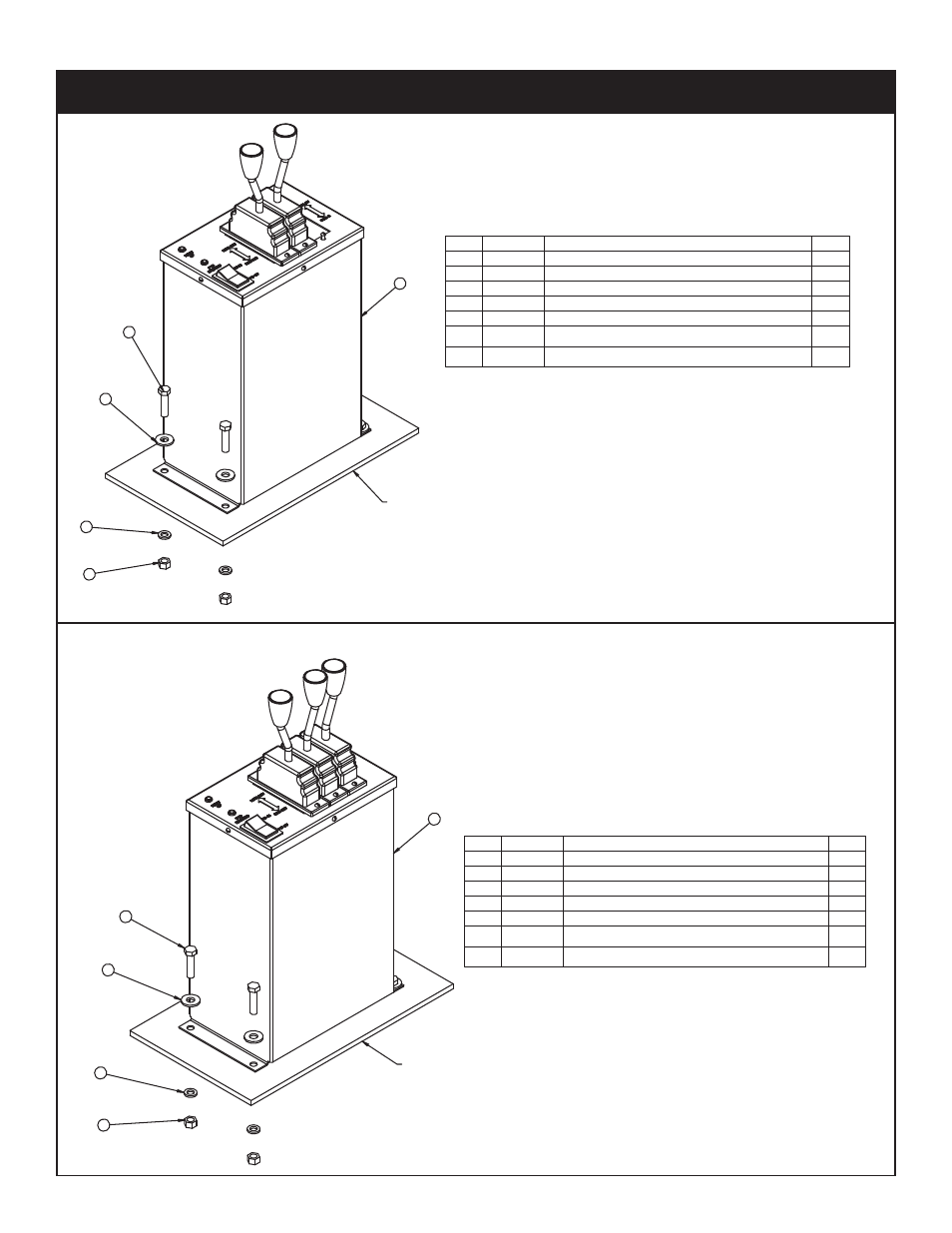

55 Assembly Drawings 55
. Y T Q N O I T P I R C S E D T R A P M E T I
1 45307 CONTROL TOWER ASM 2SECT AIR K-PAC 1
2 0345 CAP SCR 0.38-16X1.50 HHGR5 4
3 0346 WASHER 0.38 USS FLAT ZINC 4
4 0523 WASHER 0.38 LOCK 4
5 0535 NUT 0.38-16 HHGR5 4
6 45687 ELBOW ADAPTER MALE SWIVEL (NOT SHOWN) 4
7 45159 AIR ACTUATOR (V42) 1/8-NPT KPAC (NOT SHOWN) 2
2 Section Air
PN 45833
3 Section Air
PN 46638
2
3
4
1
5
CAB FLOOR
. Y T Q N O I T P I R C S E D T R A P M E T I
1 45244 CONTROL TOWER ASM 3SECT AIR K-PAC 1
2 0345 CAP SCR 0.38-16X1.50 HHGR5 4
3 0523 WASHER 0.38 LOCK 4
4 0346 WASHER 0.38 USS FLAT ZINC 4
5 0535 NUT 0.38-16 HHGR5 4
6 45159 AIR ACTUATOR (V42) 1/8-NPT KPAC (NOT SHOWN) 3
7 45687 ELBOW ADAPTER MALE SWIVEL (NOT SHOWN) 6
3
5
1
2
4
CAB FLOOR
Air Controllers Assembly 2
