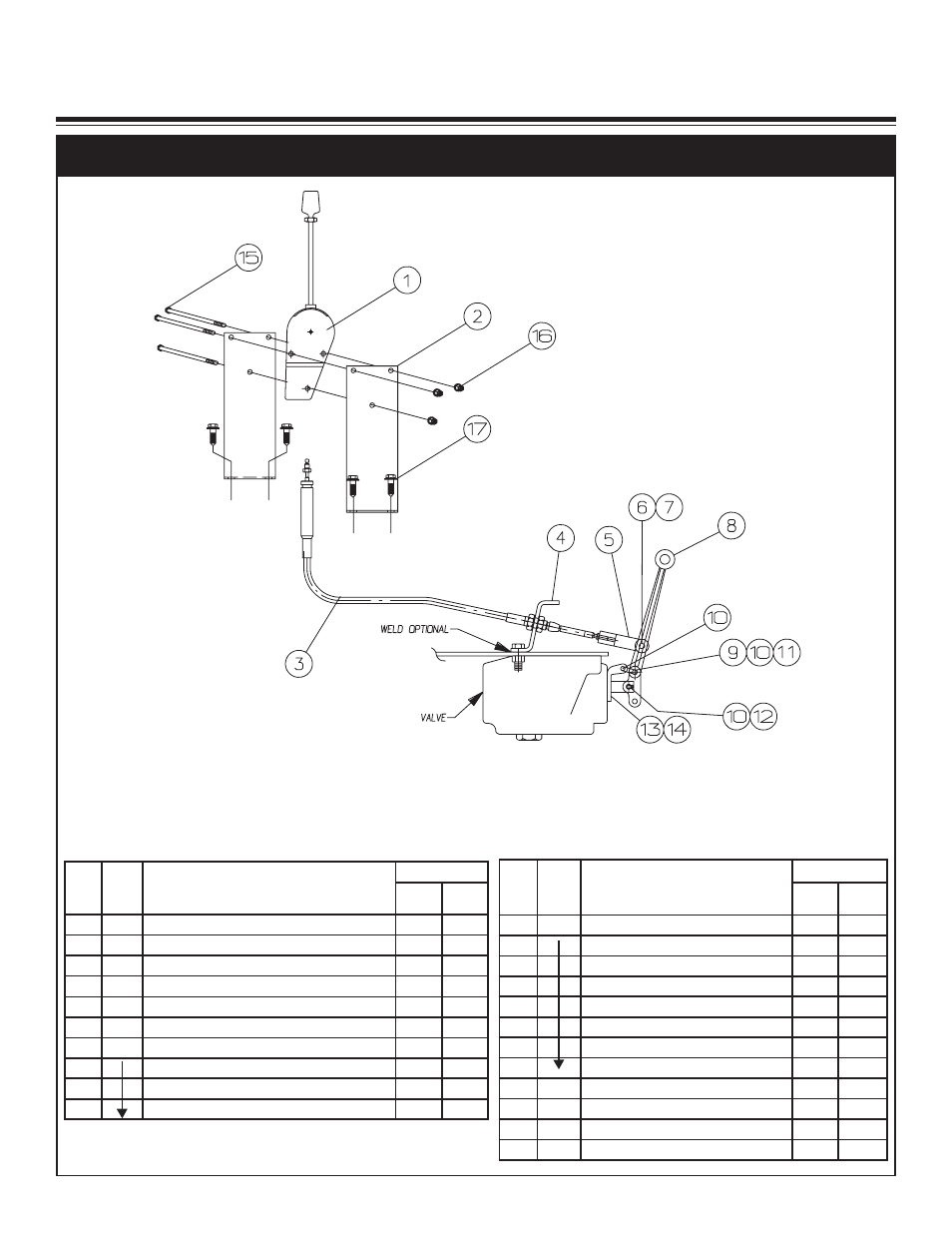

53 Assembly Drawings 53
Item PN Description
Qty.
2
SPOOL
3
SPOOL
1 46734 CONTROLLER STR NO LOCK WESCON KP60 2 3
2 45050 CONTROL MOUNT 2 SPOOL CONTROL 2 2
3 46658 CONTROL CABLE 108 IN WESCON KPAC 2 3
46713 CONTROL CABLE 156 IN WESCON KPAC 2 3
47284 CONTROL CABLE 252 IN WESCON KP60 2 3
4 46656 PLATE BULKHEAD CONTROL CABLE KP60 1 1
46291 CABLE CONN. KIT FOR V20 KPAC 2 3
5 CLEVIS (WITH 3/8” HOLE) 2 3
6 PIN 2 3
7 COTTER PIN 2 3
Item PN Description
Qty.
2
SPOOL
3
SPOOL
45798 HANDLE HYDRAULIC KIT KPAC 2 3
8 VALVE HANDLE 2 3
9 LINK 2 3
10 COTTER PIN 6 9
11 LINK PLATE 2 3
12 PIN 2 3
13 HANDLE BRACKET 2 3
14 1/4NCX5/8” HEX SOCKET SCREW 4 6
15 0439 CAP SCR 0.25-20X4.00 HHGR5 3
C0916 CAP SCR 0.25-20X6.00 HHGR5 3
16 0333 NUT 0.25-20 HHGR5 NYLOC 3 3
17 46733 SCREW 0.38X1.50 THREAD CUTTING 3 3
Cable Controls
Chapter 7 - Assembly Drawings
