48 Stellar Cable Hoist Owner’s Manual
ITEM PART DESCRIPTION QTY.
1 45585 FTG 12-12-12-MJ-MJ-MJ TEE 2
2 64064 HOSE 0.75(471TC-06-39-12-12-12-
60)
2
3 64065 HOSE 0.75(471TC-06-39-12-12-12-
70)
2
4 45948 U BOLT 0.31X1.50X2.25 RD 4
5 45143PC PLATE 0.25X3.00X5.75 1
6 3381PC
HOSE CLAMP BOLT ON 1210
CRANE
2
7 0343 WASHER 0.31 USS FLAT ZINC 10
8 0487 CAP SCR 0.31-18X1.75 HHGR5 2
9 0342 NUT 0.31-18 HHGR5 NYLOC 2
10 46111 HOSE 0.75x45 JIC F KPAC 2

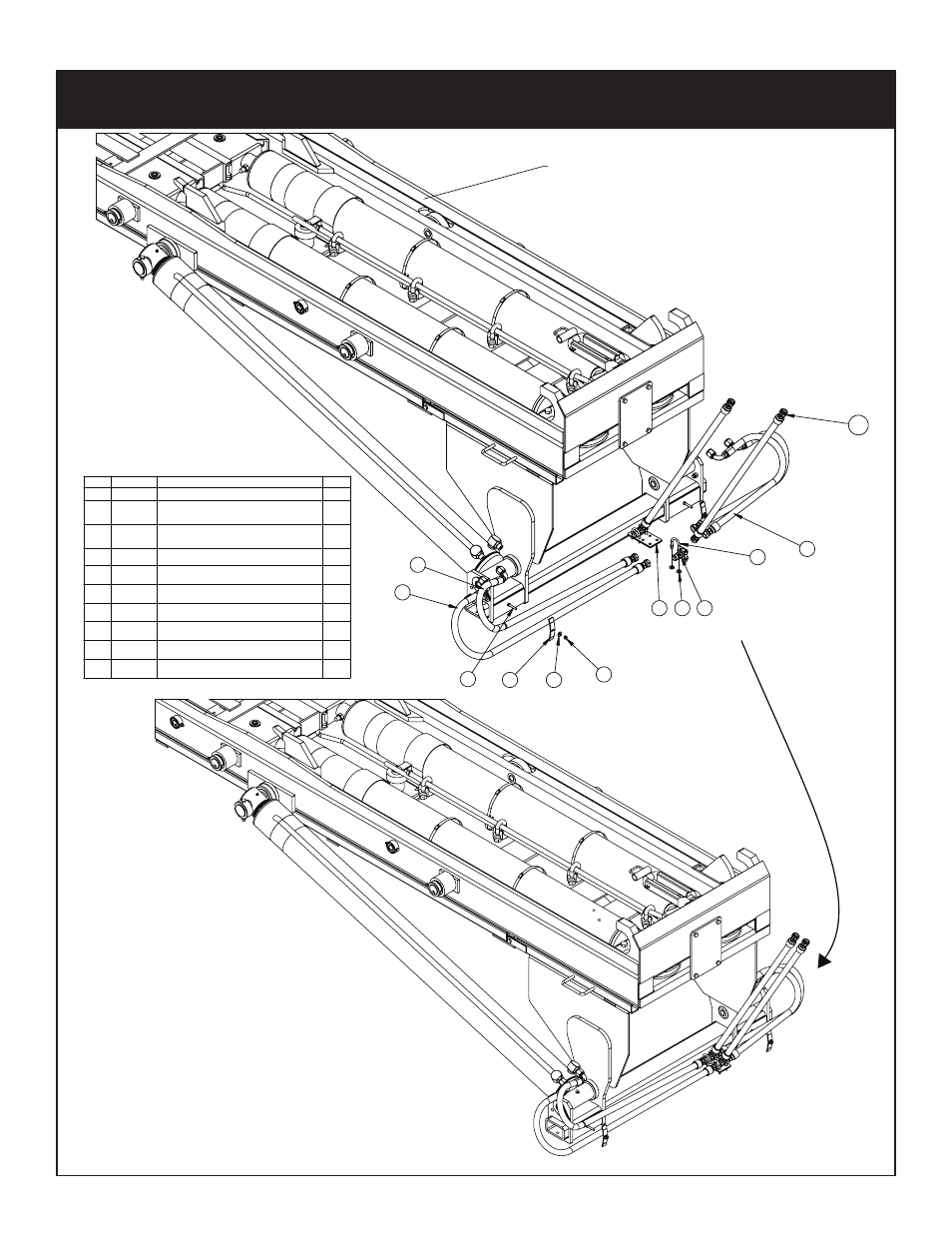

NOTE: CABLE HOIST SHOWN AS REFERENCE
3
3
5
2
1
9
7 6 8
7
10
4
Part 2
Reverse Mount Lift Cylinder Mounting Kit - PN 56094
