26 Stellar Cable Hoist Owner’s Manual
Note: Refer to the illustrations on the previous pages for dimensions.
A. Position the hoist sub-frame onto truck frame, aligning and squaring up with truck
frame. Remove the tacked-on side gussets. Clamp the subframe to the truck frame
and then heavily tack in place.
B. Continue to fully weld the hoist rear apron to the truck frame. Weld a 100% 3/8” weld
on both sides of truck frame to hoist sub-frame:

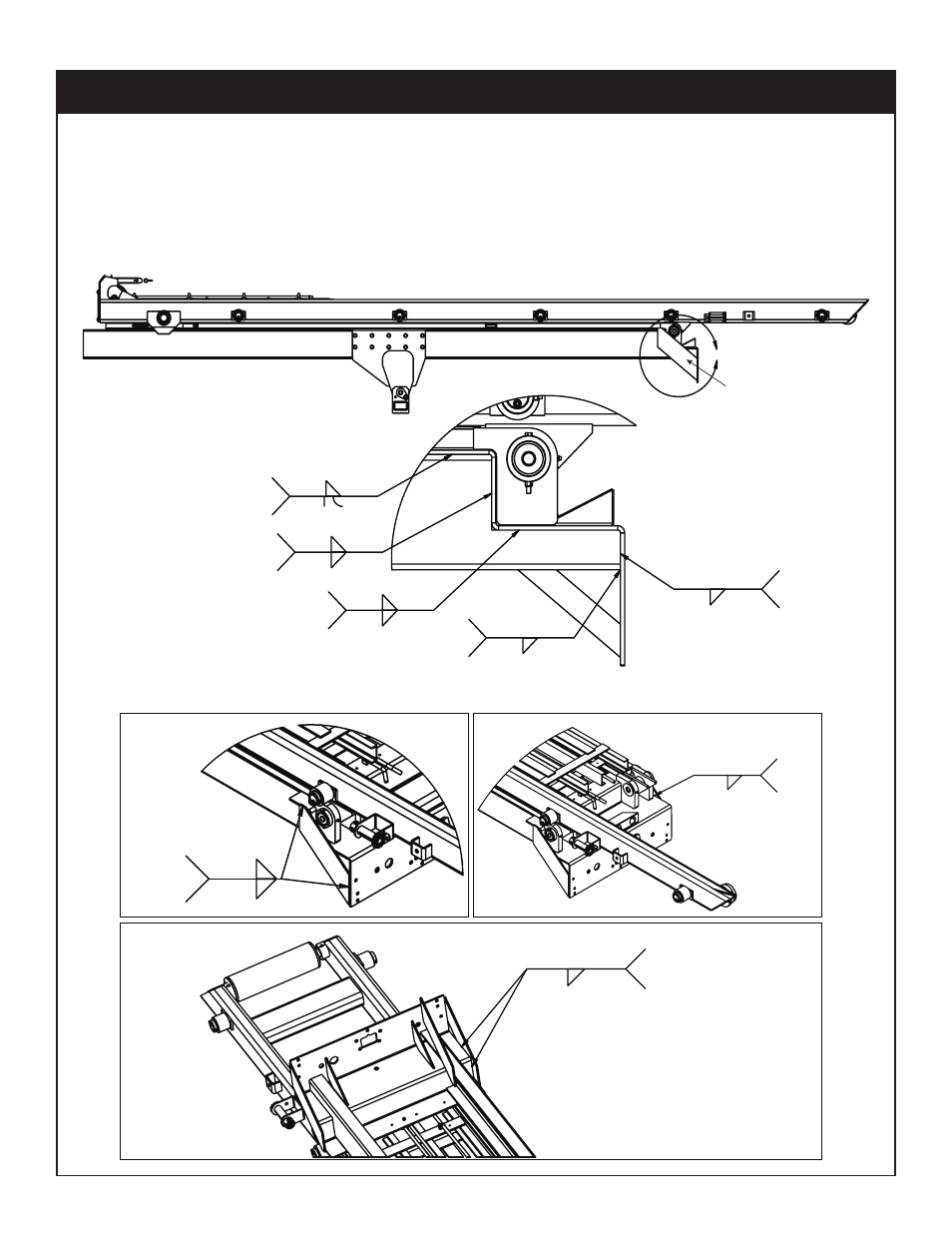

C. Weld the gussets onto the hoist apron as shown below:
Step 2: Mount Hoist
A
DETAIL A
SCALE 1 : 8
.38
(.25)
W=.38
TYP. (2)
.38
TYP. (2)
.38 6
.38
TYP. (2)
.38
.38
TYP. (2)
.38
TYP. (2)
Remove Side Gussets
(Gussets come tacked onto the base)
.19
.19
TYP. (2)
.19 3
TYP. (2)
.19 3
TYP. (2)
