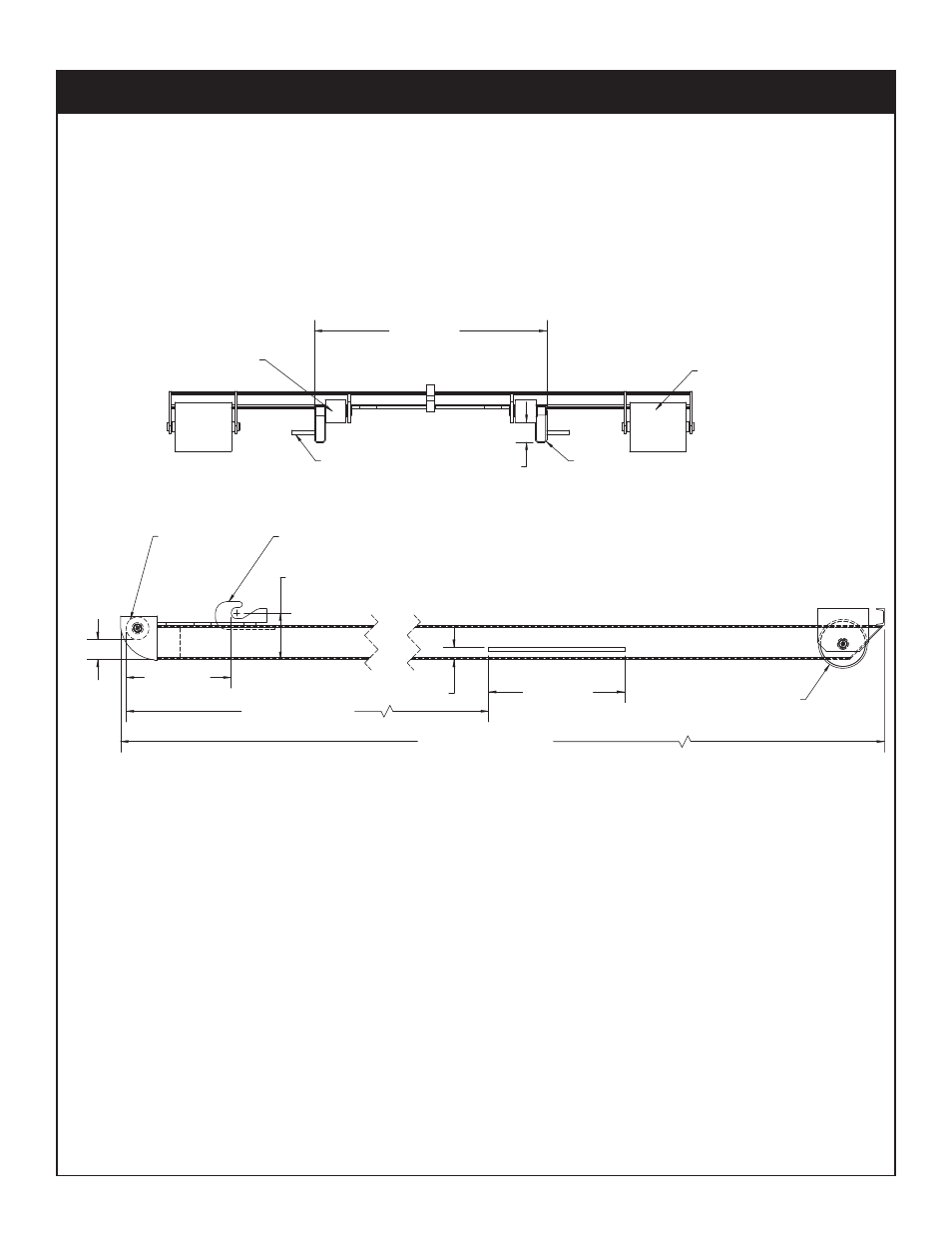

Container Subframe
PICKUP HOOK
SIDE VIEW
LEAD-IN-ROLLER
GROUND WHEEL
MIN. 6.00
MAX. 10.50
18.50 MIN.
*SEE NOTE*
MAX. 24.00 MAX. 2.13
MAX. 3.63
MIN. 3.38
193.00
*LONG RAIL LENGTH*
TYPICAL REAR
GROUND WHEEL
GUIDE ROLLER
HOLDDOWN
2" X 6" STANDARD
STRUCTURAL TUBING MAX. 3.63
MIN. 3.38
MAX. 41.00
FRONT OF LEAD-IN-ROLLER TO THE FRONT OF THE HOLDDOWN.
IF LONG RAIL LENGTH IS GREATER THAN OR EQUAL TO 18FT. AND LESS THAN
24FT, REAR HOLDDOWN DIMENSION IS 193.00 IN. PLUS 1 IN. MINUS 0 IN. FROM
FRONT VIEW
*NOTE*
IF LONG RAIL LENGTH IS GREATER THAN OR EQUAL TO 12FT. AND LESS THAN
18FT, REAR HOLDDOWN DIMENSION IS 147.50 IN. PLUS 1 IN. MINUS 0 IN. FROM
FRONT OF LEAD-IN-ROLLER TO THE FRONT OF THE HOLDDOWN.
NOTE:
ALL DIMENSIONS ARE IN ACCORDANCE WITH
ANSI Z245.60 TYPE "U" CONTAINER REQUIREMENTS
