Stellar Cable Hoist Owner’s Manual

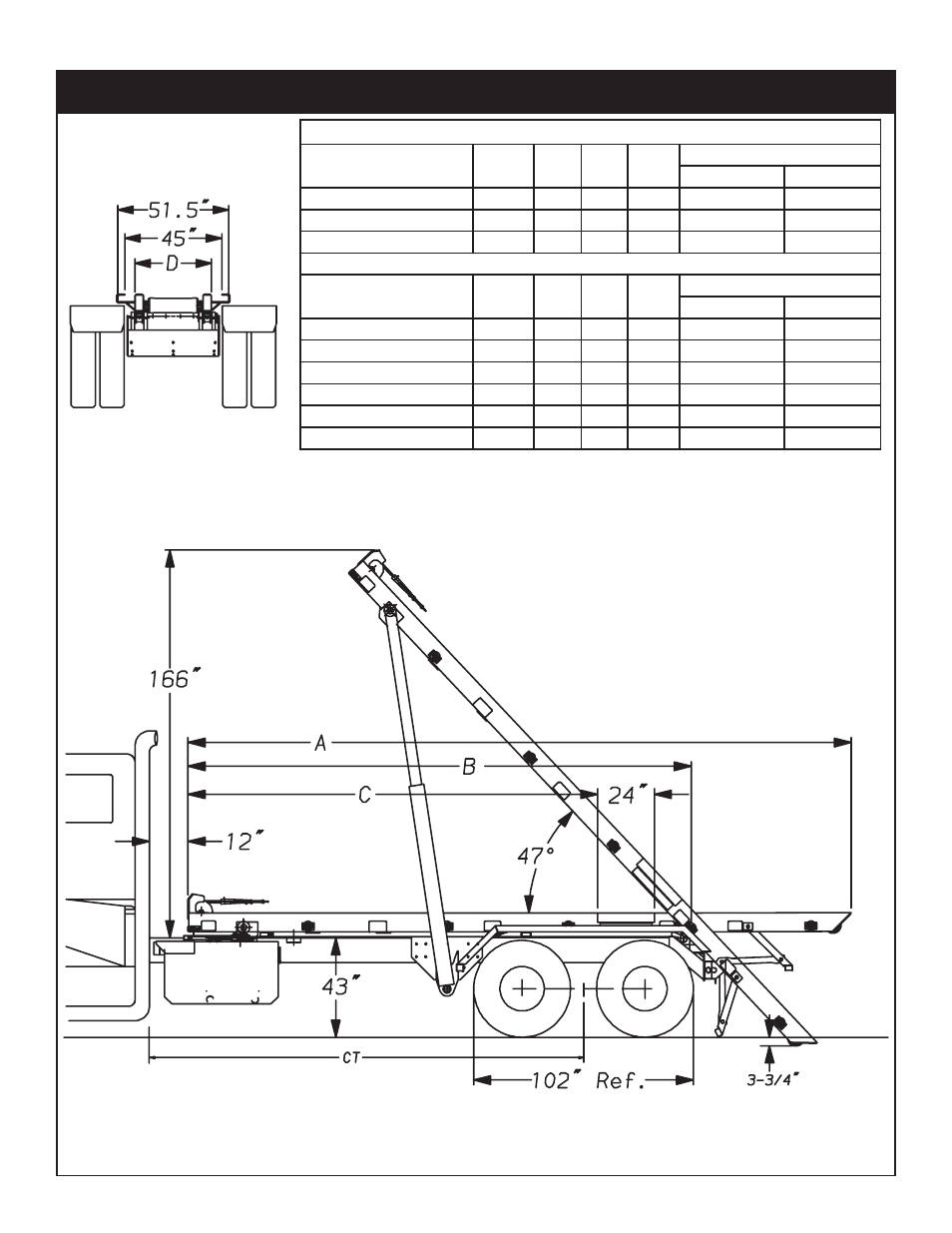

Cable Hoist Dimensions
*Autotarper installation requires 12” of unobstructed space behind the truck cab.
Specifications Chart
Models
A
B
C
D
CT (Cab to Trunnion)
w/o Autotarper w/ Autotarper
SI-60-174 OR/IO
281”
210”
174”
35.5”
174”
180”
SI-60-182 OR/IO
289”
218”
174”
35.5”
182”
188”
SI-60-194 OR/IO
301”
230”
186”
35.5”
194”
200”
Extended Tail Models
A
B
C
D
CT (Cab to Trunnion)
w/o Autotarper w/ Autotarper
SI-60-174 ORX
237”
210”
174”
35.5”
174”
180”
SI-60-182 ORX
245”
218”
174”
35.5”
182”
188”
SI-60-194 ORX
257”
230”
186”
35.5”
194”
200”
SI-60-174 IOX
278.5”
210”
174”
35.5”
174”
180”
SI-60-182 IOX
286.5”
218”
174”
35.5”
182”
188”
SI-60-194 IOX
298.5”
230”
186”
35.5”
194”
200”
*
